3907S - csatlakozó, 6.3X0.8mm sárga préselhető 4-6mm² sarus csatlakozó FASTON .250 - VOGT

0.1044 €+ VAT
0.1325 € incl. VAT

3907S - csatlakozó, 6.3X0.8mm sárga préselhető 4-6mm² sarus csatlakozó FASTON .250 - VOGT

Name: 3907S - csatlakozó, 6.3X0.8mm sárga préselhető 4-6mm² sarus csatlakozó FASTON .250 - VOGT
Brand: VOGT
SKU: 53-28-88
Price: 0.1325 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 991 pcs

0.1044 €+ VAT
0.1325 € incl. VAT

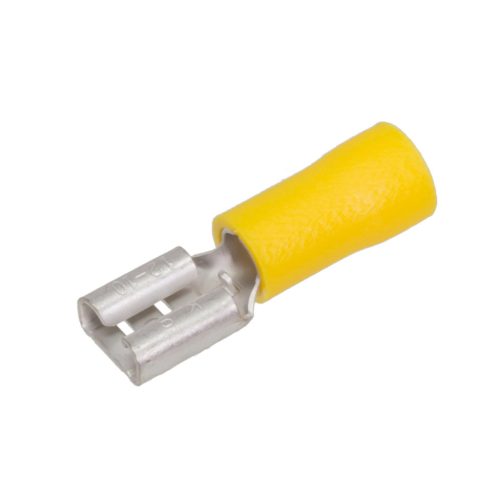

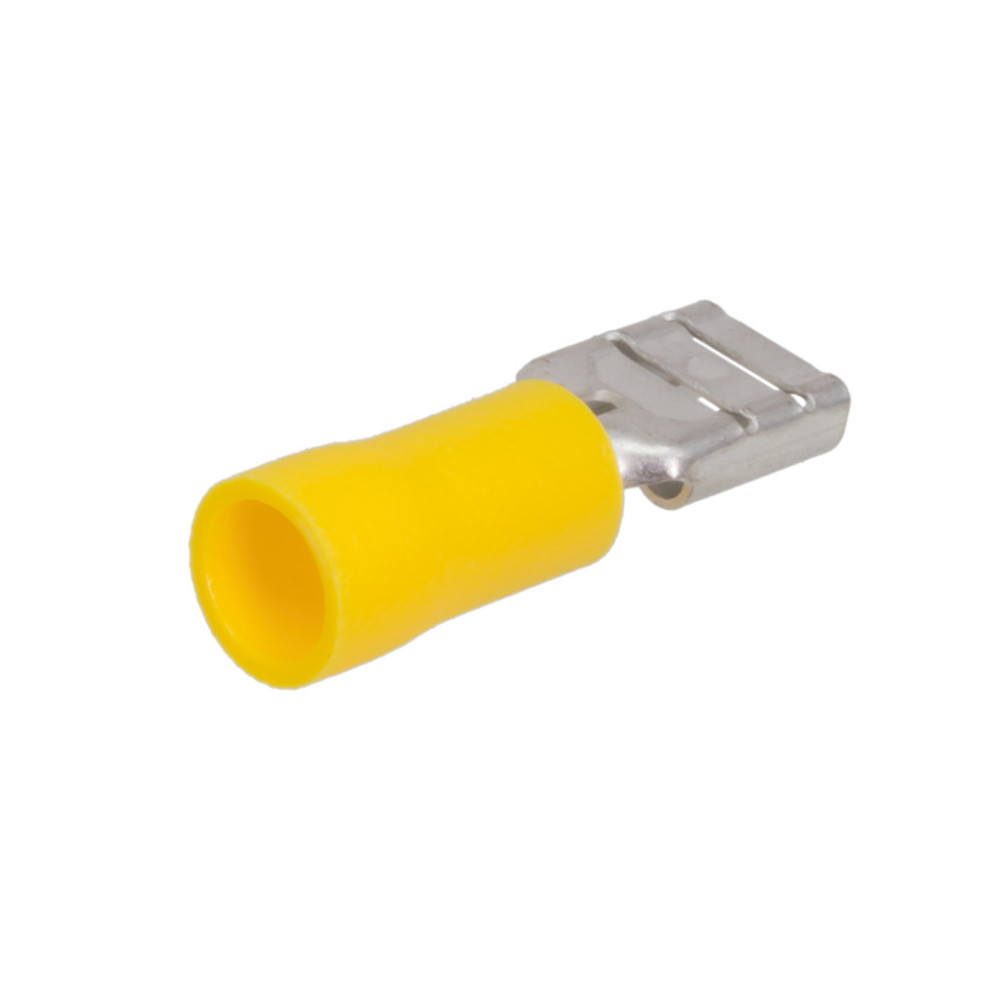

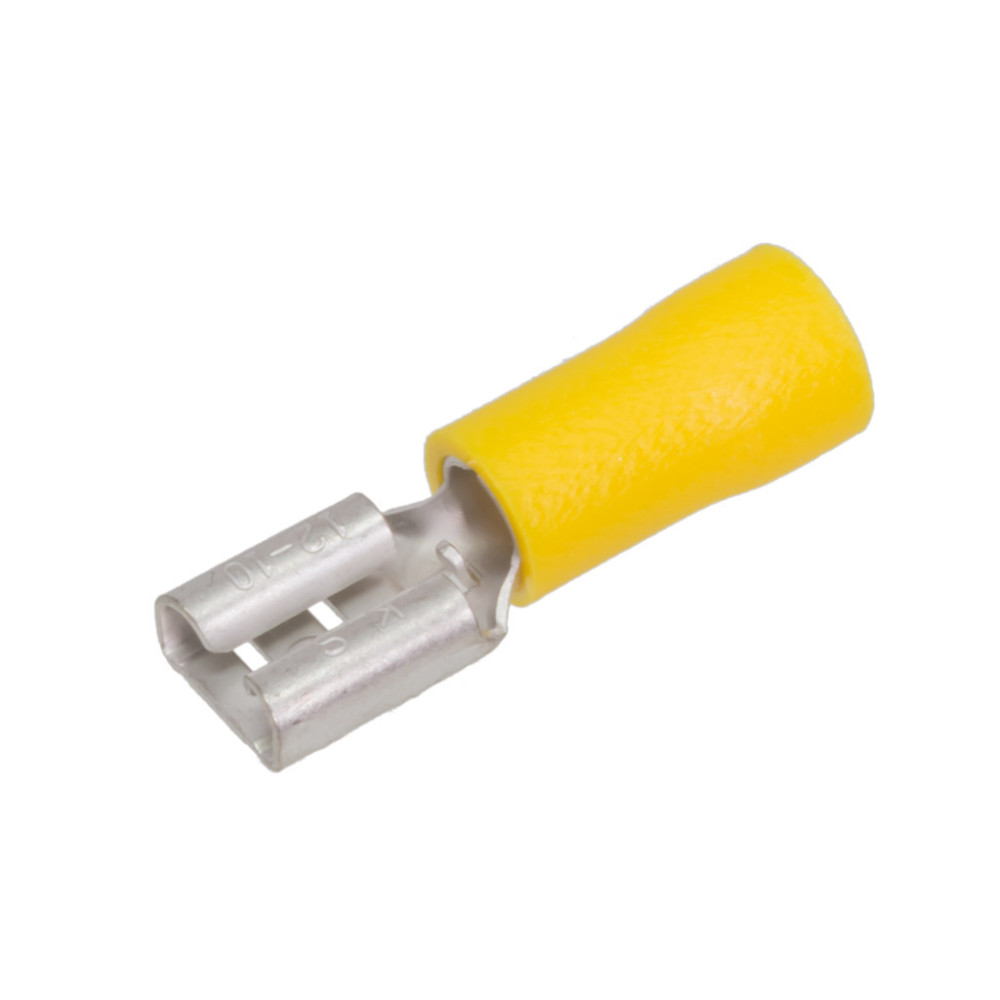

Connector, 6.3x0.8 mm Yellow Crimp 4-6mm² Quick Connect type Connector FASTON

Manufacturer code:

3907S

Manufacturer:

VOGT

Datasheet:

Rc03_3c_f1b.pdf

Group:

Crimp Terminal - 6,3 mm Quick Connect

Component Family:

Connector 6.3mm Quick-connect

Product Range:

390

Case:

mountable

Termination Type:

Solderable/crimp

Number of Pins:

Dimension Parameters:

6.3x0.8mm

Continual Current [A], Max.:

24 A

Connector Configuration:

Quick-connect terminal, insulated, yellow

Connector Type:

Socket, swinging type

Cable Diameter [mm], Max:

AWG10

Cable Diameter [mm], Min.:

AWG12

Contact Material:

Brass

Contact Plating:

Tinned

Insulator Material:

PVC

ROHS:

Yes

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

100

0,07 €

0,09 €

Our Warehouse

991 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Weight:

1.5 g/pcs
