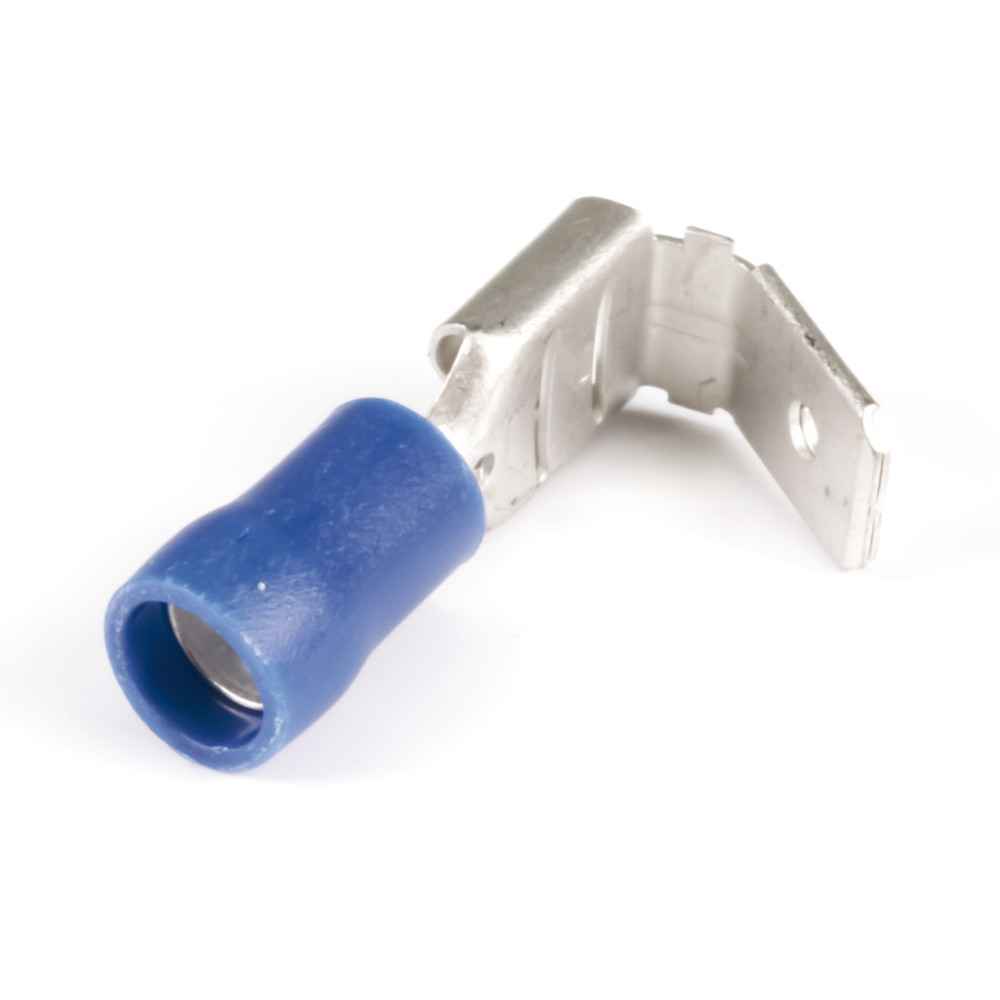

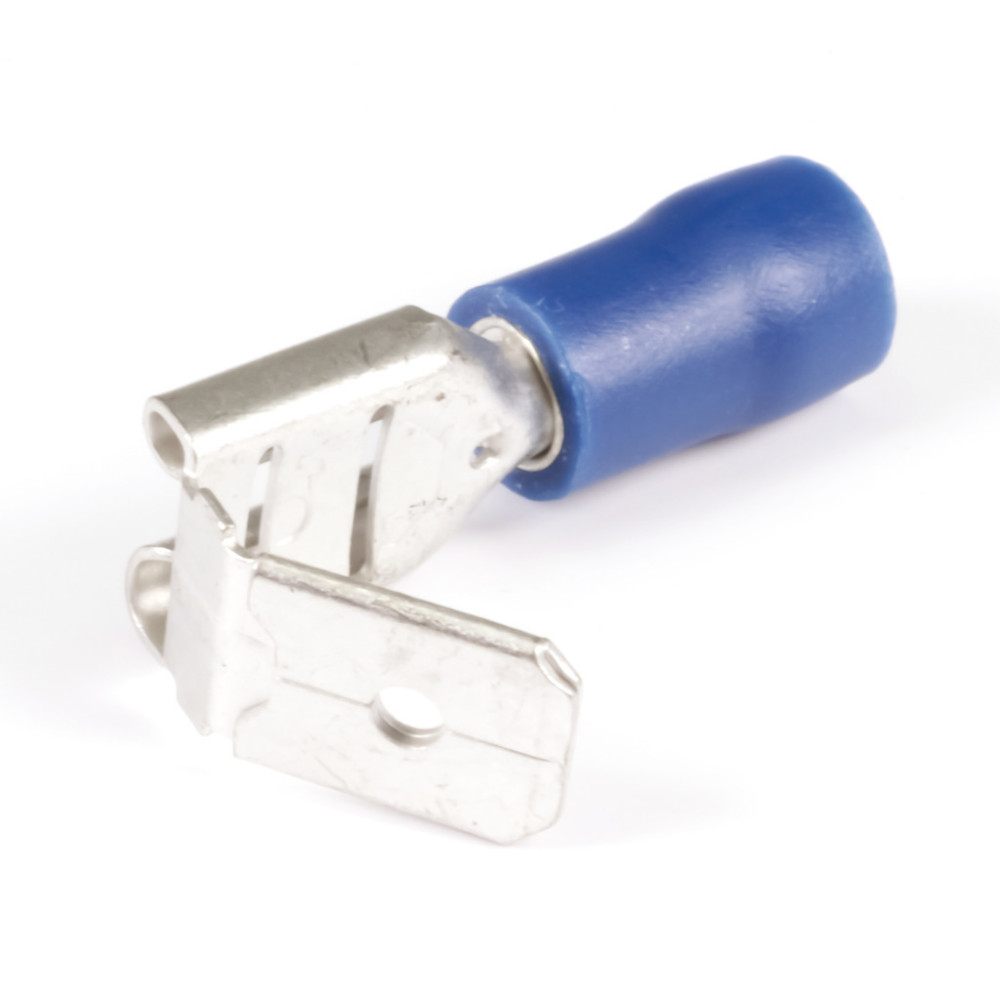

6.3 x 0.8 mm Double type Crimp Blue Quick Connect FASTON .250 - FCI - 3926

0.214 €+ VAT
0.2717 € incl. VAT

6.3 x 0.8 mm Double type Crimp Blue Quick Connect FASTON .250 - FCI - 3926

The picture is for illustration purposes only. Please read the product description!

In stock 270 pcs

0.214 €+ VAT
0.2717 € incl. VAT

Connector, Double type Crimp 2.5mm² Blue Quick Connect type Connector

Manufacturer code:

3926

Manufacturer:

FCI

Datasheet:

Vogt_63_d.pdf

Group:

Crimp Terminal - 6,3 mm Quick Connect

Component Family:

Connector 6.3mm Quick-connect

Product Range:

Case:

mountable

Termination Type:

Solderable/crimp

Number of Pins:

Dimension Parameters:

6.3x0.8mm

Standard:

DIN46245/3

Continual Current [A], Max.:

15 A

Connector Type:

Socket + plug for cable

Cable Diameter [mm], Max:

2.5 mm²

Cable Diameter [mm], Min.:

1.5 mm²

Contact Material:

Brass

Contact Plating:

Tinned

Insulator Material:

PVC

Operating Temperature Min. [°C]:

-10 °C

Operating Temperature Max. [°C]:

+75 °C

ROHS:

Yes

Connector Configuration:

Quick-connect terminal, insulated, red

Quick-connect terminal, insulated, blue

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

100

0,15 €

0,19 €

Our Warehouse

270 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_L_046.pdf

Weight:

1.56 g/pcs
