LiYCY (TP) 4x2x0.25 - LAPPKABEL - 0035802

2.9761 €+ VAT
3.7797 € incl. VAT

LiYCY (TP) 4x2x0.25 - LAPPKABEL - 0035802

Name: LiYCY (TP) 4x2x0.25 - LAPPKABEL - 0035802
Brand: LAPPKABEL
SKU: 55-03-22
Price: 3.7797 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

Stripping Tools Cable Ties

In stock 192 meter

2.9761 €+ VAT
3.7797 € incl. VAT

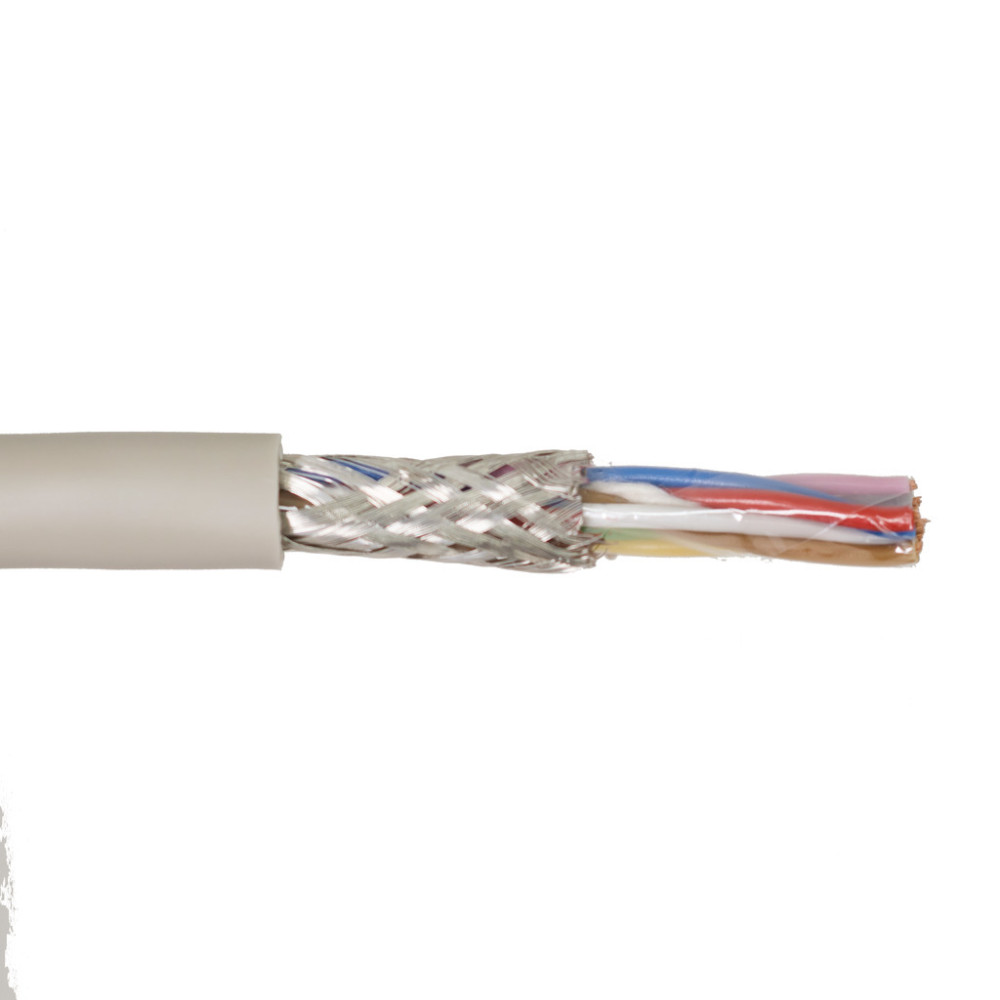

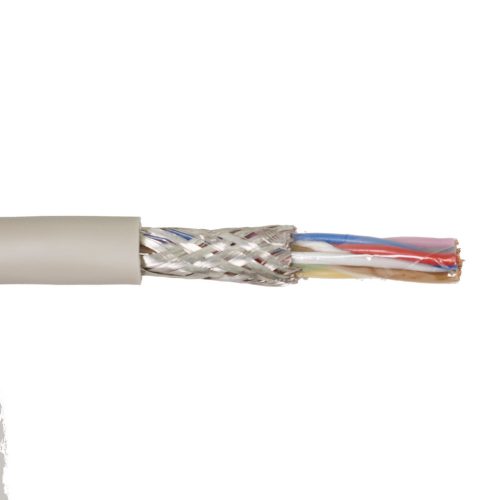

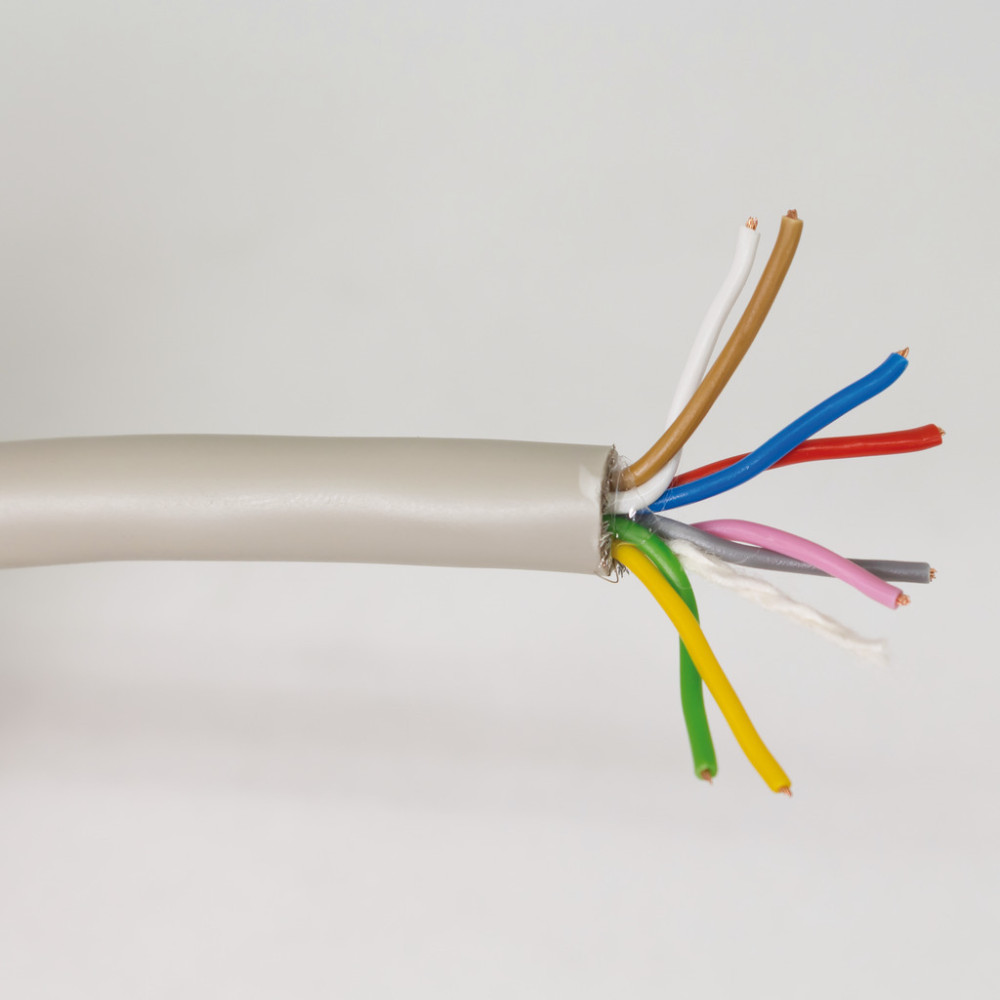

Cable/Wire, Twisted Pair, Shielded d=7.6mm, stranded wires

Manufacturer code:

0035802

Manufacturer:

LAPPKABEL

Datasheet:

LAPP_LIYCY_TP.pdf

Group:

Shilded Cables

Component Family:

Shilded Cables

Colour:

Grey

Unpacking:

Cut to size

External Diameter [mm]:

7.6 mm

Voltage [V], Max.:

500 V

Configuration:

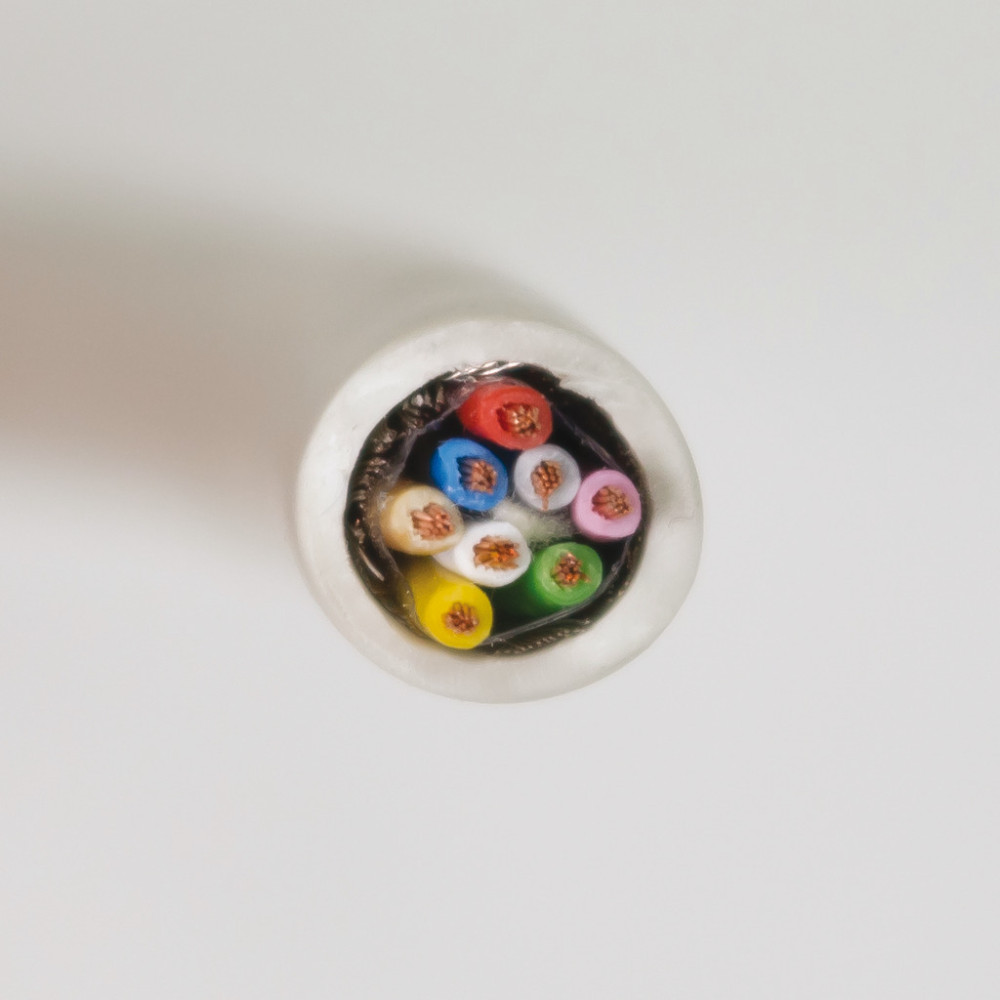

4 x 2 twisted pair + shield

Insulator Material:

PVC

Conductor Matherial:

copper

Conductor size AWG/mm:

AWG24

Conductor Plating:

Tinned

Operating Temperature Min. [°C]:

-5 °C

Operating Temperature Max. [°C]:

+70 °C

ROHS:

Yes

Conductor Area [mm²]:

2 x 2 x 0.14 mm²

3 x 2 x 0.14 mm²

4 x 2 x 0.14 mm²

2 x 2 x 0.25 mm²

3 x 2 x 0.25 mm²

4 x 2 x 0.25 mm²

meter

Quantity discount:

Quantity [meter]

Net price [EUR]

Gross [EUR]

100

2,16 €

2,74 €

Our Warehouse

192 meter

Available for immediate delivery

Our Shop in Szeged

0 meter

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

Cable identification to DIN 47100.pdf

Weight:

81 g/meter
