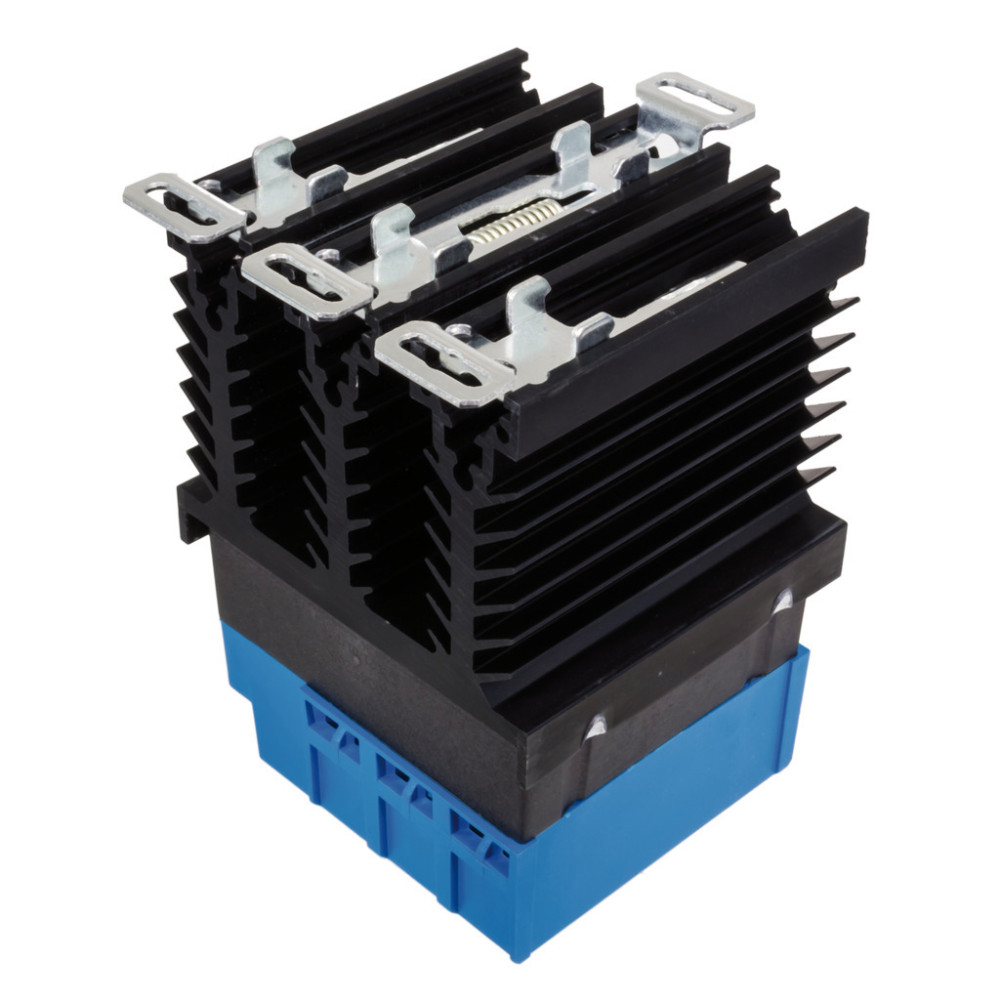

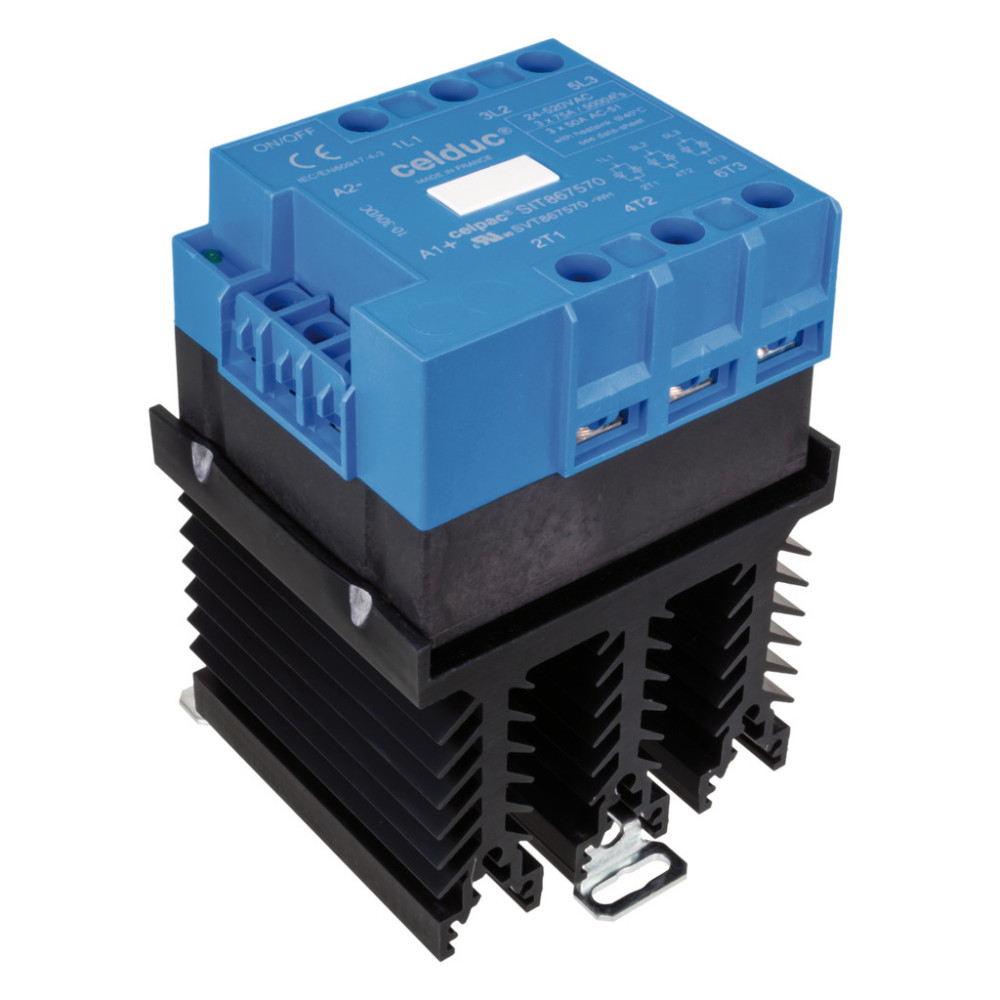

SIT865570 - Solid State Relay, 3-phase 520 VAC / 3x22 A with heat sink, 10–30 VDC input - CELDUC
274.6219 €+ VAT
348.7699 € incl. VAT
348.7699 € incl. VAT
SIT865570 - Solid State Relay, 3-phase 520 VAC / 3x22 A with heat sink, 10–30 VDC input - CELDUC
The picture is for illustration purposes only. Please read the product description!
In stock 1 pcs
274.6219 €+ VAT
348.7699 € incl. VAT
348.7699 € incl. VAT
Solid State Relay, 3-phase 520 Vac / 3x22A w. Heatsink 10-30Vdc Input
Manufacturer code:
SIT865570
Manufacturer:
Datasheet:
Group:
Solid State Relays - Other
Component Family:
Case:
Termination Type:
mountable
Number of Pins:
8
Dimension Parameters:
126 x 89.8 x 98 mm
Contact Configuration :
3PST
Input Type:
DC
Switching Type:
Zero-cross circuit
Switched Current, Max. [A]:
3 x 22 A
Switched Voltage, Max. [V]:
520 Vrms AC
Switched Voltage, Min. [V]:
24 Vrms AC
Output Type:
Triac
Control Voltage [V], Max.:
30 V
Control Voltage [V], Min.:
10 V
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+100 °C
ROHS:
Yes
pcs
Our Warehouse
1 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Data
Weight:
1 kg/pcs
