G2RL-1A-E-CF-DC18 - jelfogó 18V 900Ohm 250V/16A 1-áramkör SPST - OMRON

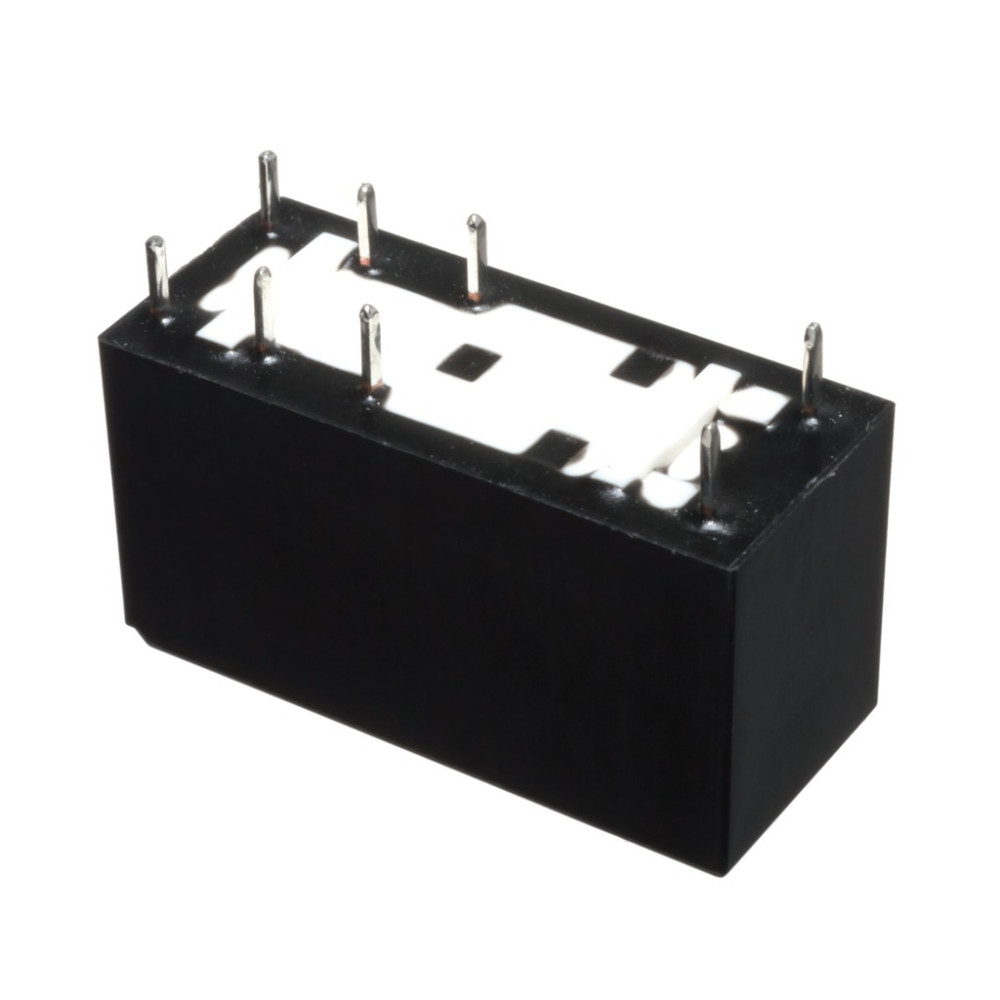

The picture is for illustration purposes only. Please read the product description!
Out of stock
Relay, 18V 900Ohm 250V/16A 1-circuit SPST
Manufacturer code:
G2RL-1A-E-CF-DC18
Manufacturer:
Datasheet:
Group:
Relays - PCB
Component Family:
Product Range:
Case:
Termination Type:
Through-hole technology
Number of Pins:
4
Dimension Parameters:
29 x 12.7 x 15.7 mm
Contact Voltage, Max. DC [V]:
24 V
Contact Configuration :
SPST
Contact Current, Max. AC/DC [A]:
16 A
Contact Voltage, Max. AC [V]:
250 V
Contact resistance [Ohm]:
0.1 Ohm
Coil Resistance [Ohm]:
900 Ohm
Coil Voltage [V], Min.:
16.2 V DC
Coil Voltage [V], Nom.:
18 V DC
Coil Configuration:
1 coil
Coil Holding Voltage [V], Min.:
1.8 V DC
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
Yes
Our Warehouse
0 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Data
Weight:
12 g/pcs
