G6E-134P-USDC24 - jelfogó 24V 2880Ohm 250V/3A, 1-áramkör, SPDT - OMRON

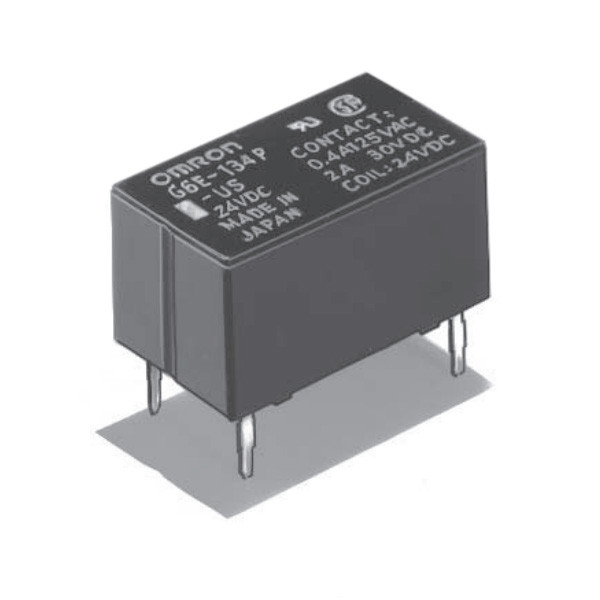

The picture is for illustration purposes only. Please read the product description!
Out of stock
Relay, 24V 2880Ohm 250V/3A, 1-circuit, SPDT
Manufacturer code:
G6E-134P-USDC24
Manufacturer:
Datasheet:
Group:
Relays - PCB
Component Family:
Product Range:
Case:
Termination Type:
Through-hole technology
Number of Pins:
5
Dimension Parameters:
16.0 x 10.0 x 7.9 mm
Contact Voltage, Max. DC [V]:
220 V
Contact Configuration :
SPDT
Contact Current, Max. AC/DC [A]:
3 A
Contact Voltage, Max. AC [V]:
250 V
Contact resistance [Ohm]:
0.1 Ohm
Coil Resistance [Ohm]:
2880 Ohm
Coil Voltage [V], Min.:
16.8 V DC
Coil Voltage [V], Nom.:
24 V DC
Coil Configuration:
1 coil
Coil Holding Voltage [V], Min.:
2.4 V DC
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+70 °C
ROHS:
Yes
Our Warehouse
0 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Data
Weight:
2.7 g/pcs
