TQ2-L2-5V - jelfogó 5V 125Ohm 125 VAC / 1A 2-áramkör 2-tekercs, Latch - PANASONIC

3.0229 €+ VAT
3.8391 € incl. VAT

TQ2-L2-5V - jelfogó 5V 125Ohm 125 VAC / 1A 2-áramkör 2-tekercs, Latch - PANASONIC

Name: TQ2-L2-5V - jelfogó 5V 125Ohm 125 VAC / 1A 2-áramkör 2-tekercs, Latch - PANASONIC
Brand: PANASONIC
SKU: 49-04-42
Price: 3.8391 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 8996 pcs

3.0229 €+ VAT
3.8391 € incl. VAT

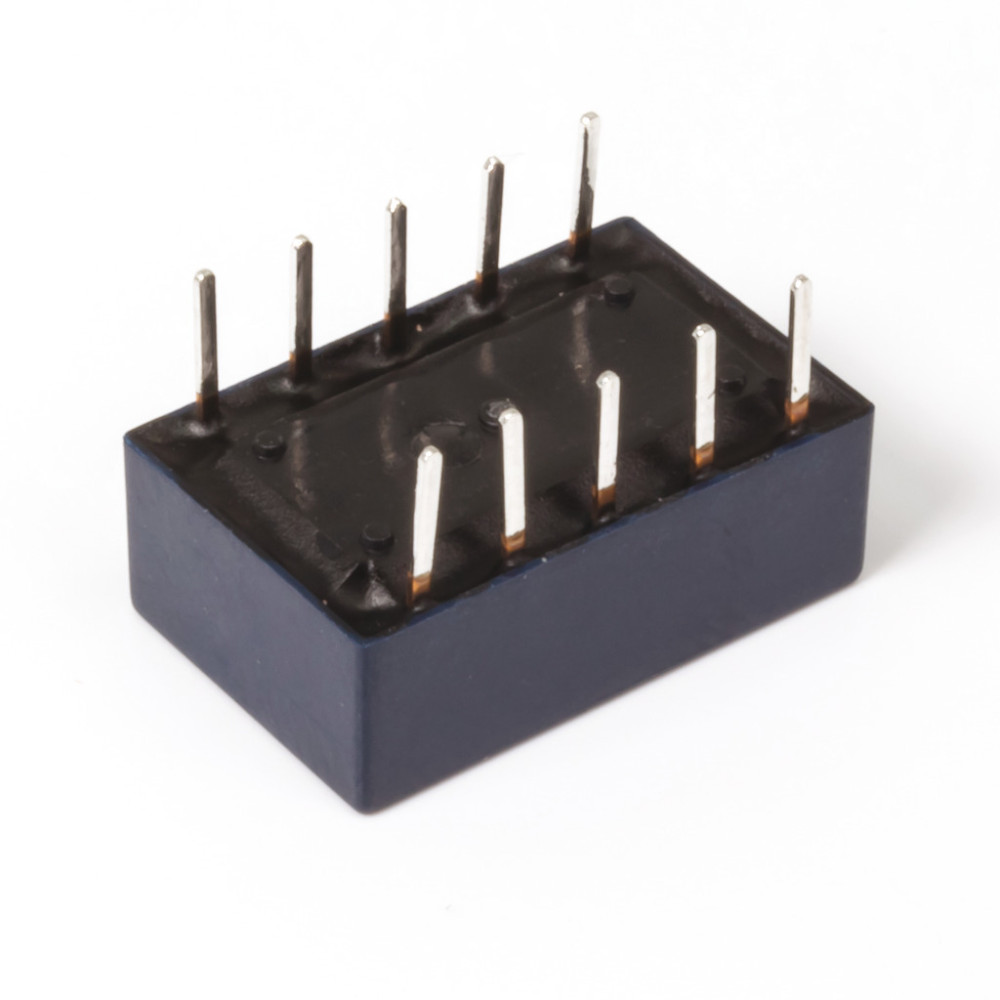

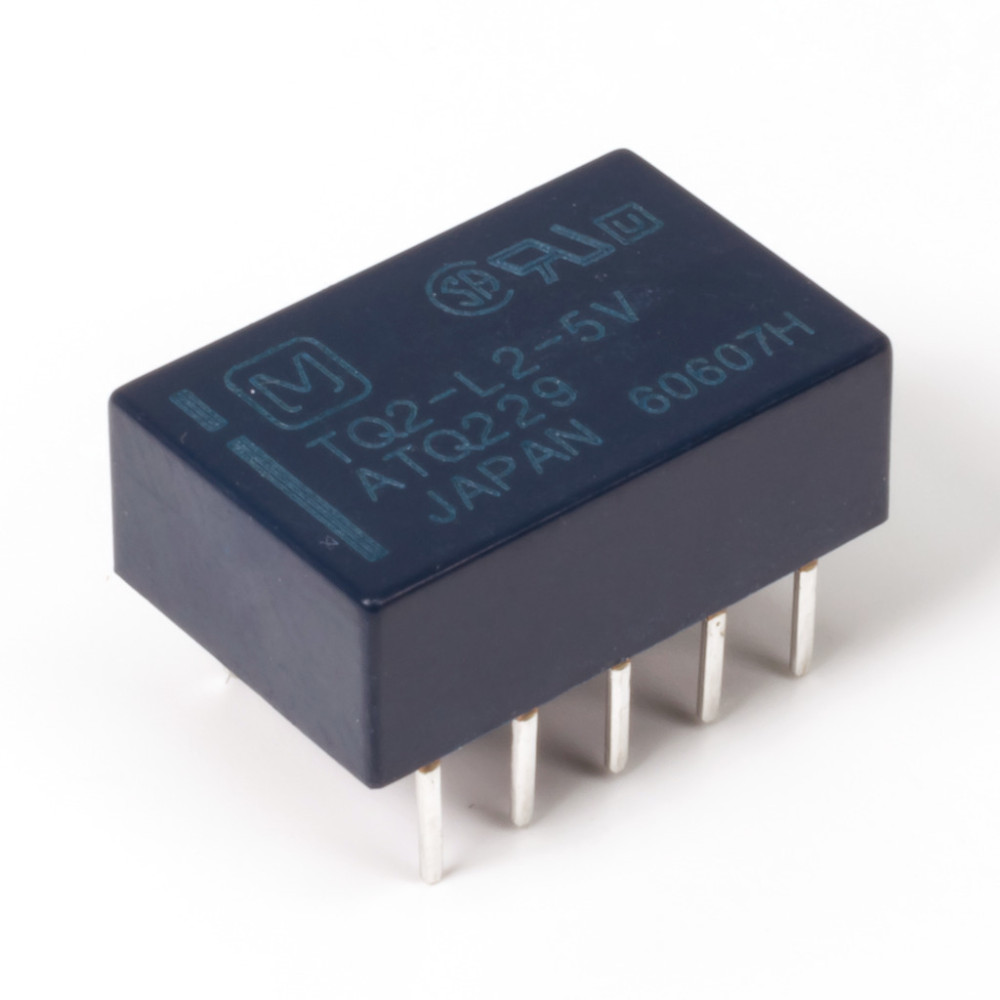

Relay, 5V 125Ohm 125VAC / 1A 2-circuit 2-windings Latch-type

Manufacturer code:

TQ2-L2-5V

Manufacturer:

PANASONIC

Datasheet:

TQ2SA-12V.pdf

Group:

Relays - PCB

Component Family:

Relay, mechanical

Product Range:

TQ2

Case:

PCB-mountable

Termination Type:

Through-hole technology

Number of Pins:

Dimension Parameters:

14 x 9 x 5 mm

Contact Voltage, Max. DC [V]:

30 V

Contact Configuration :

DPDT

Contact Current, Max. AC/DC [A]:

0.5 A/ 1 A

Contact Voltage, Max. AC [V]:

125 V

Contact resistance [Ohm]:

0.05 Ohm

Coil Resistance [Ohm]:

125 Ohm

Coil Voltage [V], Min.:

3.5 V DC

Coil Voltage [V], Nom.:

5 V DC

Coil Configuration:

2 coil, latch

Operating Temperature Min. [°C]:

-40 °C

Operating Temperature Max. [°C]:

+70 °C

ROHS:

Yes

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

100

1,94 €

2,46 €

Our Warehouse

8996 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Weight:

1.5 g/pcs
