G6M-1A-DC24 - jelfogó 24V 4800Ohm 250VAC/3A/30VDC/3A 1 áramkör álló - OMRON

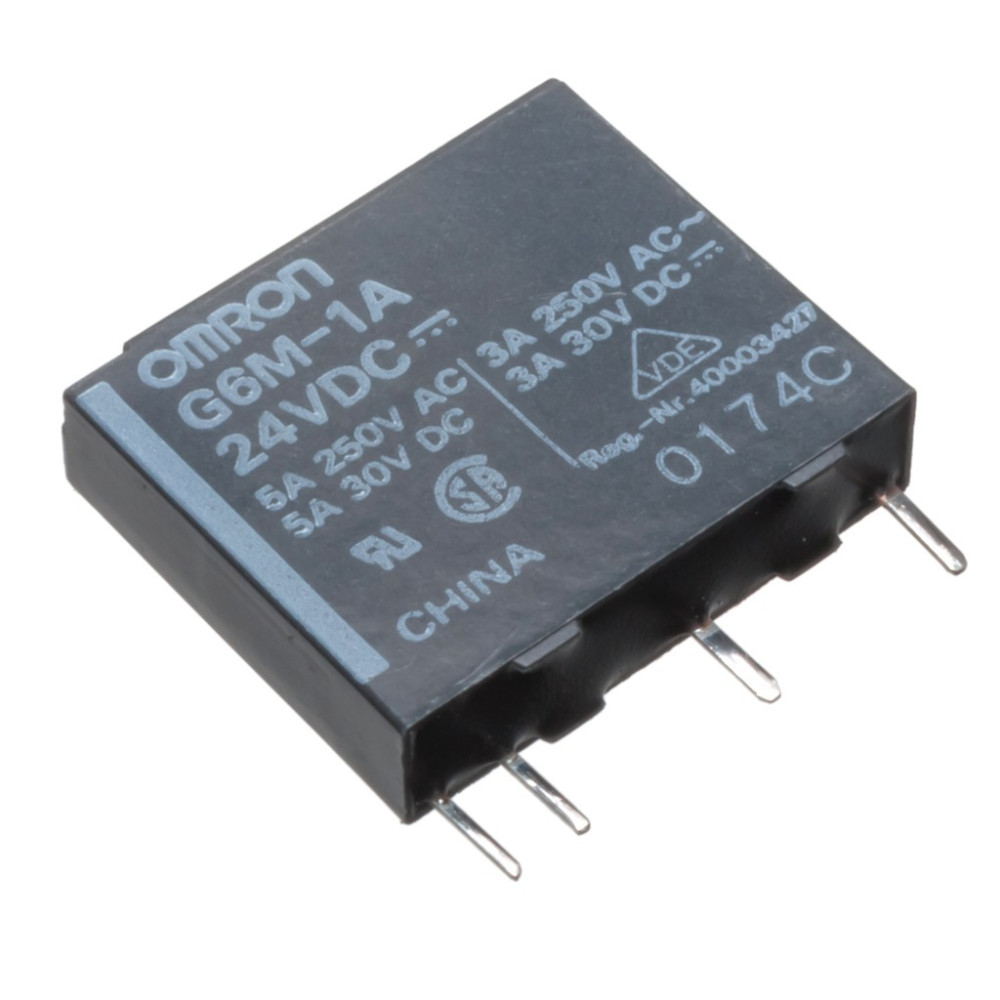

The picture is for illustration purposes only. Please read the product description!
Out of stock
Relay, 24V 4800Ohm 250VAC/3A/30VDC/3A 1-circuit Radial
Manufacturer code:
G6M-1A-DC24
Manufacturer:
Datasheet:
Group:
Relays - PCB
Component Family:
Product Range:
Case:
Termination Type:
Through-hole technology
Number of Pins:
4
Dimension Parameters:
20.3 x5.08 x 17.7 mm
Contact Voltage, Max. DC [V]:
125 V
Contact Configuration :
SPST
Contact Current, Max. AC/DC [A]:
5 A
Contact Voltage, Max. AC [V]:
270 V
Contact resistance [Ohm]:
0.1 Ohm
Coil Resistance [Ohm]:
4800 Ohm
Coil Voltage [V], Min.:
18 V DC
Coil Voltage [V], Nom.:
24 V DC
Coil Configuration:
1 coil
Coil Holding Voltage [V], Min.:
1.2 V DC
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
No
