FBR56ND12-W - jelfogó 12V 170Ohm 14Vdc/20A 1 áramkör - FUJITSU
2.203 €+ VAT
2.7978 € incl. VAT
2.7978 € incl. VAT
FBR56ND12-W - jelfogó 12V 170Ohm 14Vdc/20A 1 áramkör - FUJITSU

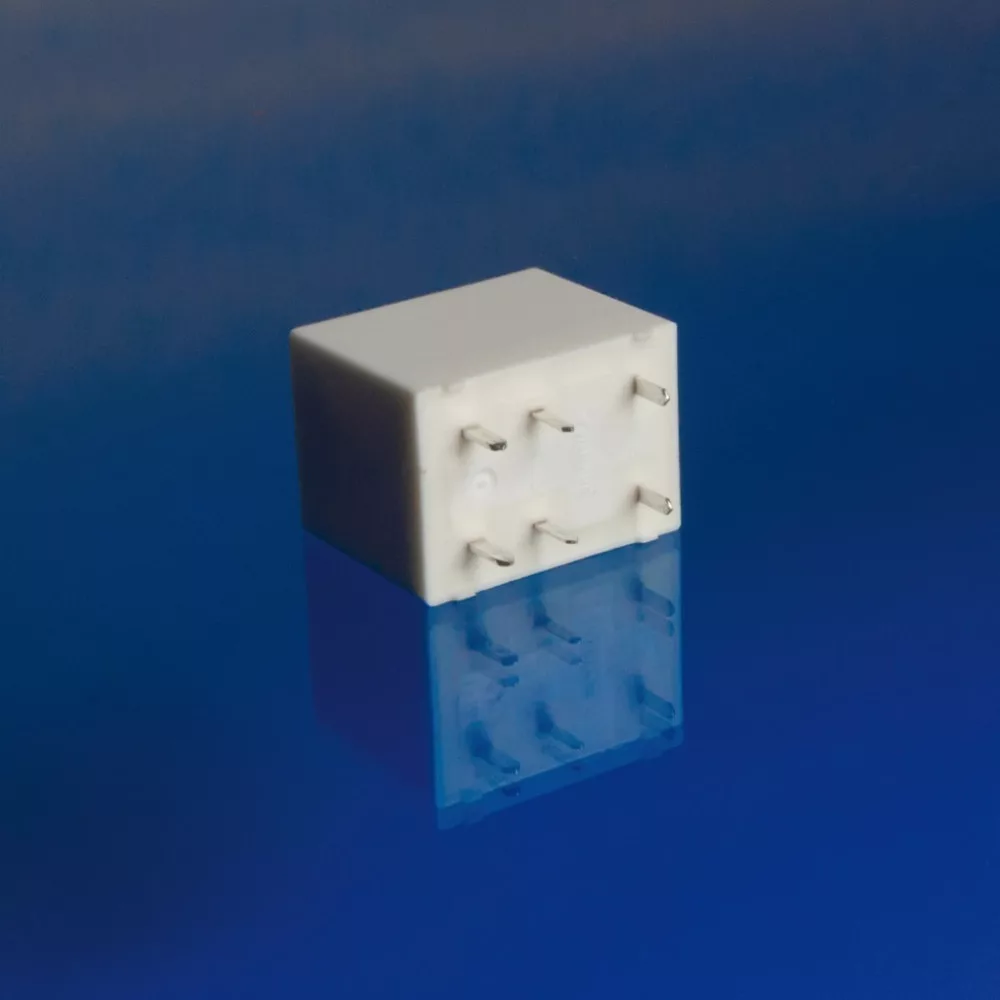

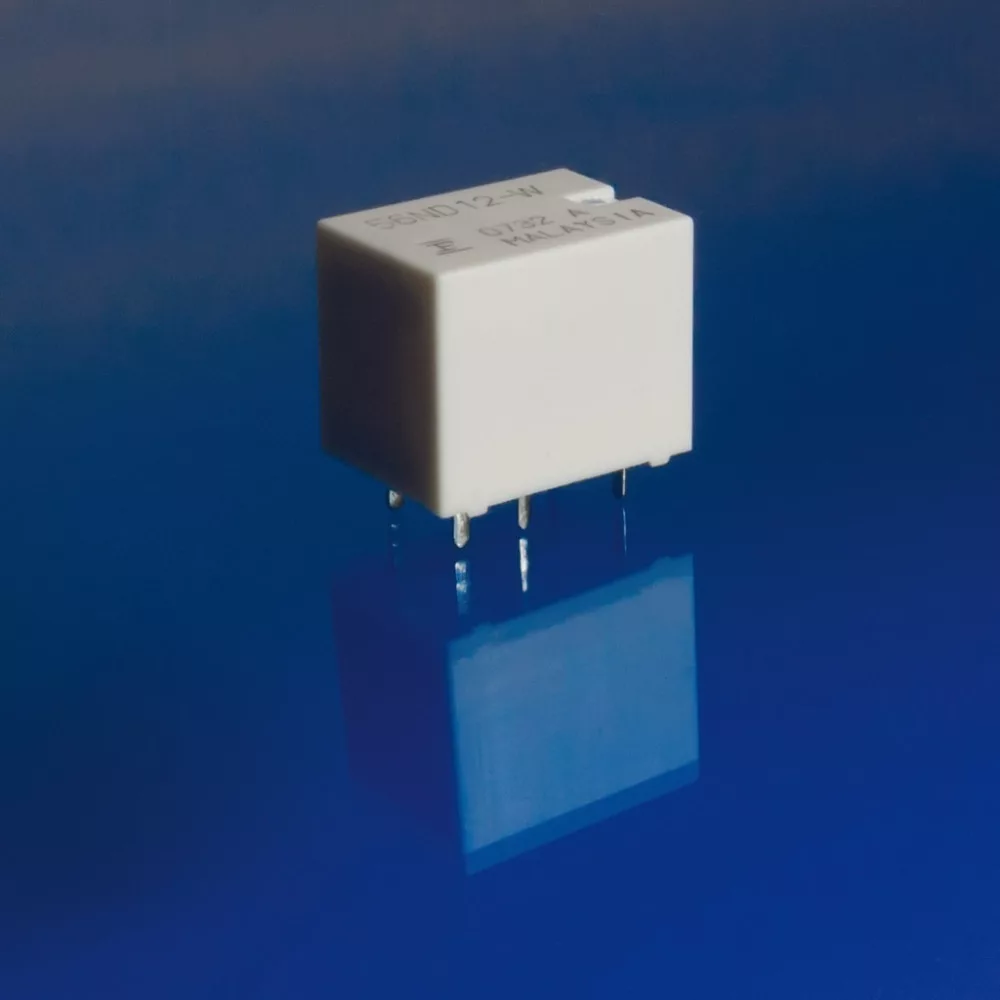

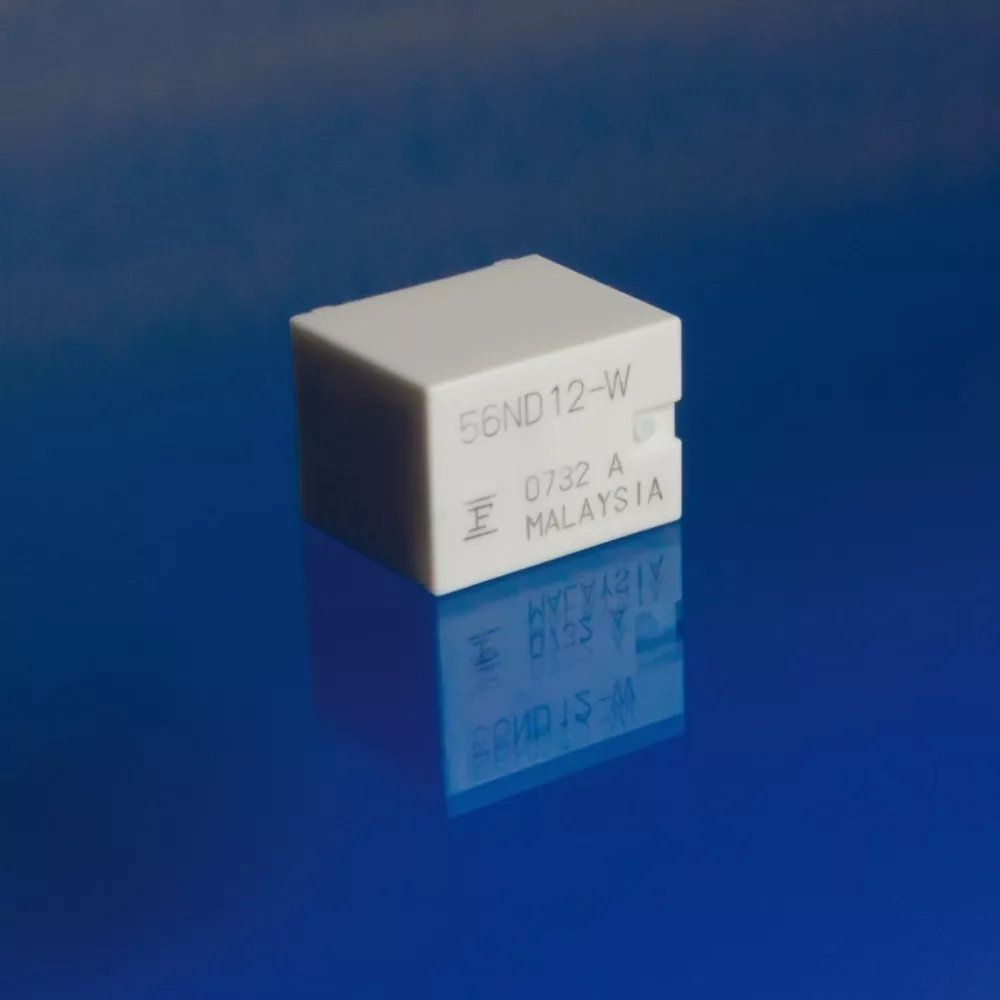

The picture is for illustration purposes only. Please read the product description!
In stock 272 pcs
2.203 €+ VAT
2.7978 € incl. VAT
2.7978 € incl. VAT
Relay, 12V 170Ohm 14Vdc/20A 1-circuit
Manufacturer code:
FBR56ND12-W
Manufacturer:
Datasheet:
Group:
Relays - PCB
Component Family:
Product Range:
Case:
Termination Type:
Through-hole technology
Number of Pins:
6
Dimension Parameters:
20 x 14.4 x 16.2 mm
Contact Voltage, Max. DC [V]:
16 V
Contact Configuration :
SPDT
Contact Current, Max. AC/DC [A]:
40 A
Coil Resistance [Ohm]:
170 Ohm
Coil Voltage [V], Min.:
9.2 V DC
Coil Voltage [V], Nom.:
12 V DC
Coil Configuration:
1 coil
Coil Holding Voltage [V], Min.:
1.2 V DC
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
Yes
pcs
Our Warehouse
272 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Data
Additional Datasheet:
Weight:
9.4 g/pcs
