IA231520 - Reed-Kontaktus, 21,5mm 0.5A, 250Vdc 18W 15..20ATf - CELDUC

2.609 €+ VAT
3.3134 € incl. VAT

IA231520 - Reed-Kontaktus, 21,5mm 0.5A, 250Vdc 18W 15..20ATf - CELDUC

Name: IA231520 - Reed-Kontaktus, 21,5mm 0.5A, 250Vdc 18W 15..20ATf - CELDUC
Brand: CELDUC
SKU: 49-03-17
Price: 3.3134 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 154 pcs

End of Life

2.609 €+ VAT
3.3134 € incl. VAT

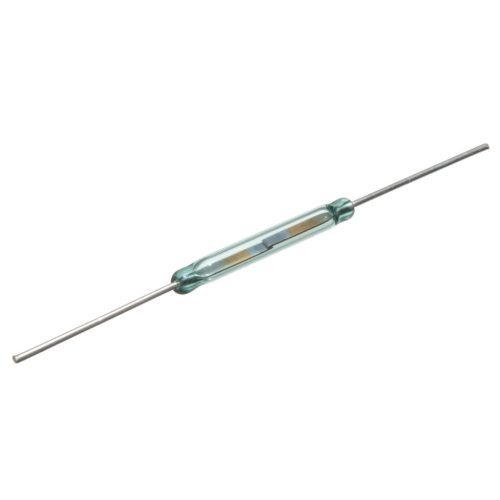

Reed Contact, 21,5mm 0.5A, 250 Vdc 18W 15..20ATf

Manufacturer code:

IA231520

Manufacturer:

CELDUC

Datasheet:

ia23-001.pdf

Group:

Reed Switches

Component Family:

Reed-contact

Case:

Glass

Termination Type:

Solderable

Number of Pins:

Insulation Voltage [V], Max.:

250 V

Dimension Parameters:

Ø2.7 x 21.5 mm

Contact Voltage, Max. DC [V]:

250 V

Contact Configuration :

SPST

Contact Current, Max. AC/DC [A]:

0.5 A

Switched Power [W], max.:

18 W

Contact Voltage, Max. AC [V]:

250 V

Contact resistance [Ohm]:

0.08 Ohm

Operating Temperature Min. [°C]:

-40 °C

Operating Temperature Max. [°C]:

+125 °C

ROHS:

Yes

pcs

Our Warehouse

154 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_K_053.pdf
