3602-05-52 - Reed-jelfogó, 5V 2 áramkör záró DPST 0,25A 30.5x16.76x12.06mm - COTO TECHNOLOGY

69.8434 €+ VAT
88.7011 € incl. VAT

3602-05-52 - Reed-jelfogó, 5V 2 áramkör záró DPST 0,25A 30.5x16.76x12.06mm - COTO TECHNOLOGY

Name: 3602-05-52 - Reed-jelfogó, 5V 2 áramkör záró DPST 0,25A 30.5x16.76x12.06mm - COTO TECHNOLOGY
Brand: COTO TECHNOLOGY
SKU: 49-06-19
Price: 88.7011 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 6 pcs

69.8434 €+ VAT
88.7011 € incl. VAT

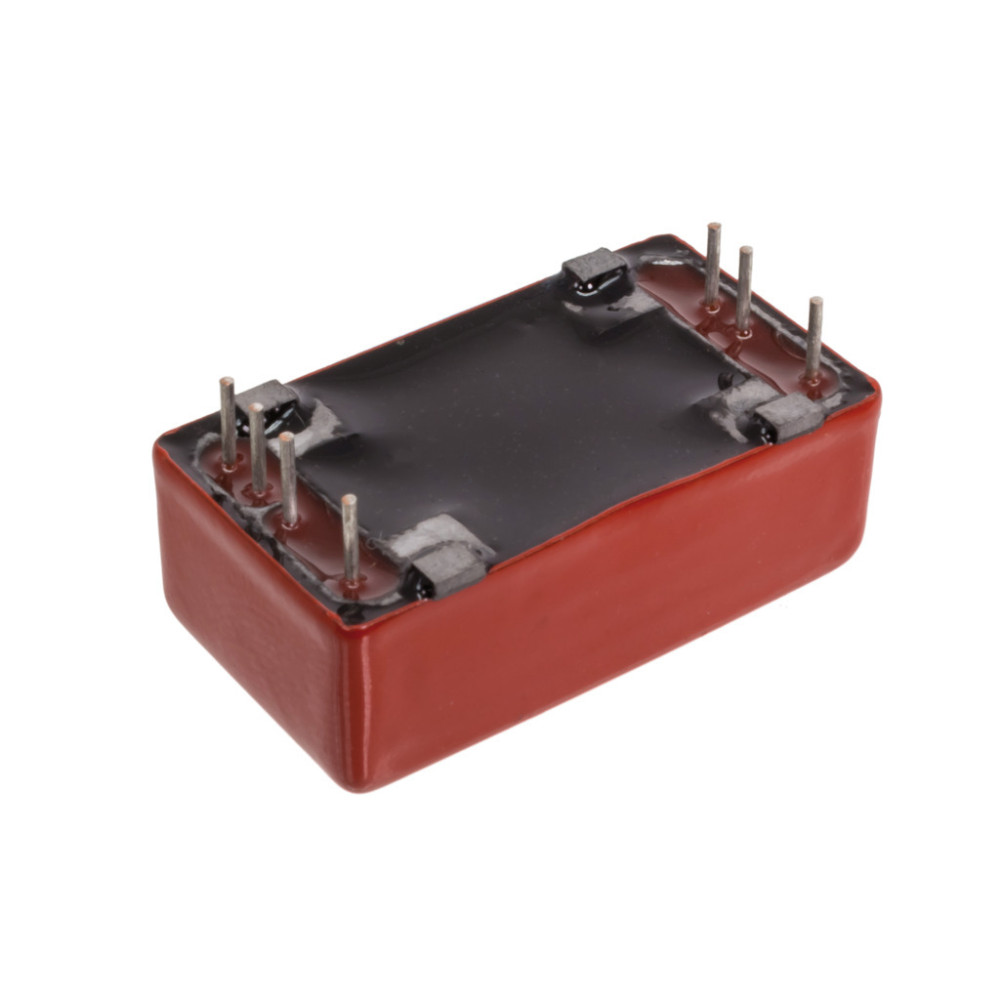

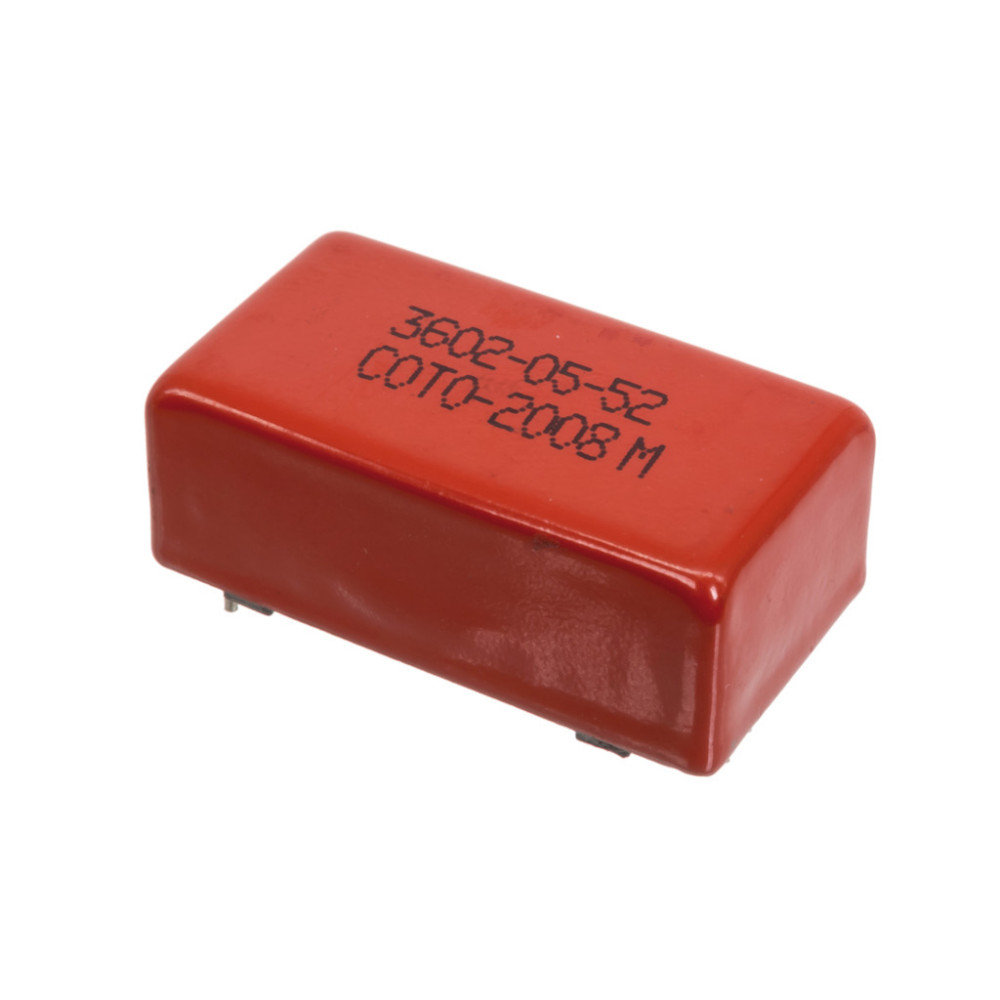

Reed Relay, 5V 2-circuit NO-contact DPST 0,25A 30.5x16.76x12.06mm

Manufacturer code:

3602-05-52

Manufacturer:

COTO TECHNOLOGY

Datasheet:

3600_series_reed_relay_datasheet.pdf

Group:

Reed Relays

Component Family:

Reed relay

Case:

30.5x16.76x12.06mm

Termination Type:

Through-hole technology

Number of Pins:

Dimension Parameters:

30.5x16.76x12.06mm

Contact Voltage, Max. DC [V]:

150 V

Contact Configuration :

DPST

Contact Current, Max. AC/DC [A]:

0.25 A

Contact Voltage, Max. AC [V]:

150 V

Contact resistance [Ohm]:

0.1 Ohm

Coil Resistance [Ohm]:

350 Ohm

Coil Voltage [V], Min.:

3.8 V DC

Coil Voltage [V], Nom.:

5 V DC

Coil Configuration:

1 coil

Coil Holding Voltage [V], Min.:

0.4 V DC

Operating Temperature Min. [°C]:

-20 °C

Operating Temperature Max. [°C]:

+85 °C

ROHS:

Yes

pcs

Our Warehouse

6 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Weight:

13.18 g/pcs
