SMCJ1.5KE6.8A-TP - Vrm=5.8V (1500W/1ms) SMD, SMC(DO-214AB) , egyirányú szupresszor dióda - MICRO COMMERCIAL COMPONENTS

0.8712 €+ VAT
1.1064 € incl. VAT

SMCJ1.5KE6.8A-TP - Vrm=5.8V (1500W/1ms) SMD, SMC(DO-214AB) , egyirányú szupresszor dióda - MICRO COMMERCIAL COMPONENTS

Name: SMCJ1.5KE6.8A-TP - Vrm=5.8V (1500W/1ms) SMD, SMC(DO-214AB) , egyirányú szupresszor dióda - MICRO COMMERCIAL COMPONENTS
Brand: MICRO COMMERCIAL COMPONENTS
SKU: 95-06-72
Price: 1.1064 EUR
Availability: InStock

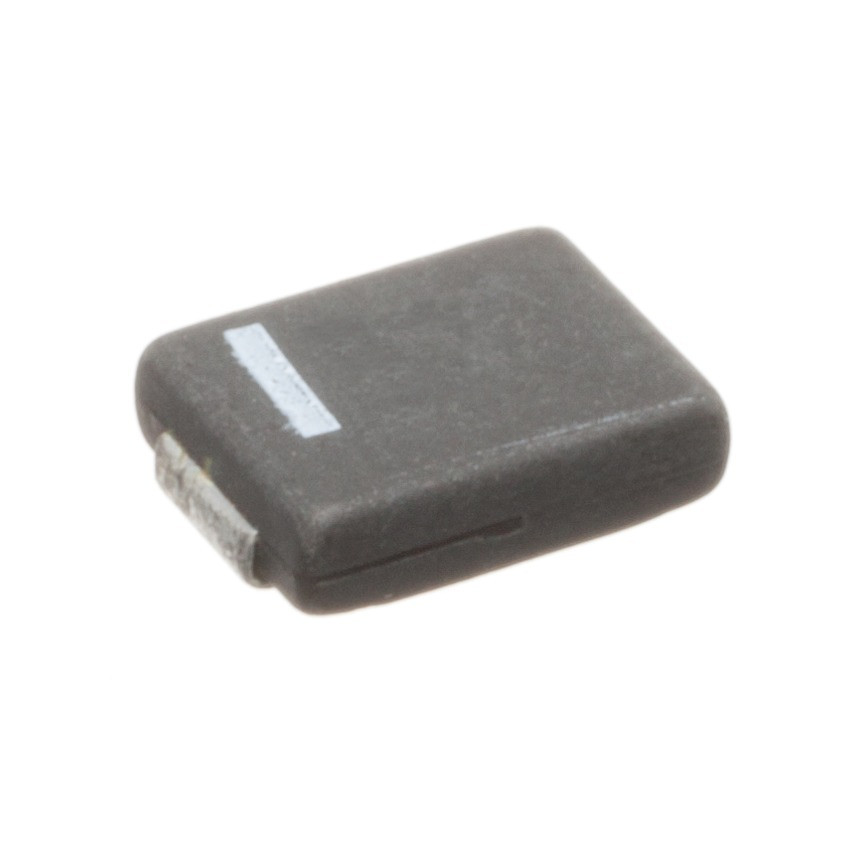

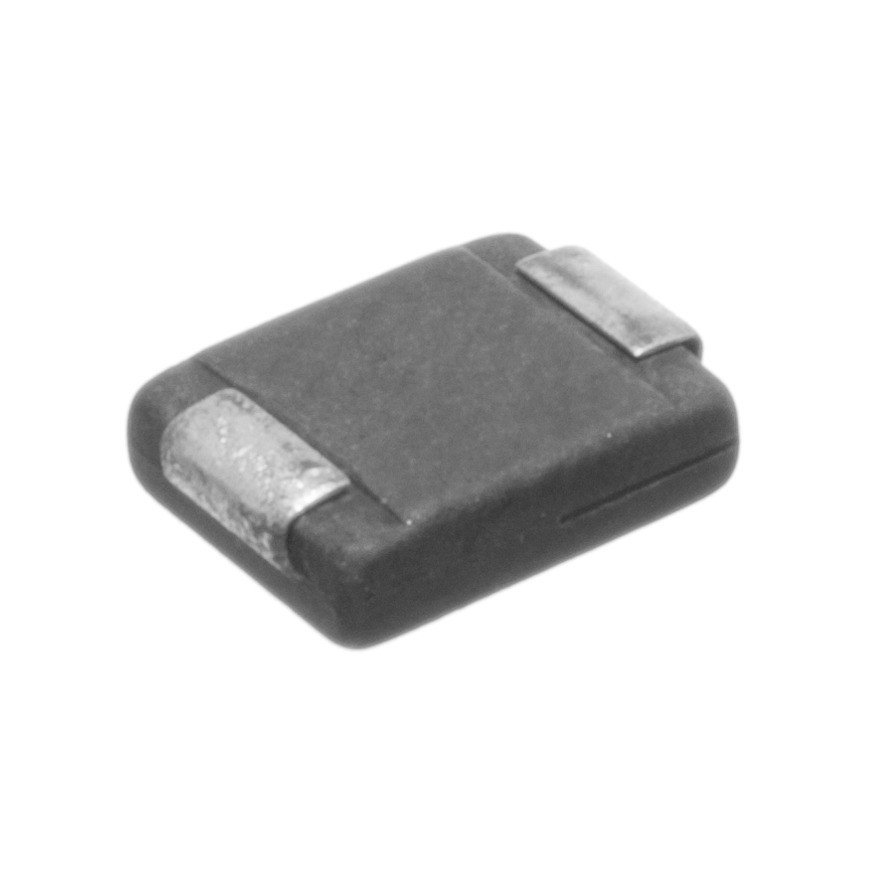

The picture is for illustration purposes only. Please read the product description!

In stock 8 pcs

0.8712 €+ VAT
1.1064 € incl. VAT

Transient supressor, Vrm=5.8 V (1500W/1ms) SMD, SMC(DO-214AB) ,unidirectional

Manufacturer code:

SMCJ1.5KE6.8A-TP

Manufacturer:

MICRO COMMERCIAL COMPONENTS

Group:

Transient Supressor Diodes

Component Family:

SMD unidirectional supressor (1500W @ 1msec.)

Case Style:

Surface Mount (SMD)

Case:

SMC

Termination Type:

Surface mount (SMD)

Number of Pins:

Sperrspannung [V]:

5.8 V

Transient Supressor Diode Type:

One way

Breakdown Voltage Ubr [V] @ Ibr [A], Min.:

6.45 V @ 10 mA

Breakdown Voltage Ubr [V] @ Ibr [A], Max.:

7.14 V @ 10 mA

Reverse Current Ir [A] @ Uz [V]:

1000 µA @ 5.8 V

Power Dissipation Ptot [W] @ t[msec.], Max:

1500 W @ 1 ms

Operating Temperature Min. [°C]:

-50 °C

Operating Temperature Max. [°C]:

+175 °C

ROHS:

Yes

pcs

Our Warehouse

8 pcs

Available for immediate delivery

Info

Weight:

0.213 g/pcs
