2381 691 90001 RH-Sensor - BC COMPONENTS - 238169190001
8.1698 €+ VAT
10.3756 € incl. VAT
10.3756 € incl. VAT
2381 691 90001 RH-Sensor - BC COMPONENTS - 238169190001
The picture is for illustration purposes only. Please read the product description!
In stock 32 pcs
8.1698 €+ VAT
10.3756 € incl. VAT
10.3756 € incl. VAT

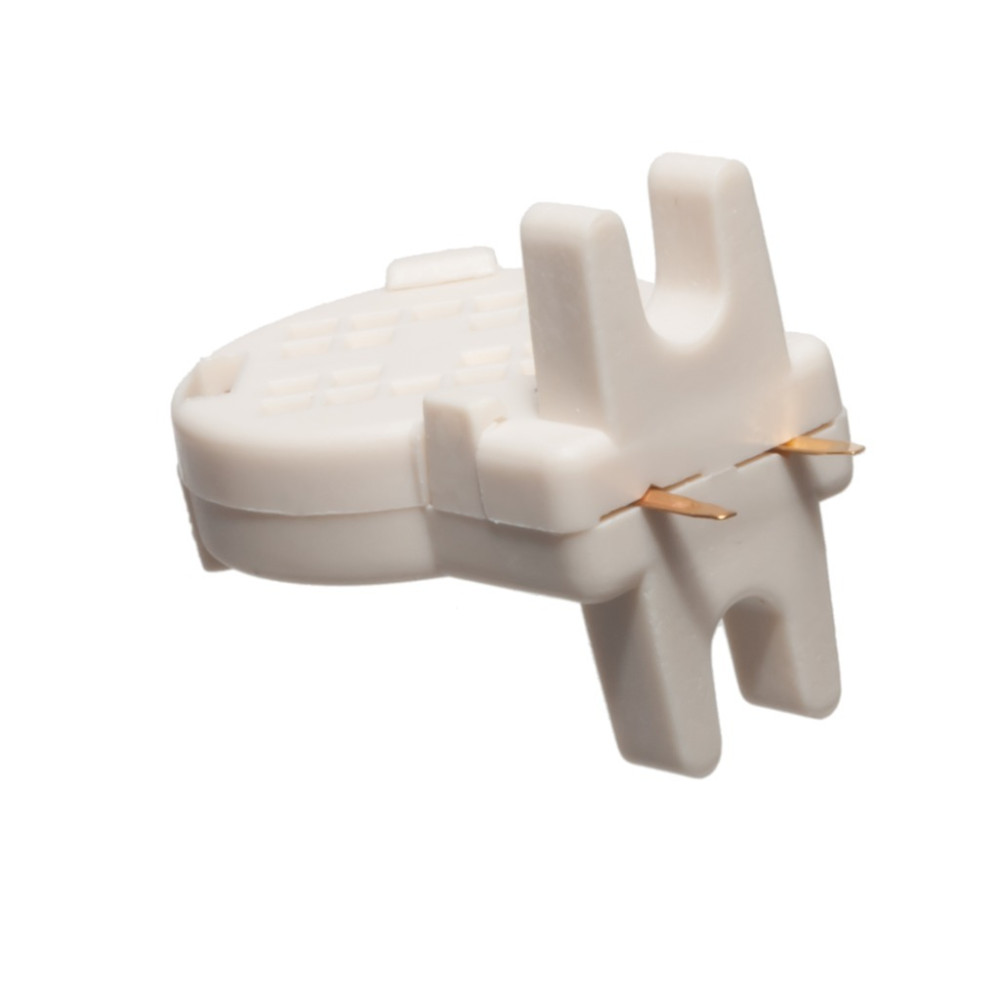

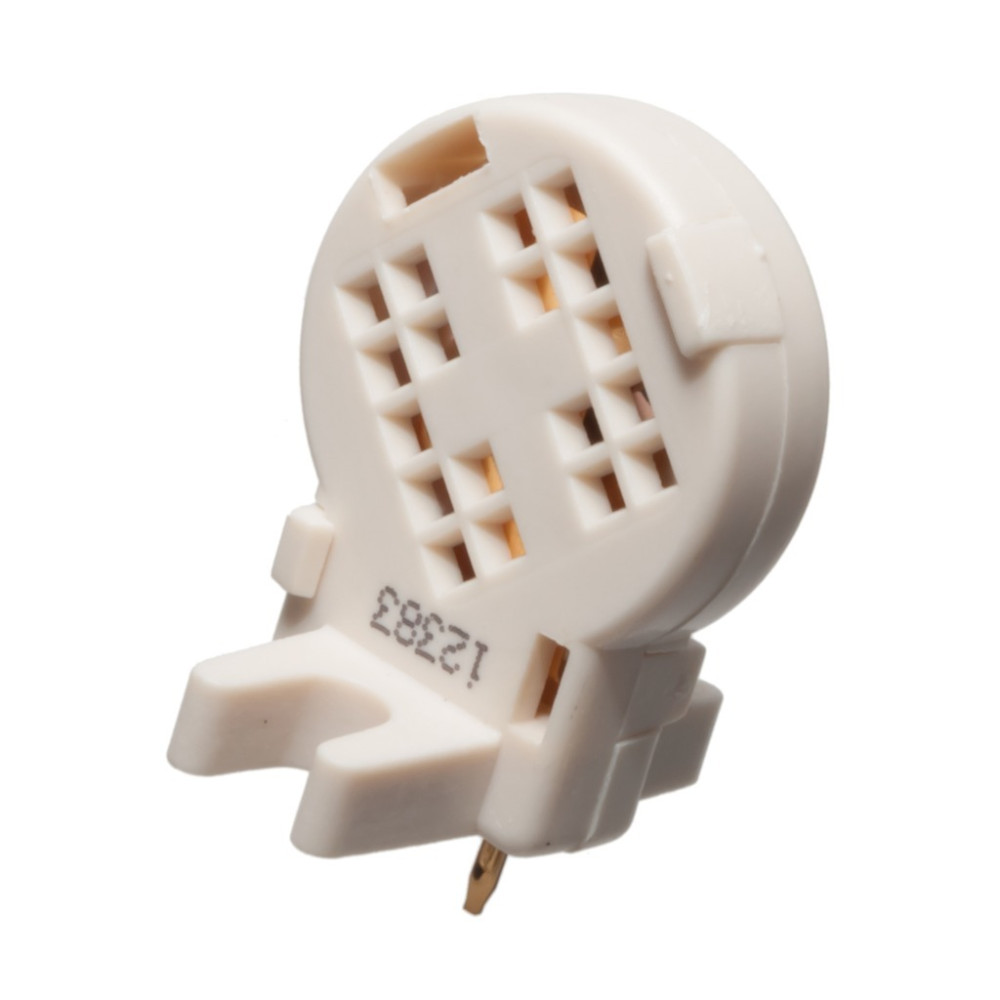

RH-Sensor 10..90% RH Philips
Manufacturer code:
238169190001
Manufacturer:
Datasheet:
Group:
Humidity Sensors
Component Family:
Case:
Termination Type:
PCB-mountable
Number of Pins:
2
Dimension Parameters:
23 x 15 x 17 mm
Output Type:
Capacitive
Resolution:
0.4 pF/% RH
Signal Range:
110..144 pF
Measurement Range, Humidity [ % ]:
10..90 % RH
Response Time [sec.]:
5 min.
Operating Temperature Min. [°C]:
0 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
Yes
pcs
Our Warehouse
32 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Data
Additional Datasheet:
Weight:
1.3 g/pcs
