AC050000B1000J6BCS - 100Ohm 5W 5% RM10 huzal ellenállás - VISHAY

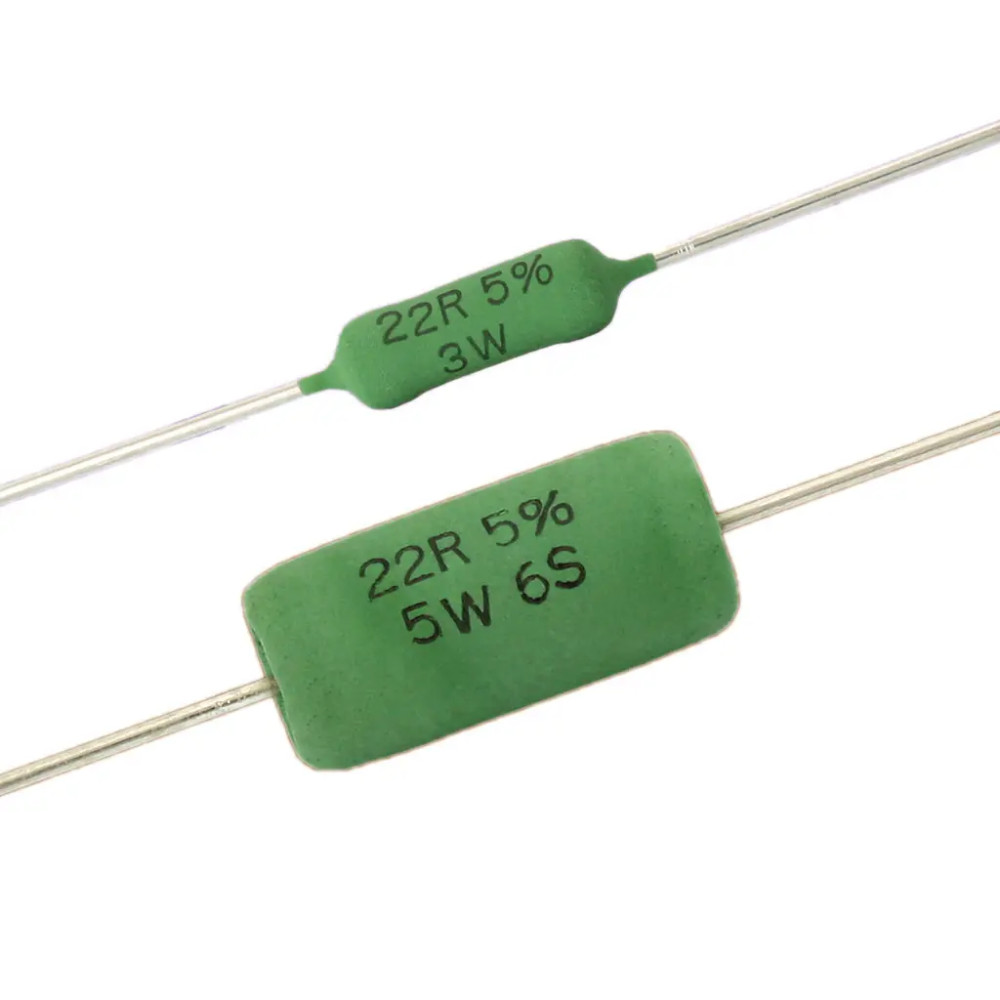

The picture is for illustration purposes only. Please read the product description!
Out of stock
Wirewound Resistor, 5W 5% RM10 7,5x18mm
Manufacturer code:
AC050000B1000J6BCS
Manufacturer:
Datasheet:
Group:
Wirewound resistors
Component Family:
Product Range:
Resistance R[Ohm]:
Case Style:
Horizontal
Case:
Termination Type:
Through-hole technology
Number of Pins:
2
Nominal Power [W @ °C]:
5 W @ 70 °C
Tolerance [ % ]:
±5 %
Operating Voltage [V], Max.:
SQRT(P*R)
Temperature Coefficient, T.C. [ppm/°C]:
±200 ppm/°C
External Length [mm]:
18 mm
External Thickness [mm]:
7.5 mm
External Diameter [mm]:
7.5 mm
External Height [mm]:
7.5 mm
Raster measure:
25 mm
Operating Temperature Min. [°C]:
-55 °C
Operating Temperature Max. [°C]:
+250 °C
ROHS:
Yes
Our Warehouse
0 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Data
Weight:
1.9 g/pcs
