5.6 KOhm 50W 5% Axial HSA505K6J - TE CONNECTIVITY - 7-1625984-2

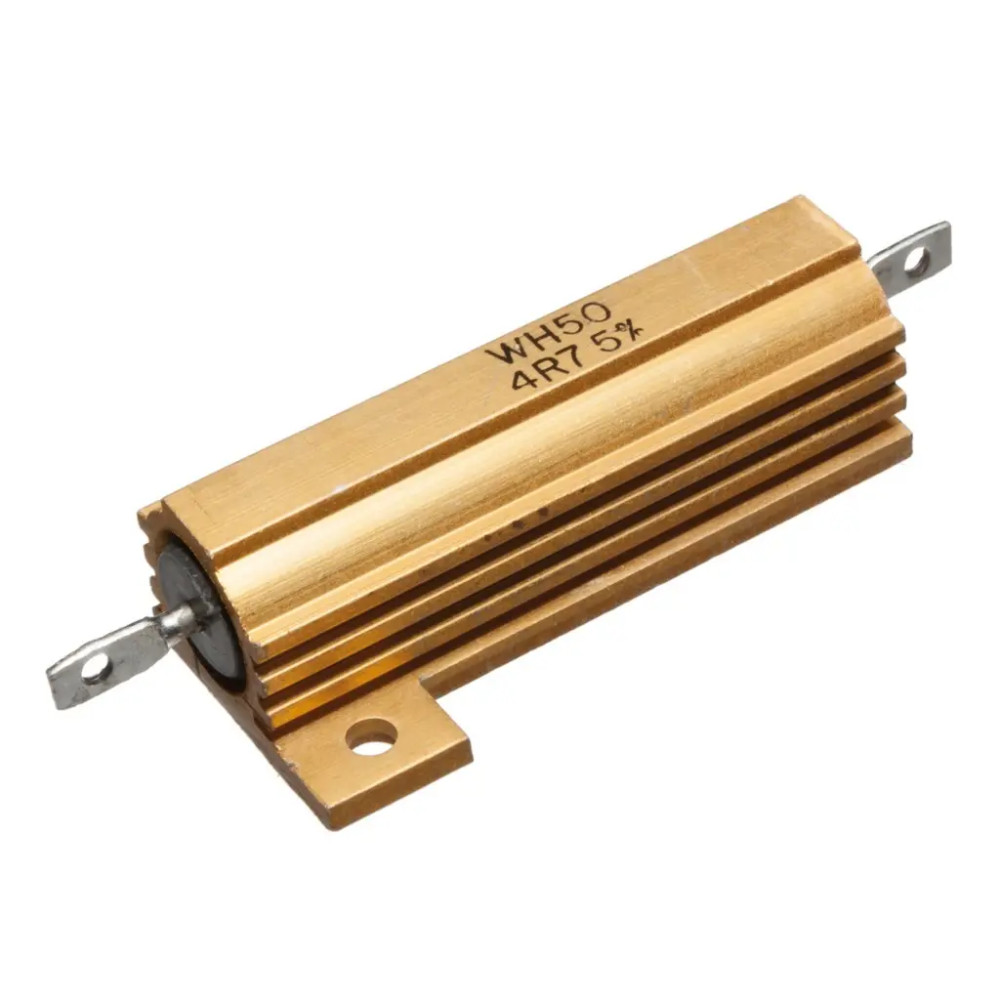

The picture is for illustration purposes only. Please read the product description!
Out of stock
Wirewound Resistor, 50W 5% Axial Metal-case Screwy
Manufacturer code:
7-1625984-2
Manufacturer:
Datasheet:
Group:
Wirewound resistors
Component Family:
Product Range:
Resistance R[Ohm]:
Case Style:
Horizontal
Case:
Termination Type:
Screw-mounted
Number of Pins:
2
Nominal Power [W @ °C]:
50 W @ 25 °C (w. heatsink)
Tolerance [ % ]:
±5 %
Operating Voltage [V], Max.:
1250 V
Insulation Voltage [V], Max.:
2500 V
Temperature Coefficient, T.C. [ppm/°C]:
±30 ppm/°C
External Length [mm]:
51 mm
External Thickness [mm]:
30 mm
External Height [mm]:
17 mm
Raster measure:
72.5 mm
Operating Temperature Min. [°C]:
-55 °C
Operating Temperature Max. [°C]:
+250 °C
ROHS:
Yes
Our Warehouse
0 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Data
Additional Datasheet:
Weight:
34.473 g/pcs
