1 KOhm 11W 10% Radial (216-3) - YAGEO (VITROHM) EUROPE - KVS11AKB-RD-1KAA

65.2 Ft+ VAT
82.8 Ft incl. VAT

1 KOhm 11W 10% Radial (216-3) - YAGEO (VITROHM) EUROPE - KVS11AKB-RD-1KAA

Name: 1 KOhm 11W 10% Radial (216-3) - YAGEO (VITROHM) EUROPE - KVS11AKB-RD-1KAA
Brand: YAGEO (VITROHM) EUROPE
SKU: 06-02-92
Price: 82.8 HUF
Availability: InStock

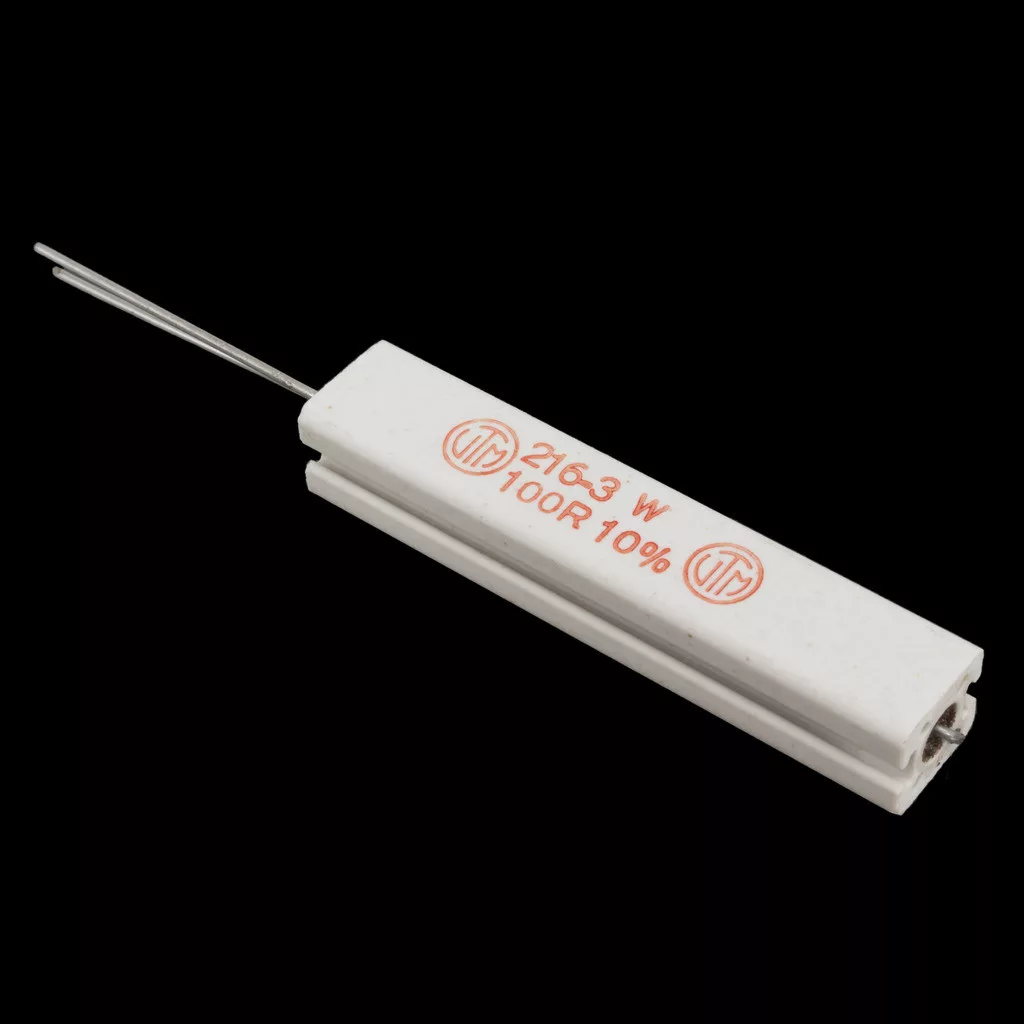

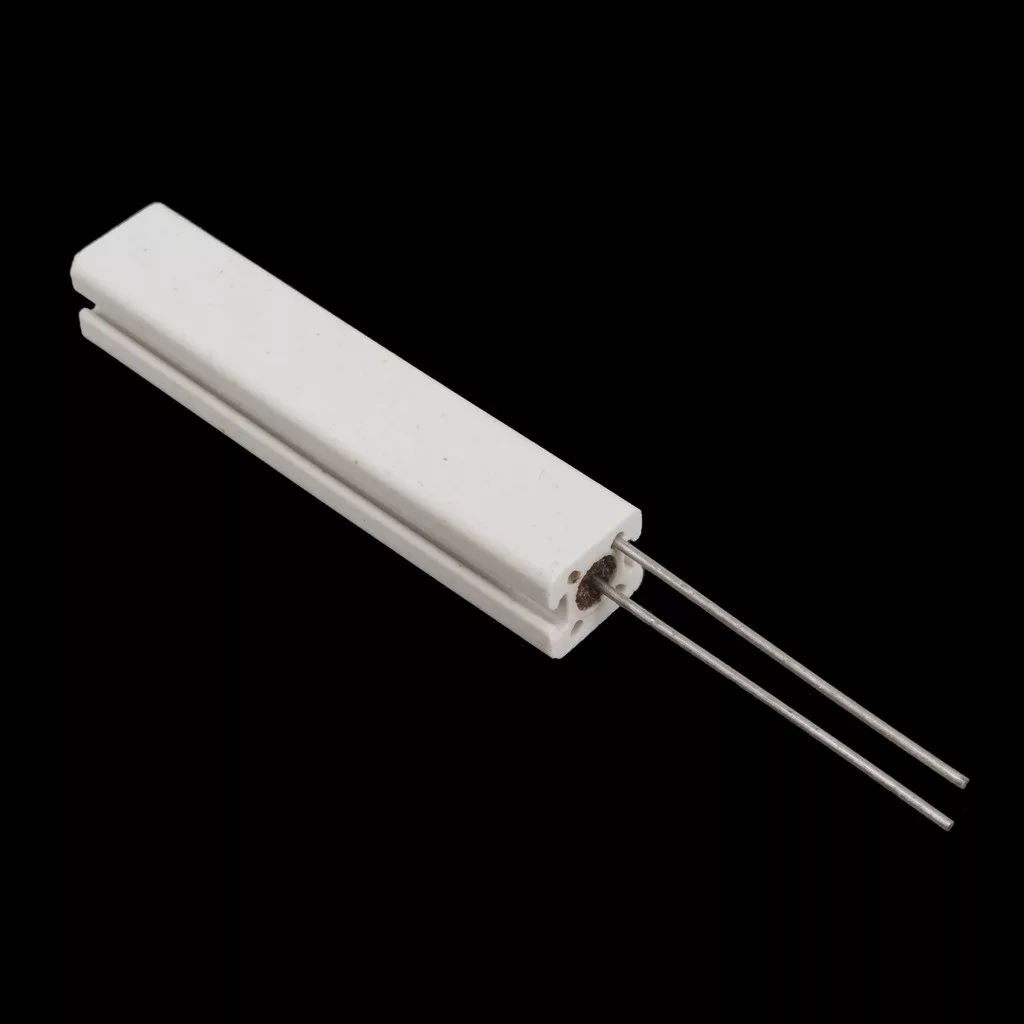

The picture is for illustration purposes only. Please read the product description!

In stock 1 pcs

End of Life

65.2 Ft+ VAT
82.8 Ft incl. VAT

Wirewound Resistor, 11 W 10 % Radial (216-3)

Manufacturer code:

KVS11AKB-RD-1KAA

Manufacturer:

YAGEO (VITROHM) EUROPE

Datasheet:

KVS_serie.pdf

Group:

Wirewound resistors

Component Family:

Wirewound resistors

Product Range:

KV216-3

Resistance R[Ohm]:

1 KOhm

Case Style:

Vertical

Case:

Ceramic

Termination Type:

Through-hole technology

Number of Pins:

Nominal Power [W @ °C]:

11 W @ 70 °C

Tolerance [ % ]:

±10 %

Operating Voltage [V], Max.:

SQRT(P*R)

Insulation Voltage [V], Max.:

2000 V

Temperature Coefficient, T.C. [ppm/°C]:

0 ±40 ppm/°C

External Length [mm]:

9 mm

External Thickness [mm]:

10 mm

External Height [mm]:

50 mm

Raster measure:

RM-9 mm

Operating Temperature Min. [°C]:

-55 °C

Operating Temperature Max. [°C]:

+350 °C

ROHS:

pcs

Our Warehouse

1 pcs

Available for immediate delivery
