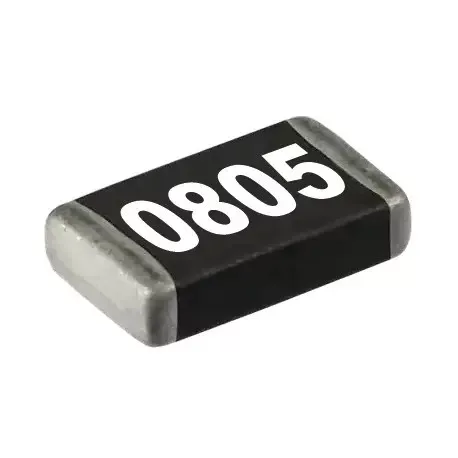

MCTF0805TTY1001 - 1KOhm 0.063W 0.01% 0805 SMD fémréteg ellenállás - NONAME

3.0909 €+ VAT
3.9254 € incl. VAT

MCTF0805TTY1001 - 1KOhm 0.063W 0.01% 0805 SMD fémréteg ellenállás - NONAME

Name: MCTF0805TTY1001 - 1KOhm 0.063W 0.01% 0805 SMD fémréteg ellenállás - NONAME
Brand: NONAME
SKU: 96-12-56
Price: 3.9254 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 198 pcs

3.0909 €+ VAT
3.9254 € incl. VAT

Metallfilm Resistor, 0.063W TK=±10 0.01% 0805 SMD

Manufacturer code:

MCTF0805TTY1001

Manufacturer:

NONAME

Datasheet:

2873558.pdf

Group:

Metal Film Resistors

Component Family:

Metal Film Resistors

Resistance R[Ohm]:

1 KOhm

Case Style:

Horizontal

Case:

0805

Termination Type:

Surface mount (SMD)

Number of Pins:

Nominal Power [W @ °C]:

0.063 W @ 70 °C

Tolerance [ % ]:

±0.01 %

Operating Voltage [V], Max.:

100 V

Temperature Coefficient, T.C. [ppm/°C]:

±10 ppm/°C

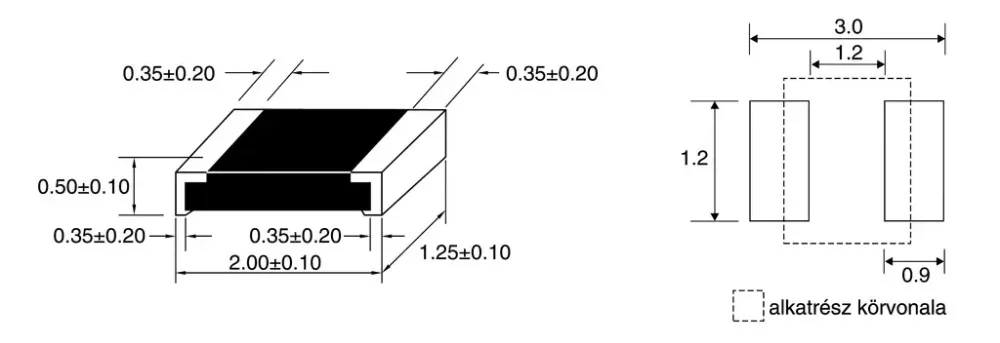

External Length [mm]:

2 mm

External Thickness [mm]:

1.25 mm

External Height [mm]:

0.55 mm

Raster measure:

0805

Operating Temperature Min. [°C]:

-55 °C

Operating Temperature Max. [°C]:

+155 °C

ROHS:

Yes

pcs

Our Warehouse

198 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Weight:

0.0055 g/pcs

Min. order quantity:

10 pcs
