TNPW060312K9BEEA - 12.9KOhm 0.125W 0.1% 0603 SMD fémréteg ellenállás - VISHAY

0.7319 €+ VAT
0.9295 € incl. VAT

TNPW060312K9BEEA - 12.9KOhm 0.125W 0.1% 0603 SMD fémréteg ellenállás - VISHAY

Name: TNPW060312K9BEEA - 12.9KOhm 0.125W 0.1% 0603 SMD fémréteg ellenállás - VISHAY
Brand: VISHAY
SKU: 96-12-29
Price: 0.9295 EUR
Availability: InStock

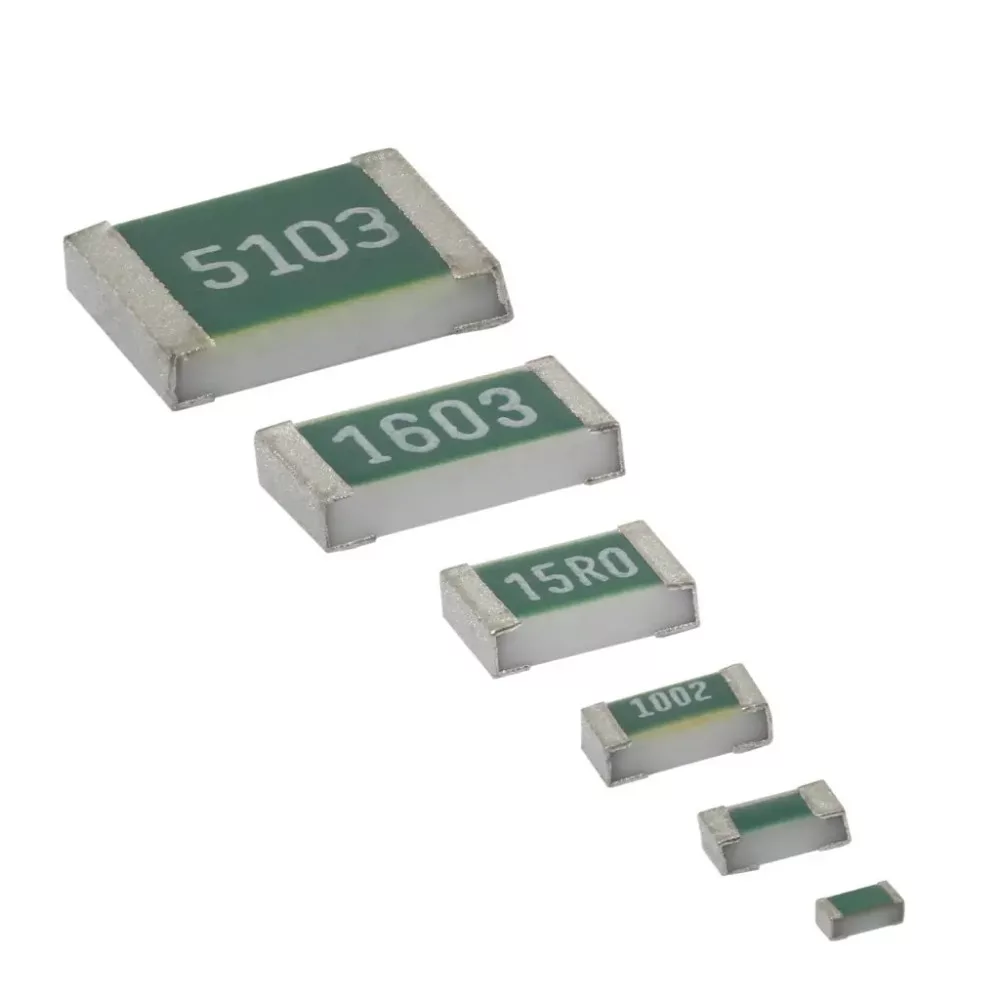

The picture is for illustration purposes only. Please read the product description!

In stock 419 pcs

0.7319 €+ VAT
0.9295 € incl. VAT

Metallfilm Resistor, 0.125W TK=±25 0.1% 0603 SMD

Manufacturer code:

TNPW060312K9BEEA

Manufacturer:

VISHAY

Datasheet:

tnpw_e3.pdf

Group:

Metal Film Resistors

Component Family:

Metal Film Resistors

Product Range:

TNPW0603

Resistance R[Ohm]:

12.9 KOhm

Case Style:

Horizontal

Case:

0603

Termination Type:

Surface mount (SMD)

Number of Pins:

Nominal Power [W @ °C]:

0.125 W @ 70 °C

Tolerance [ % ]:

±0.1 %

Operating Voltage [V], Max.:

75 V

Insulation Voltage [V], Max.:

100 V

Temperature Coefficient, T.C. [ppm/°C]:

±25 ppm/°C

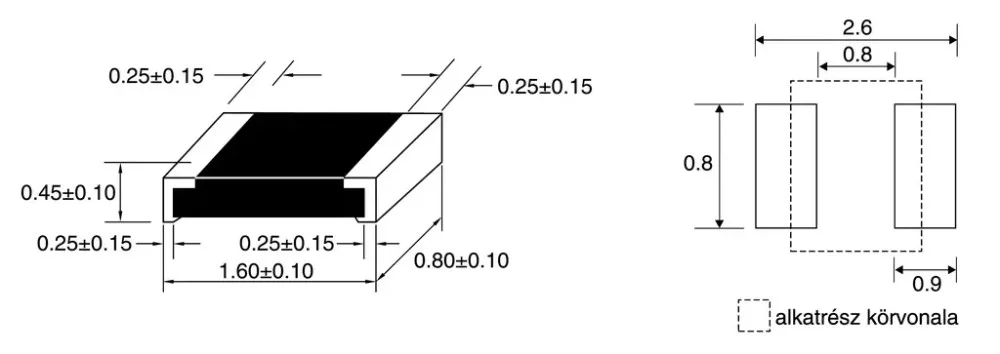

External Length [mm]:

1.6 mm

External Thickness [mm]:

0.8 mm

External Height [mm]:

0.45 mm

Raster measure:

0603

Operating Temperature Min. [°C]:

-55 °C

Operating Temperature Max. [°C]:

+155 °C

ROHS:

Yes

pcs

Our Warehouse

419 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Weight:

0.002 g/pcs

Min. order quantity:

10 pcs
