RSF2WSJT-73-1K5 - 1.5KOhm 2W 5% RM6 fémréteg ellenállás - YAGEO
0.0276 €+ VAT
0.035 € incl. VAT
0.035 € incl. VAT
RSF2WSJT-73-1K5 - 1.5KOhm 2W 5% RM6 fémréteg ellenállás - YAGEO

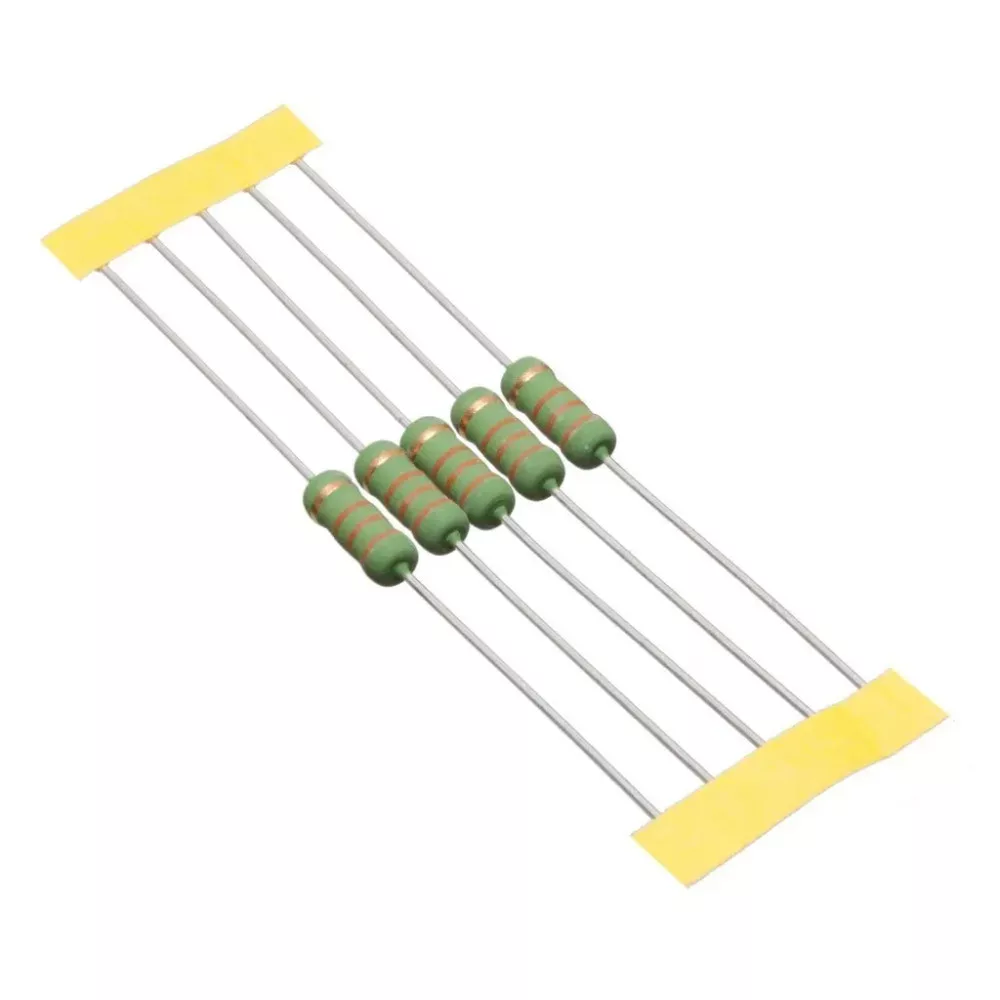

The picture is for illustration purposes only. Please read the product description!
In stock 2320 pcs
0.0276 €+ VAT
0.035 € incl. VAT
0.035 € incl. VAT
Metallfilm Resistor, 2W 5% RM6
Manufacturer code:
RSF2WSJT-73-1K5
Manufacturer:
Datasheet:
Group:
Metal Film Resistors
Component Family:
Product Range:
Resistance R[Ohm]:
Case Style:
Horizontal
Case:
Termination Type:
Through-hole technology
Number of Pins:
2
Nominal Power [W @ °C]:
2 W @ 70 °C
Tolerance [ % ]:
±5 %
Operating Voltage [V], Max.:
350 V
Insulation Voltage [V], Max.:
500 V
Temperature Coefficient, T.C. [ppm/°C]:
±300 ppm/°C

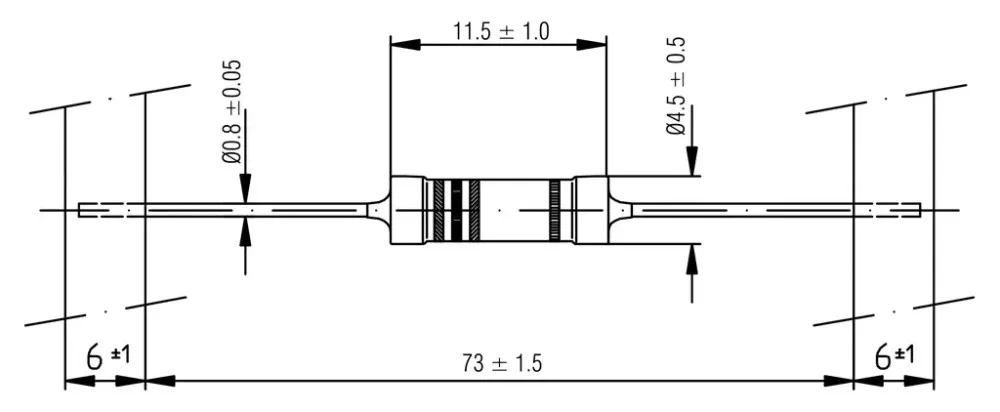

External Length [mm]:
11.5 mm
External Thickness [mm]:
4.5 mm
External Diameter [mm]:
4.5 mm
External Height [mm]:
4.5 mm
Raster measure:
15.24 mm
Operating Temperature Min. [°C]:
-55 °C
Operating Temperature Max. [°C]:
+235 °C
ROHS:
Yes
pcs
Our Warehouse
2320 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Data
Additional Datasheet:
Weight:
0.84 g/pcs
