2 KOhm T63YB Trimmer - VISHAY (SFERNICE) - T63YB202KT20

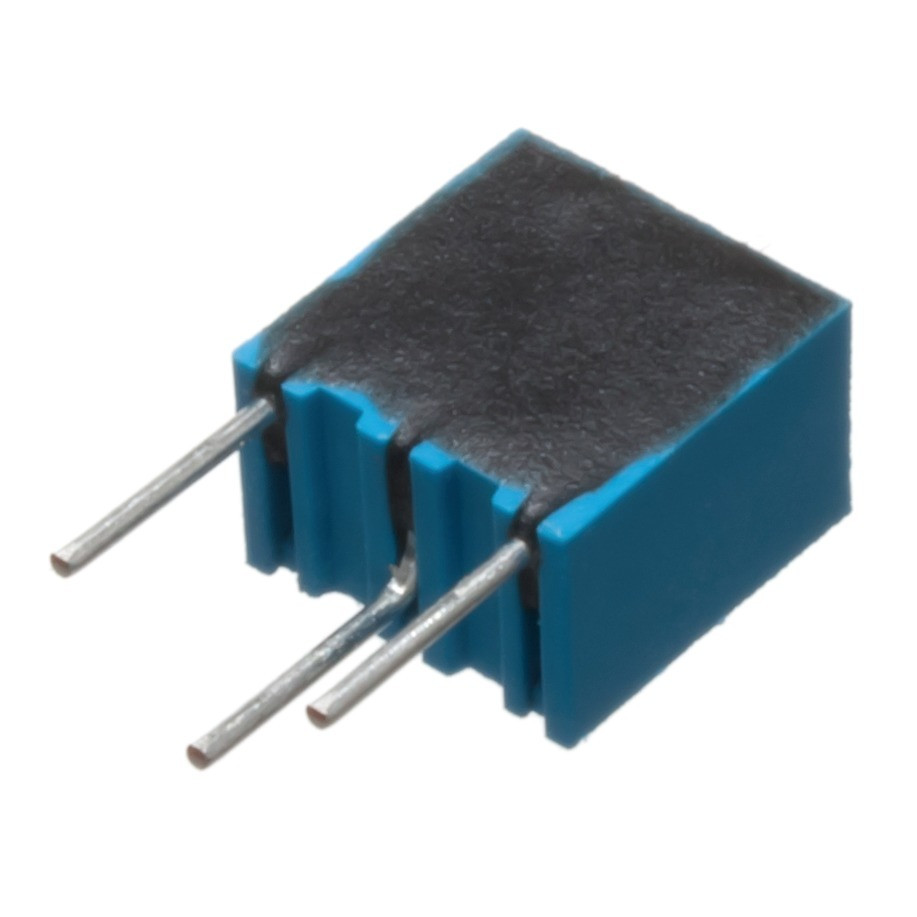

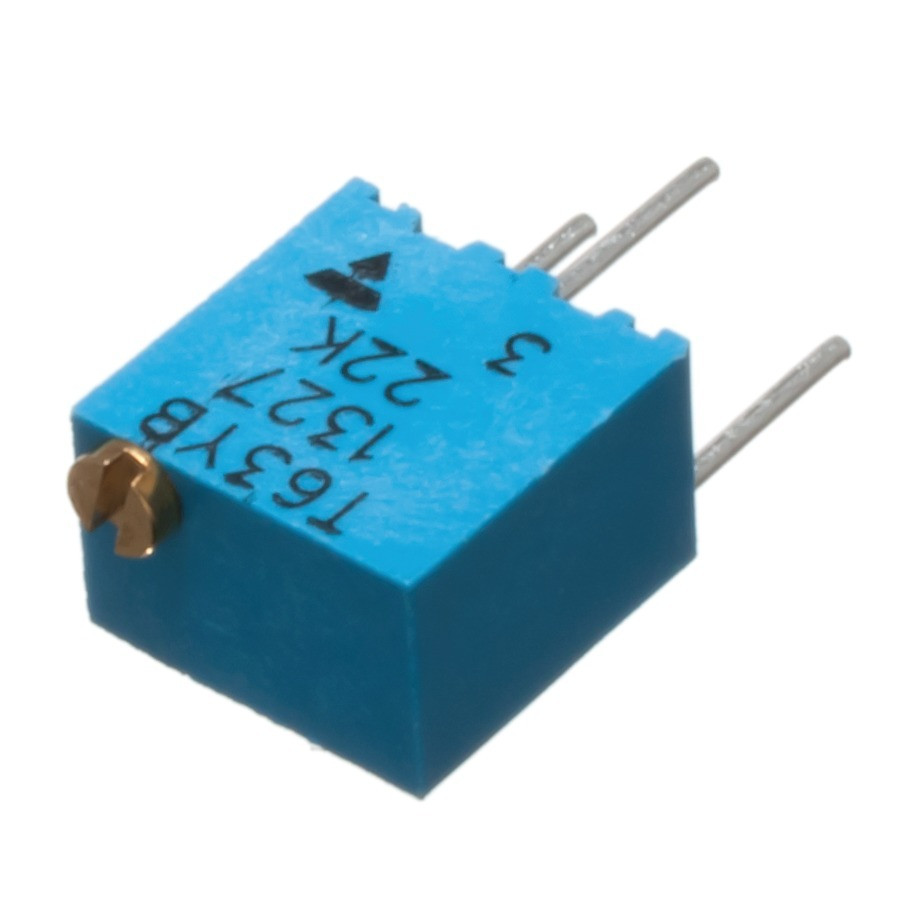

The picture is for illustration purposes only. Please read the product description!
Out of stock
Trimmer T63YB 13±2-Turn, Radial 0.25W
Manufacturer code:
T63YB202KT20
Manufacturer:
Datasheet:
Group:
Trimmer Potentiometers
Component Family:
Product Range:
Resistance R[Ohm]:
Case Style:
PCB-mountable
Case:
Termination Type:
Through-hole technology
Number of Pins:
3
Nominal Power [W @ °C]:
0.25 W @ 70 °C
Tolerance [ % ]:
±10 %
Operating Voltage [V], Max.:
250 V
Insulation Voltage [V], Max.:
1 kV
Temperature Coefficient, T.C. [ppm/°C]:
±100 ppm/°C
Number of turns:
14 ± 2
Rotation Mechanical Angle [°]:
360 °
Dimension Parameters:
6.8x6.8x5 mm
Operating Temperature Min. [°C]:
-55 °C
Operating Temperature Max. [°C]:
+155 °C
ROHS:
Yes
Out of stock
Our Warehouse
0 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
