6AM-O 470 KOhm Potentiometer - OMEG - PC20BU470KAF1CP7
4.4087 €+ VAT
5.5991 € incl. VAT
5.5991 € incl. VAT
6AM-O 470 KOhm Potentiometer - OMEG - PC20BU470KAF1CP7
The picture is for illustration purposes only. Please read the product description!
Related Categories:
In stock 16 pcs
4.4087 €+ VAT
5.5991 € incl. VAT
5.5991 € incl. VAT

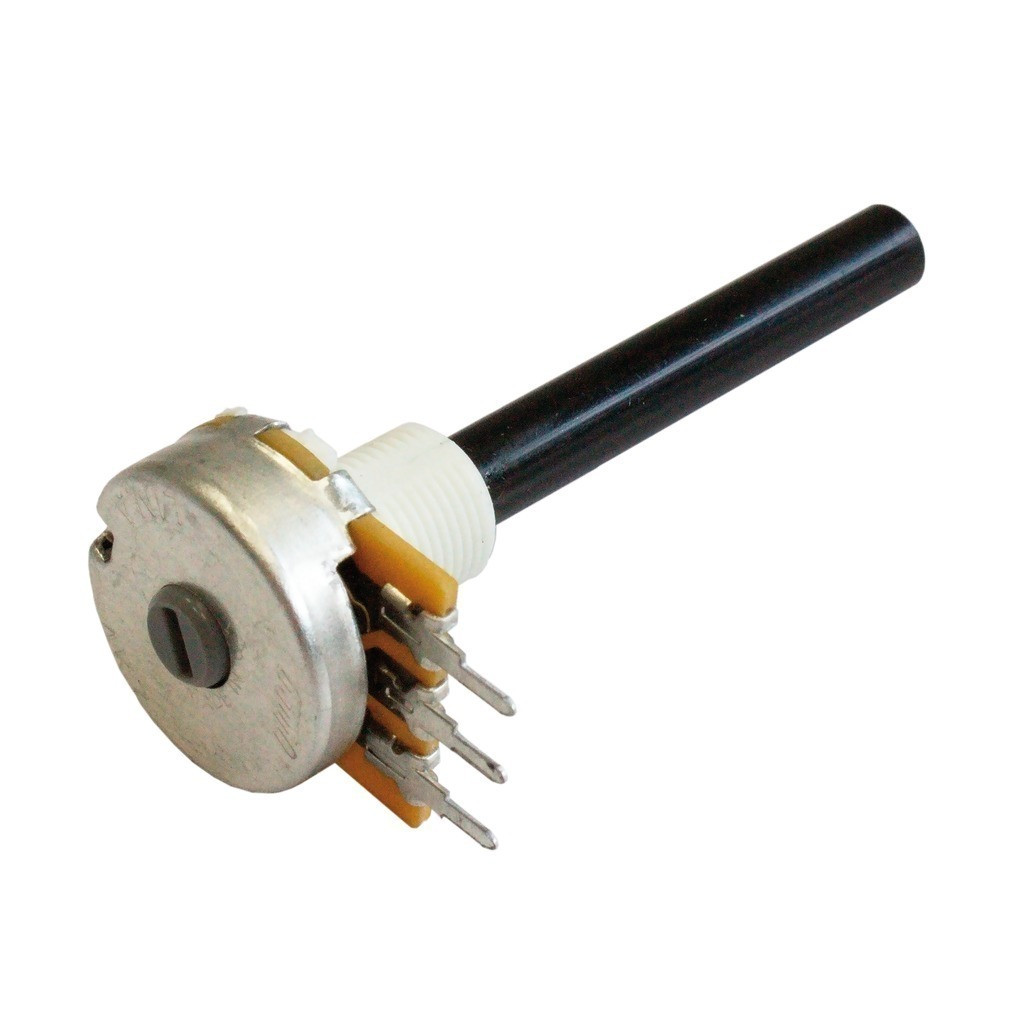

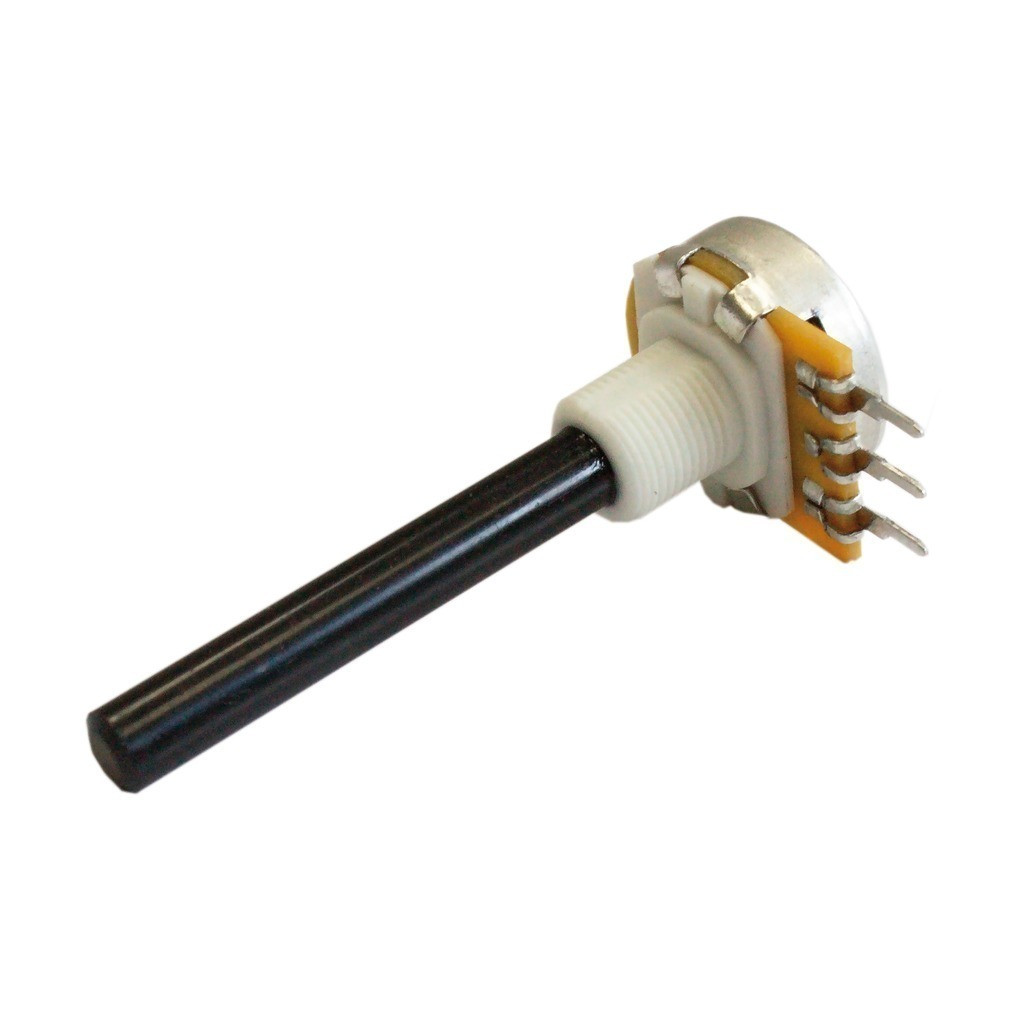

Rotary Potentiometer, LIN-mono D=6mm Spindle
Manufacturer code:
PC20BU470KAF1CP7
Manufacturer:
Datasheet:
Group:
Rotary Potentiometers
Component Family:
Product Range:
Resistance R[Ohm]:
Case Style:
Through-hole (THT), front panel mount
Case:
Termination Type:
Through-hole technology
Number of Pins:
3
Nominal Power [W @ °C]:
0.4 W @ 40 °C
Tolerance [ % ]:
±20 %
Operating Voltage [V], Max.:
500 V
Insulation Voltage [V], Max.:
1 kV
Temperature Coefficient, T.C. [ppm/°C]:
+300/-500 ppm/°C
Number of turns:
1
Rotation Mechanical Angle [°]:
300° ± 5°
Dimension Parameters:
D=20.4 mm,H=17.7mm + tengely
Characteristic:
Linear (A)
Shaft Diameter [mm]:
6 mm
Shaft Material:
Plastic
Operating Temperature Min. [°C]:
-25 °C
Operating Temperature Max. [°C]:
+70 °C
ROHS:
Yes
pcs
Our Warehouse
16 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Customers also bought this
Data
Additional Datasheet:
Weight:
7.44 g/pcs
