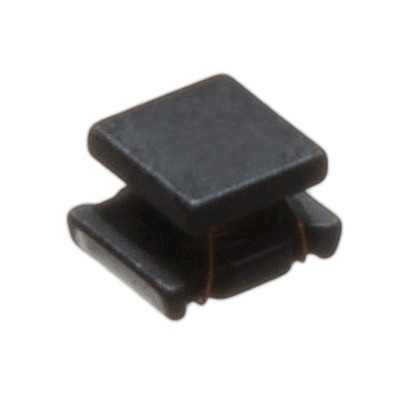

LQH32CN100K23L - 10uH SMD ±10% induktivitás - MURATA
The picture is for illustration purposes only. Please read the product description!
Out of stock
Inductance, SMD ±10% 300mA0.44Ohm 1210
Manufacturer code:
LQH32CN100K23L
Manufacturer:
Datasheet:
Group:
Inductors
Component Family:
Product Range:
Case Style:
Surface Mount (SMD)
Case:
Termination Type:
Surface mount (SMD)
Number of Pins:
2
Tolerance [ % ]:
±10 %

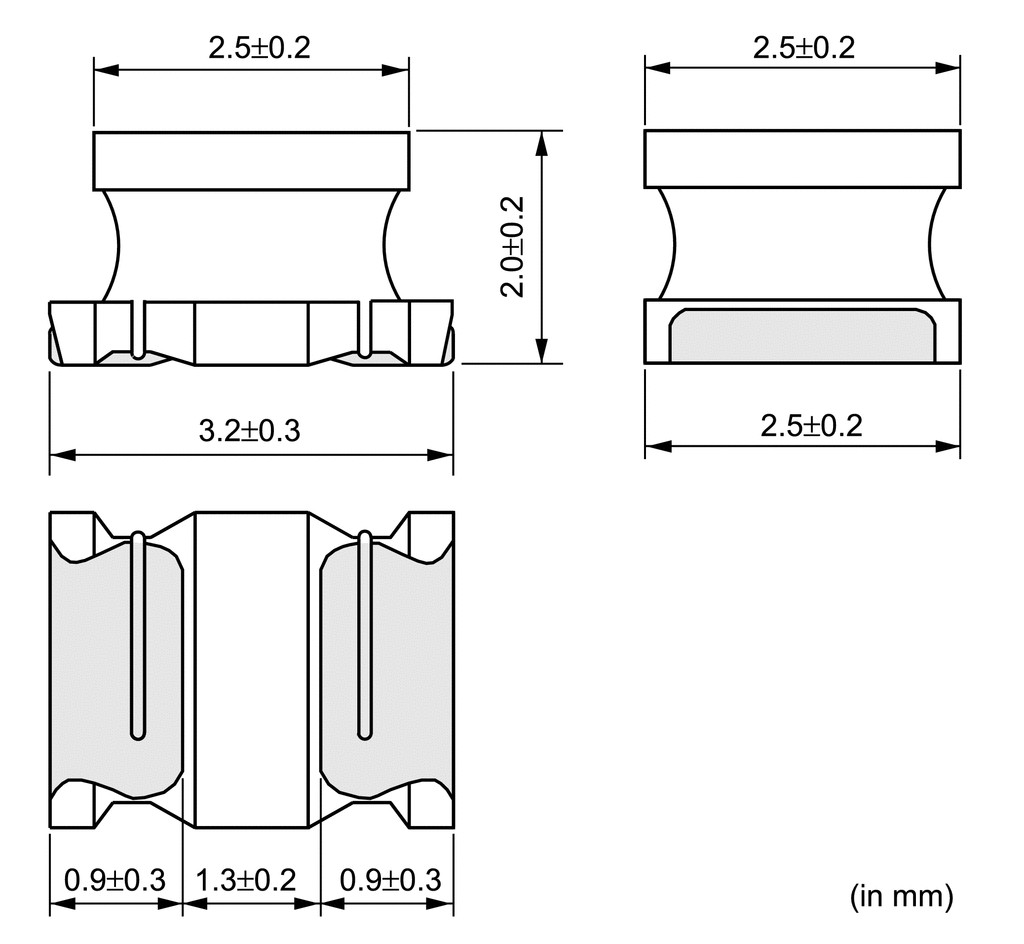

External Length [mm]:
3.2 mm
External Width [mm]:
2.5 mm
External Height [mm]:
2 mm
Raster measure:
1210
Inductance [H]:
10 µH
Current Rating [A], Max:
0.3 A
DC Resistance [Ohm], Max.:
0.44 Ohm
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
Yes
Our Warehouse
0 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Data
Weight:
0.06 g/pcs
