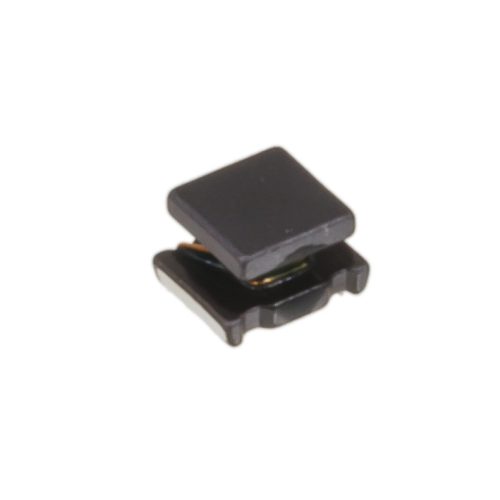

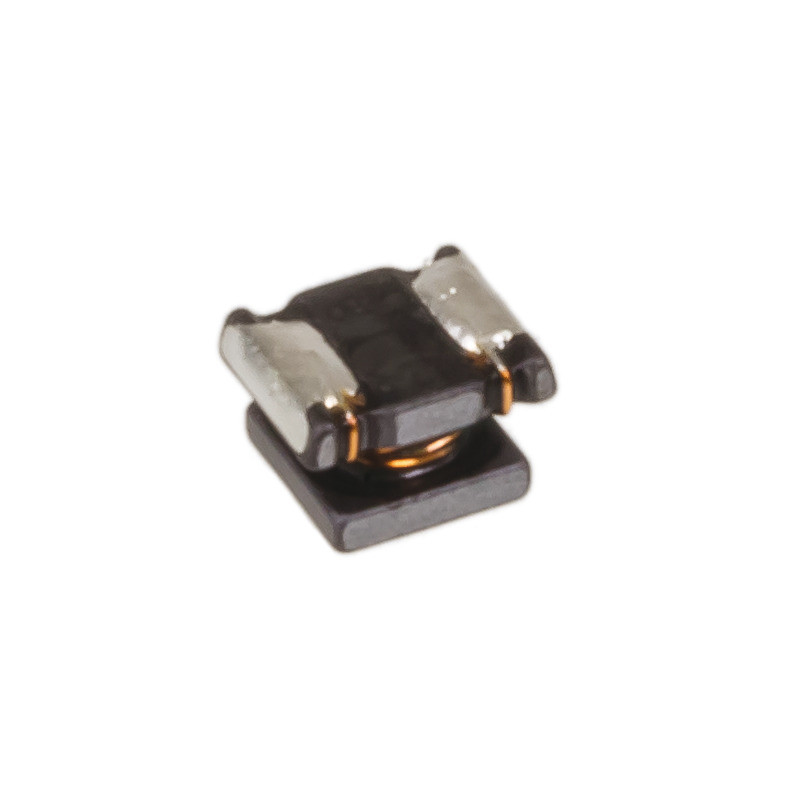

LQH3C221K04 - 220uH SMD ±10% induktivitás - MURATA
The picture is for illustration purposes only. Please read the product description!
Out of stock
Inductance, SMD ±10% 70mA8,4Ohm 3,2mm
Manufacturer code:
LQH3C221K04
Manufacturer:
Datasheet:
Group:
Inductors
Component Family:
Product Range:
Case Style:
Surface Mount (SMD)
Case:
Termination Type:
Surface mount (SMD)
Number of Pins:
2
Tolerance [ % ]:
±10 %
External Length [mm]:
3.2 mm
External Width [mm]:
2.5 mm
External Height [mm]:
2 mm
Raster measure:
3.2 mm
Inductance [H]:
220 µH
Current Rating [A], Max:
0.07 A
DC Resistance [Ohm], Max.:
8.4 Ohm
Operating Temperature Min. [°C]:
-25 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
No
Our Warehouse
0 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
