1.5 mH ±20% Axial 77A - FASTRON - 77A-152M-00
1.3879 €+ VAT
1.7627 € incl. VAT
1.7627 € incl. VAT
1.5 mH ±20% Axial 77A - FASTRON - 77A-152M-00

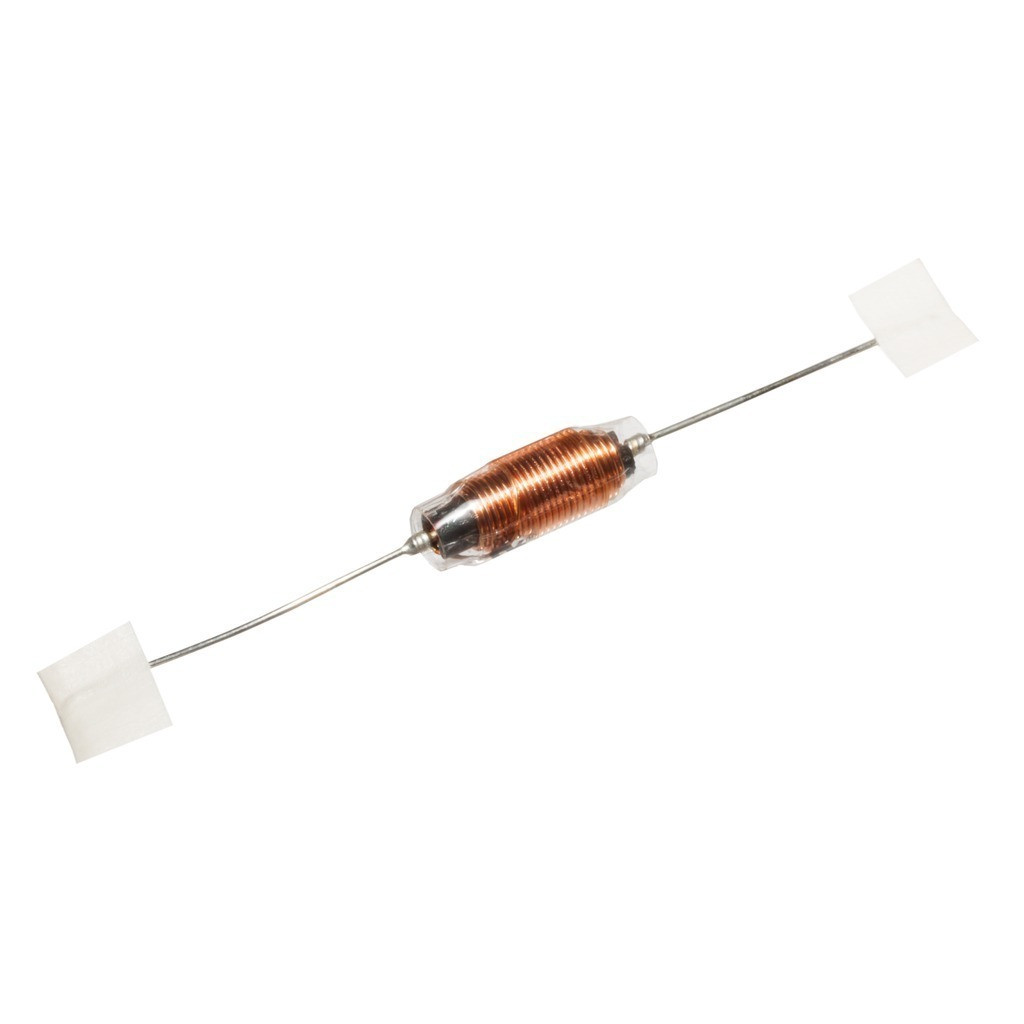

The picture is for illustration purposes only. Please read the product description!
In stock 10 pcs
1.3879 €+ VAT
1.7627 € incl. VAT
1.7627 € incl. VAT
Inductance, ±20% Axial 0.7A d=11x26mm
Manufacturer code:
77A-152M-00
Manufacturer:
Datasheet:
Group:
Inductors
Component Family:
Product Range:
Case Style:
Axial, through-hole
Case:
Termination Type:
Through-hole technology
Number of Pins:
2
Tolerance [ % ]:
±20 %
External Length [mm]:
26 mm
External Diameter [mm]:
11 mm
External Width [mm]:
11 mm
External Height [mm]:
11 mm
Raster measure:
RM>26mm
Inductance [H]:
1.5 mH
Current Rating [A], Max:
0.7 A
DC Resistance [Ohm], Max.:
2.4 Ohm
Operating Temperature Min. [°C]:
-55 °C
Operating Temperature Max. [°C]:
+125 °C
ROHS:
Yes
pcs
Our Warehouse
10 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Data
Additional Datasheet:
Weight:
4.39 g/pcs
