ABM8G-12.000MHZ-B4Y-T - 12MHz 30/30ppm SMD Cl=10pF 3.2x2.5x1mm kvarc - ABRACON

1.3782 €+ VAT
1.7503 € incl. VAT

ABM8G-12.000MHZ-B4Y-T - 12MHz 30/30ppm SMD Cl=10pF 3.2x2.5x1mm kvarc - ABRACON

Name: ABM8G-12.000MHZ-B4Y-T - 12MHz 30/30ppm SMD Cl=10pF 3.2x2.5x1mm kvarc - ABRACON
Brand: ABRACON
SKU: 62-03-57
Price: 1.7503 EUR
Availability: InStock

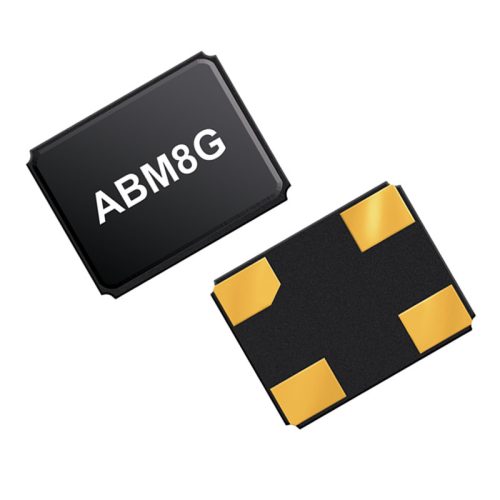

The picture is for illustration purposes only. Please read the product description!

In stock 499 pcs

1.3782 €+ VAT
1.7503 € incl. VAT

Quartz Crystal, SMD 12MHz 30/30ppm SMD Cl=10pF 3.2x2.5x1mm

Manufacturer code:

ABM8G-12.000MHZ-B4Y-T

Manufacturer:

ABRACON

Datasheet:

ABM8G.pdf

Group:

Crystals

Component Family:

Quartz in SMD housing

Product Range:

ABM8G

Frequency [MHz]:

12 MHz

Case Style:

Surface Mount (SMD)

Case:

3.2x2.5x1mm

Termination Type:

Surface mount (SMD)

Number of Pins:

External Length [mm]:

3.2 mm

External Width [mm]:

2.5 mm

External Height [mm]:

1.0 mm

Raster measure:

1.2 mm

Frequency Tolerance [ppm @ °C]:

± 30 ppm @ 25 °C

Temperature Stability [ppm]:

± 30 ppm

Load Capacitance [pF]:

10 pF

Operating Temperature Min. [°C]:

-20 °C

Operating Temperature Max. [°C]:

+70 °C

ROHS:

Yes

pcs

Our Warehouse

499 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Weight:

0.016 g/pcs
