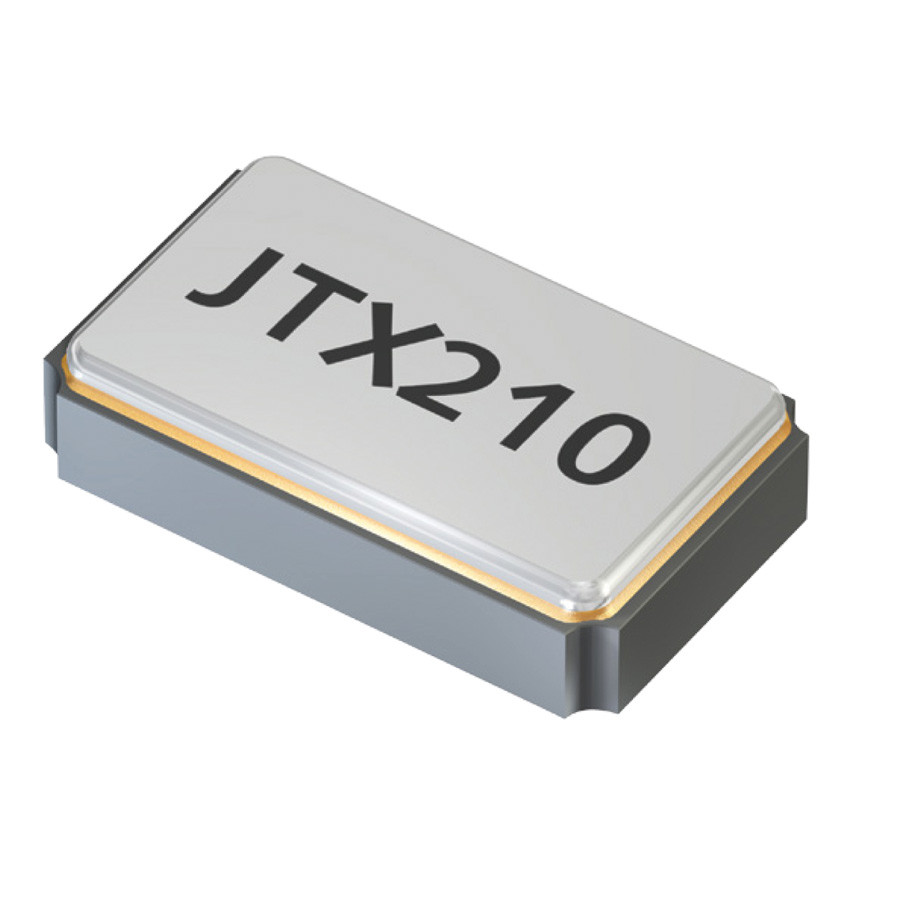

Q0,032768-JTX210-12,5-20-LF - 32.768KHz SMD 0805 ±20ppm Cl=12,5pF 2.0x1.2x0.6mm kvarc - JAUCH

0.7819 €+ VAT
0.9931 € incl. VAT

Q0,032768-JTX210-12,5-20-LF - 32.768KHz SMD 0805 ±20ppm Cl=12,5pF 2.0x1.2x0.6mm kvarc - JAUCH

Name: Q0,032768-JTX210-12,5-20-LF - 32.768KHz SMD 0805 ±20ppm Cl=12,5pF 2.0x1.2x0.6mm kvarc - JAUCH
Brand: JAUCH
SKU: 62-03-39
Price: 0.9931 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 1949 pcs

0.7819 €+ VAT
0.9931 € incl. VAT

Quartz Crystal, SMD 0805 ±20ppm Cl=12,5pF 2.0x1.2x0.6mm

Manufacturer code:

Q0,032768-JTX210-12,5-20-LF

Manufacturer:

JAUCH

Datasheet:

jtx210_181112.pdf

Group:

Crystals

Component Family:

Crystal for RTC in SMD package

Product Range:

JTX210

Frequency [MHz]:

32.768 KHz

Case Style:

Surface Mount (SMD)

Case:

JTX210

Termination Type:

Surface mount (SMD)

Number of Pins:

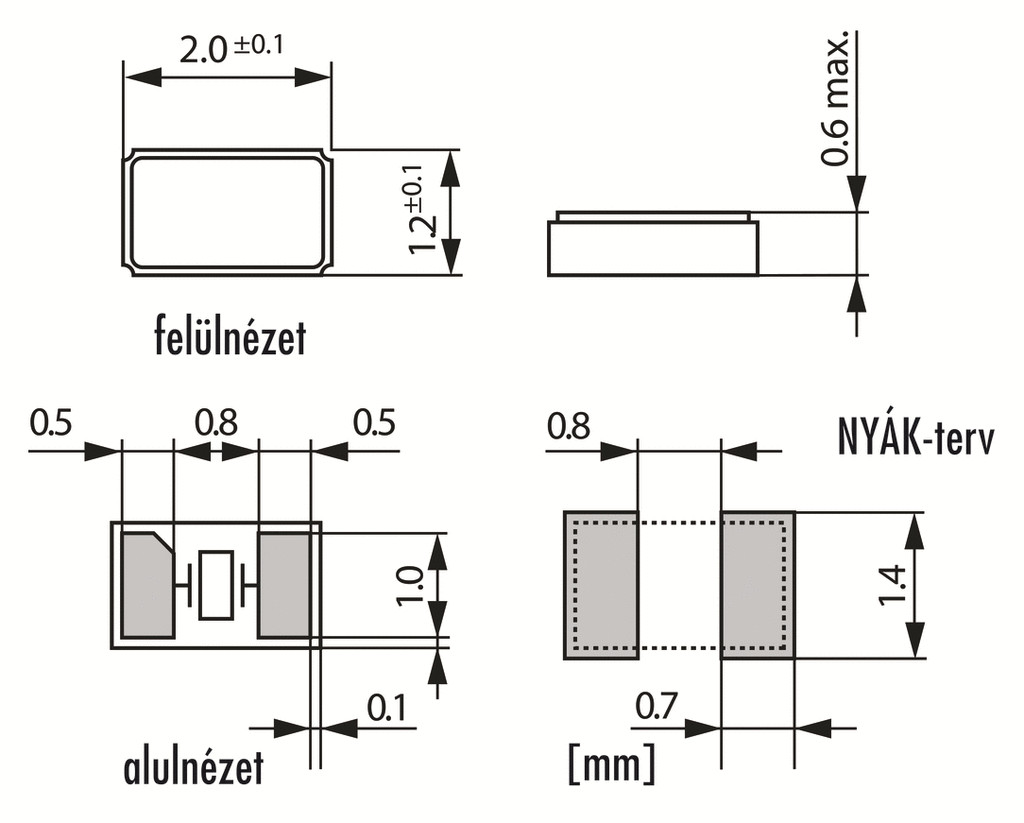

External Length [mm]:

2.0 mm

External Width [mm]:

1.2 mm

External Height [mm]:

0.6 mm

Raster measure:

0805

Frequency Tolerance [ppm @ °C]:

± 20 ppm @ 25 °C

Load Capacitance [pF]:

12.5 pF

Operating Temperature Min. [°C]:

-20 °C

Operating Temperature Max. [°C]:

+70 °C

ROHS:

Yes

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

100

0,43 €

0,55 €

Our Warehouse

1949 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

ROHS_Jauch.pdf
