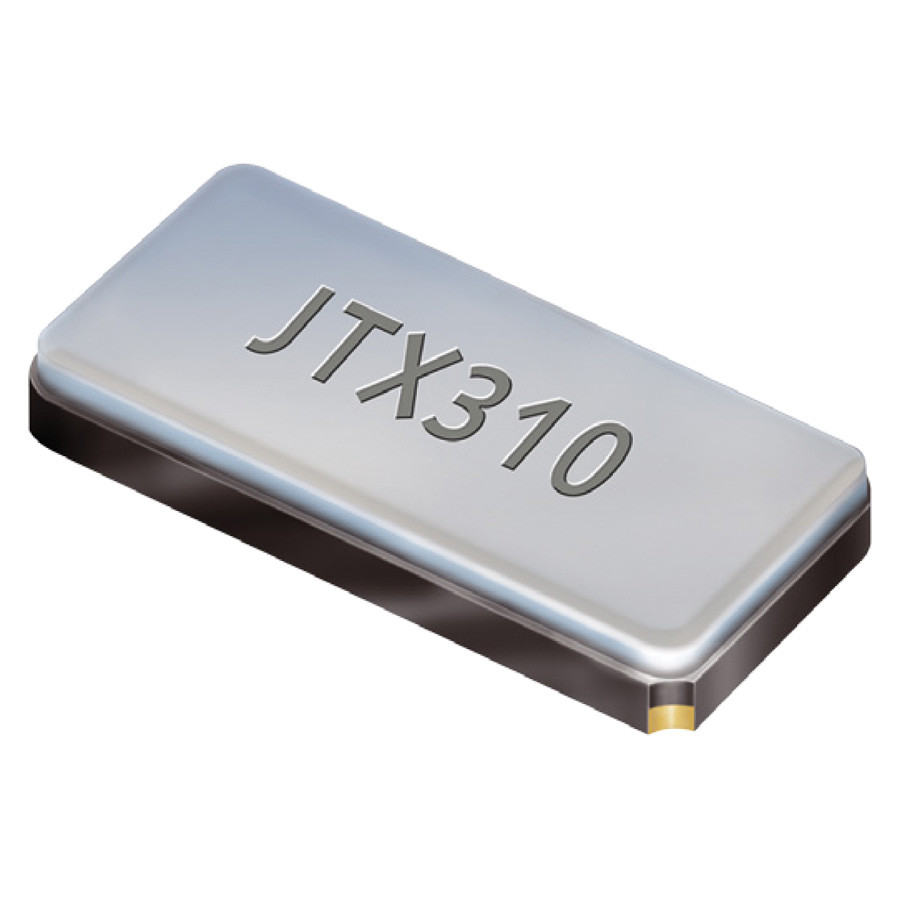

Q0,032768-JTX310-12,5-20-LF - 32.768KHz SMD 1206 ±20ppm Cl=12,5pF 3.2x1.5x0.9mm kvarc - JAUCH
The picture is for illustration purposes only. Please read the product description!
Out of stock

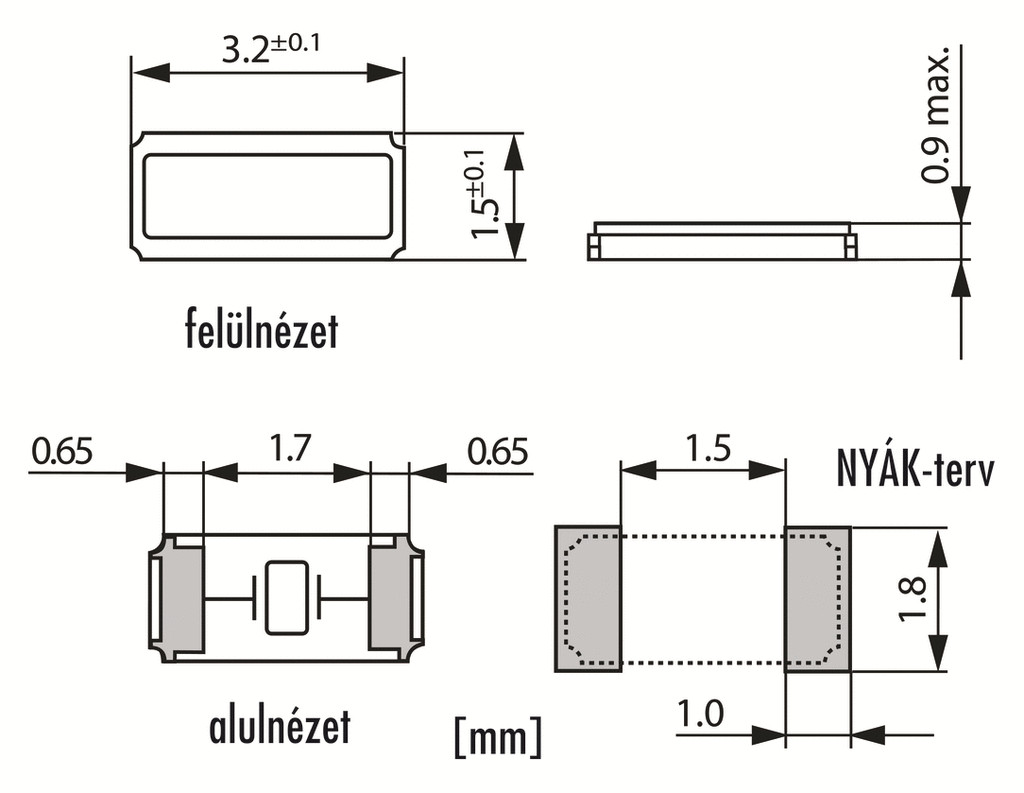

Quartz Crystal, SMD 1206 ±20ppm Cl=12,5pF 3.2x1.5x0.9mm
Manufacturer code:
Q0,032768-JTX310-12,5-20-LF
Manufacturer:
Datasheet:
Group:
Crystals
Component Family:
Product Range:
Frequency [MHz]:
32.768 KHz
Case Style:
Surface Mount (SMD)
Case:
Termination Type:
Surface mount (SMD)
Number of Pins:
2
External Length [mm]:
3.2 mm
External Width [mm]:
1.5 mm
External Height [mm]:
0.9 mm
Raster measure:
1206
Frequency Tolerance [ppm @ °C]:
± 20 ppm @ 25 °C
Load Capacitance [pF]:
12.5 pF
Operating Temperature Min. [°C]:
-20 °C
Operating Temperature Max. [°C]:
+70 °C
ROHS:
Yes
Our Warehouse
0 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
