Q4,0-SMU3-30-30/50-T1-LF - 4MHz 30ppm SMD Cl=30pF, -40..85°C HC-49/U4H SMD (SMU3) kvarc - JAUCH

0.3952 €+ VAT
0.5019 € incl. VAT

Q4,0-SMU3-30-30/50-T1-LF - 4MHz 30ppm SMD Cl=30pF, -40..85°C HC-49/U4H SMD (SMU3) kvarc - JAUCH

Name: Q4,0-SMU3-30-30/50-T1-LF - 4MHz 30ppm SMD Cl=30pF, -40..85°C HC-49/U4H SMD (SMU3) kvarc - JAUCH
Brand: JAUCH
SKU: 62-03-32
Price: 0.5019 EUR
Availability: InStock

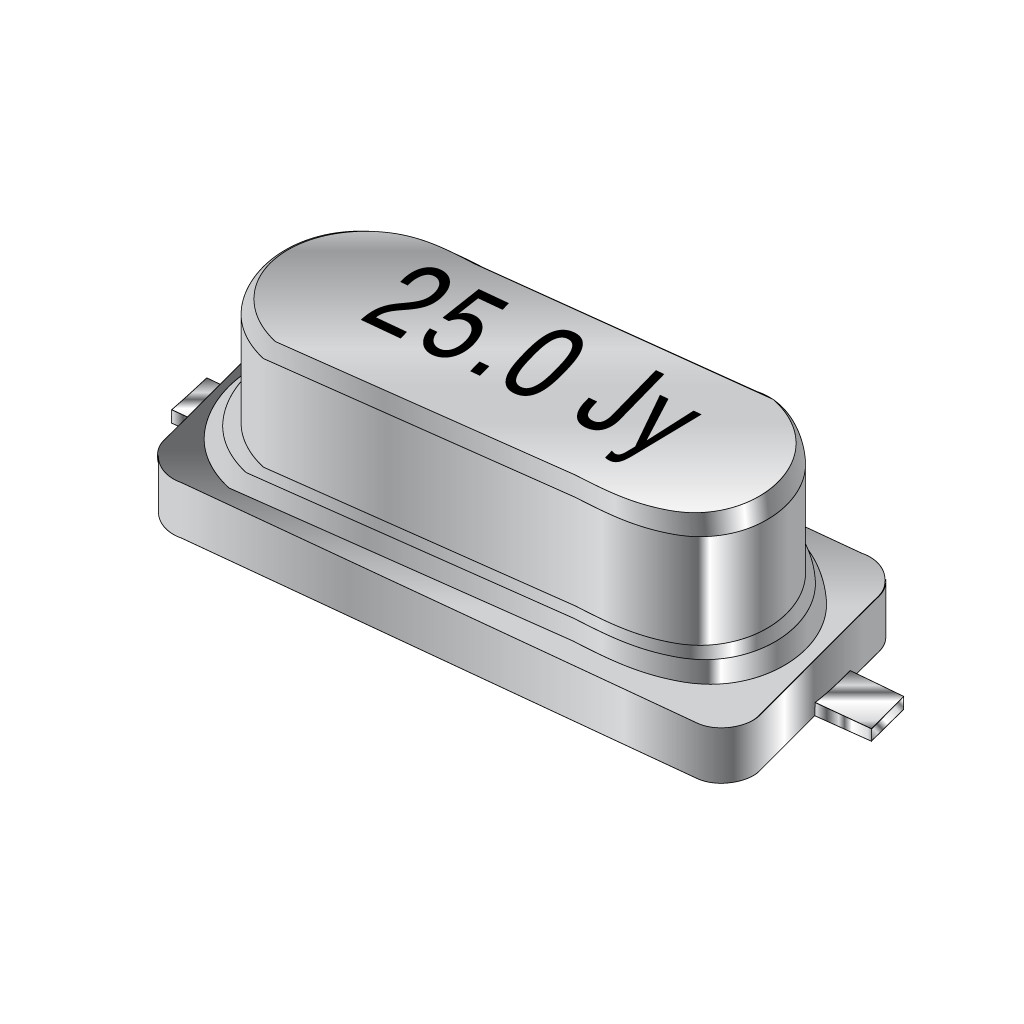

The picture is for illustration purposes only. Please read the product description!

In stock 1302 pcs

0.3952 €+ VAT
0.5019 € incl. VAT

Quartz Crystal, 30ppm SMD Cl=30pF, -40..85°C HC-49/U4H SMD (SMU3)

Manufacturer code:

Q4,0-SMU3-30-30/50-T1-LF

Manufacturer:

JAUCH

Datasheet:

SMU3-271112.pdf

Group:

Crystals

Component Family:

Crystal, SMQ-series SMU3

Product Range:

SMU3

Frequency [MHz]:

4 MHz

Case Style:

Surface Mount (SMD)

Case:

HC-49/U4H SMD (SMU3)

Termination Type:

Surface mount (SMD)

Number of Pins:

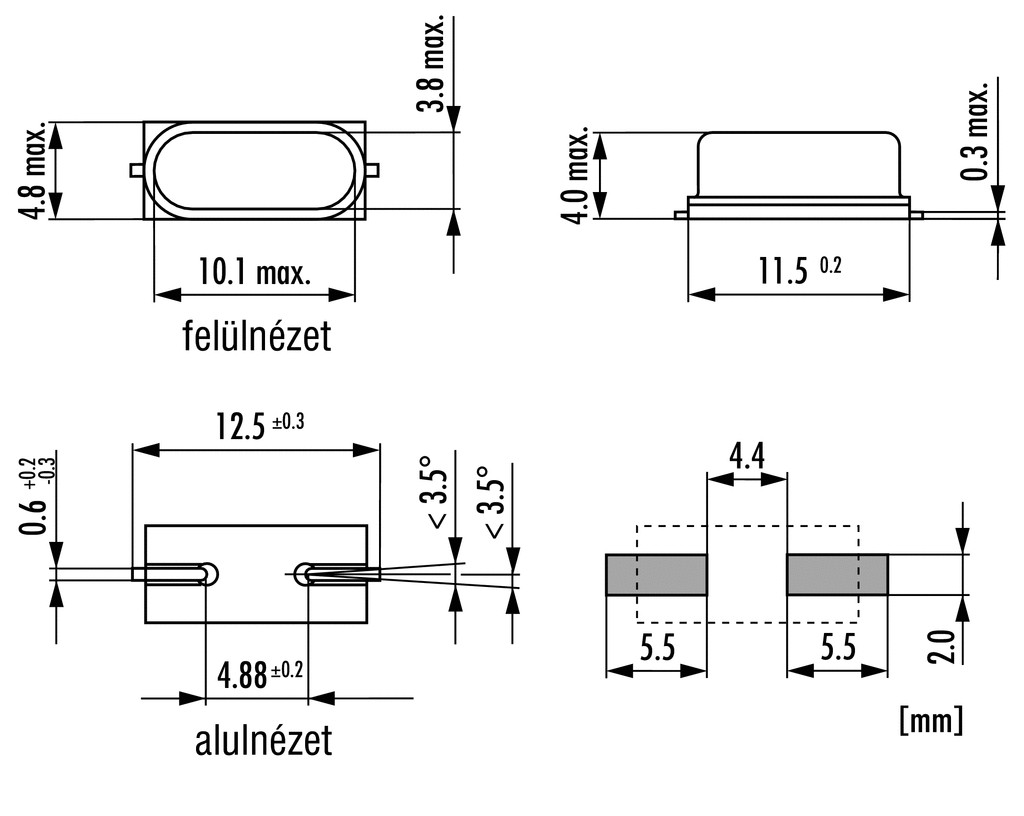

External Length [mm]:

11.7 mm

External Width [mm]:

4.8 mm

External Height [mm]:

4 mm

Raster measure:

4.4 mm

Frequency Tolerance [ppm @ °C]:

± 30 ppm @ 25 °C

Temperature Stability [ppm]:

± 50 ppm

Load Capacitance [pF]:

30 pF

Operating Temperature Min. [°C]:

-40 °C

Operating Temperature Max. [°C]:

+85 °C

ROHS:

Yes

pcs

Quantity discount:

Quantity [pcs]

Net [EUR]

Gross [EUR]

100

0,27 €

0,34 €

Our Warehouse

1302 pcs

Available for immediate delivery

Info

Additional Datasheet:

ROHS_Jauch.pdf
