Q0,032768-SM26F-12,5-20-B-TR-LF - 32.768KHz SMD SM26F B ±20ppm Cl=12,5pF d=2x6mm kvarc - JAUCH

0.6864 €+ VAT
0.8717 € incl. VAT

Q0,032768-SM26F-12,5-20-B-TR-LF - 32.768KHz SMD SM26F B ±20ppm Cl=12,5pF d=2x6mm kvarc - JAUCH

Name: Q0,032768-SM26F-12,5-20-B-TR-LF - 32.768KHz SMD SM26F B ±20ppm Cl=12,5pF d=2x6mm kvarc - JAUCH
Brand: JAUCH
SKU: 62-02-97
Price: 0.8717 EUR
Availability: InStock

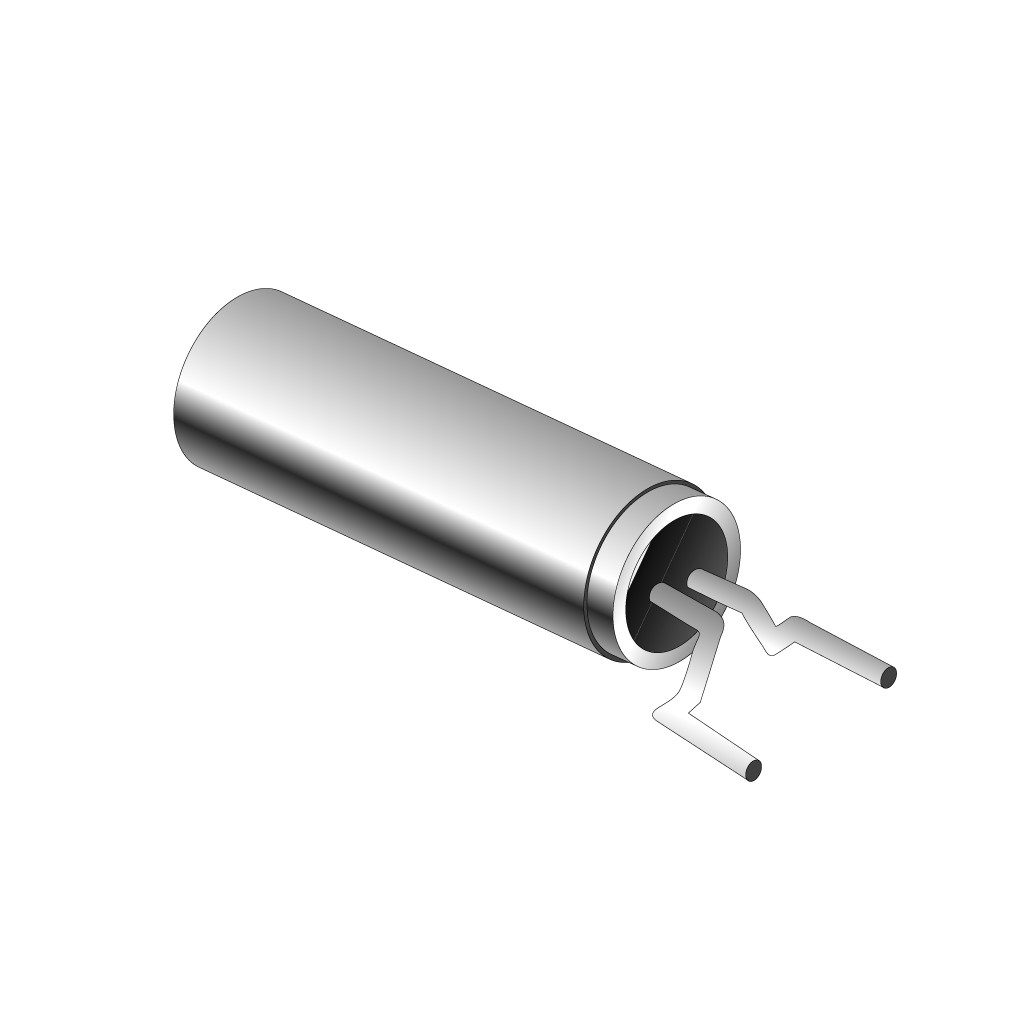

The picture is for illustration purposes only. Please read the product description!

In stock 2071 pcs

0.6864 €+ VAT
0.8717 € incl. VAT

Quartz Crystal, SMD SM26F B ±20ppm Cl=12,5pF d=2x6mm

Manufacturer code:

Q0,032768-SM26F-12,5-20-B-TR-LF

Manufacturer:

JAUCH

Datasheet:

Jauch_SM26F.pdf

Group:

Crystals

Component Family:

Crystal for RTC in SMD package

Product Range:

SM26F

Frequency [MHz]:

32.768 KHz

Case Style:

Surface Mount (SMD)

Case:

SM26F

Termination Type:

Surface mount (SMD)

Number of Pins:

External Length [mm]:

1.9 mm

External Diameter [mm]:

1.9 mm

External Width [mm]:

1.9 mm

External Height [mm]:

6 mm

Raster measure:

2.54 mm

Frequency Tolerance [ppm @ °C]:

± 20 ppm @ 25 °C

Load Capacitance [pF]:

12.5 pF

Operating Temperature Min. [°C]:

-20 °C

Operating Temperature Max. [°C]:

+70 °C

ROHS:

Yes

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

100

0,49 €

0,62 €

Our Warehouse

2050 pcs

Available for immediate delivery

Our Shop in Szeged

21 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_D_004.pdf ROHS_Jauch.pdf
