Q32,0-SMU2-30-30/50-FU-LF - 32MHz 30ppm SMD Cl=30pF HC-49/U2H SMD (SMU2) kvarc - JAUCH

0.2877 €+ VAT
0.3653 € incl. VAT

Q32,0-SMU2-30-30/50-FU-LF - 32MHz 30ppm SMD Cl=30pF HC-49/U2H SMD (SMU2) kvarc - JAUCH

Name: Q32,0-SMU2-30-30/50-FU-LF - 32MHz 30ppm SMD Cl=30pF HC-49/U2H SMD (SMU2) kvarc - JAUCH
Brand: JAUCH
SKU: 62-02-26
Price: 0.3653 EUR
Availability: InStock

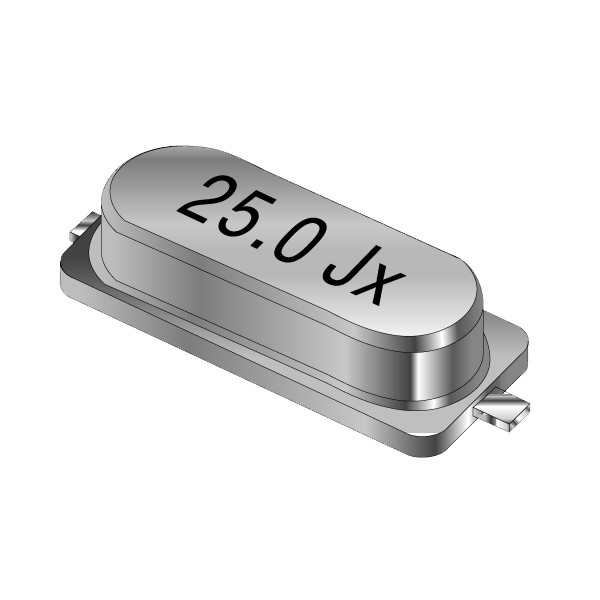

The picture is for illustration purposes only. Please read the product description!

In stock 609 pcs

0.2877 €+ VAT
0.3653 € incl. VAT

Quartz Crystal, 30ppm SMD Cl=30pF HC-49/U2H SMD (SMU2)

Manufacturer code:

Q32,0-SMU2-30-30/50-FU-LF

Manufacturer:

JAUCH

Datasheet:

SMU2-271112.pdf

Group:

Crystals

Component Family:

Crystal, SMQ-series SMU2

Product Range:

SMU2

Frequency [MHz]:

32 MHz

Case Style:

Surface Mount (SMD)

Case:

HC-49/U2H SMD (SMU2)

Termination Type:

Surface mount (SMD)

Number of Pins:

External Length [mm]:

11.7 mm

External Width [mm]:

4.8 mm

External Height [mm]:

3 mm

Raster measure:

4.4 mm

Frequency Tolerance [ppm @ °C]:

± 30 ppm @ 25 °C

Temperature Stability [ppm]:

± 50 ppm

Load Capacitance [pF]:

30 pF

Operating Temperature Min. [°C]:

-20 °C

Operating Temperature Max. [°C]:

+70 °C

ROHS:

Yes

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

0,20 €

0,25 €

Our Warehouse

609 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_D_003.pdf ROHS_Jauch.pdf
