Q-4,0-SMU4-12-20/30-LF - 4MHz 20ppm SMD Cl=12pF HC-49/U4H SMD (SMU4) kvarc - JAUCH

0.5204 €+ VAT
0.6609 € incl. VAT

Q-4,0-SMU4-12-20/30-LF - 4MHz 20ppm SMD Cl=12pF HC-49/U4H SMD (SMU4) kvarc - JAUCH

Name: Q-4,0-SMU4-12-20/30-LF - 4MHz 20ppm SMD Cl=12pF HC-49/U4H SMD (SMU4) kvarc - JAUCH
Brand: JAUCH
SKU: 62-02-24
Price: 0.6609 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 945 pcs

0.5204 €+ VAT
0.6609 € incl. VAT

Quartz Crystal, 20ppm SMD Cl=12pF HC-49/U4H SMD (SMU4)

Manufacturer code:

Q-4,0-SMU4-12-20/30-LF

Manufacturer:

JAUCH

Datasheet:

SMU4-180711.pdf

Group:

Crystals

Component Family:

Crystal

Product Range:

SMU4

Frequency [MHz]:

4 MHz

Case Style:

Surface Mount (SMD)

Case:

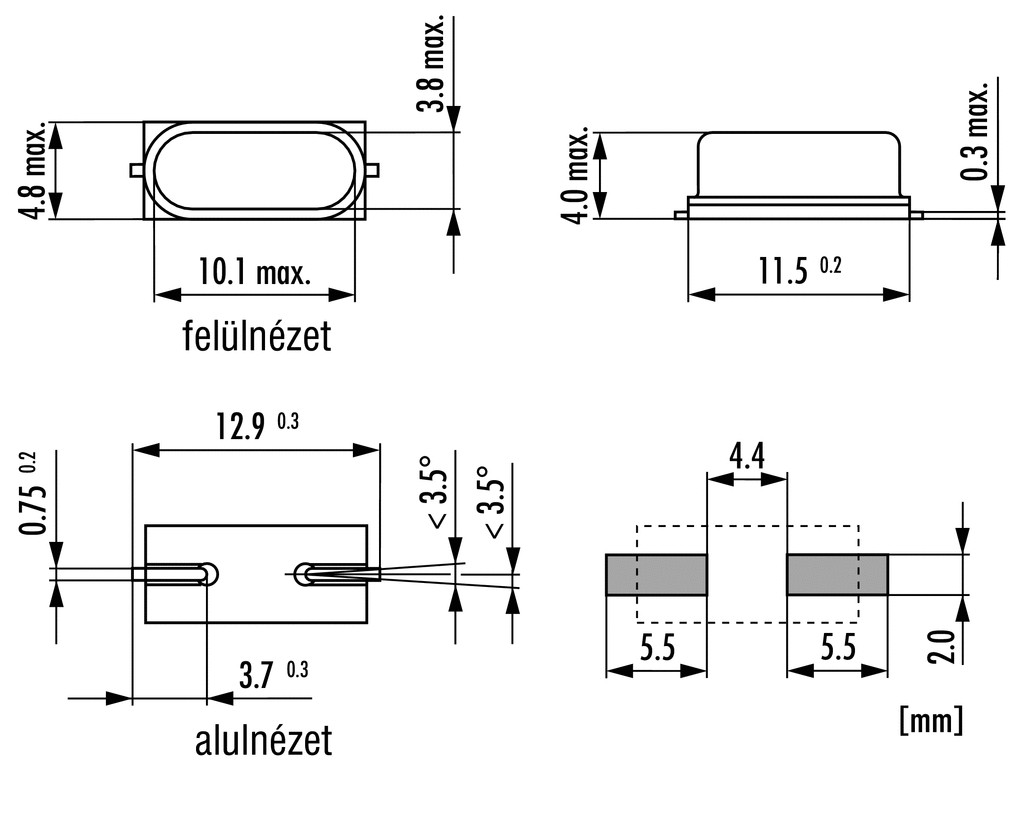

HC-49/U4H SMD (SMU4)

Termination Type:

Surface mount (SMD)

Number of Pins:

External Length [mm]:

11.7 mm

External Width [mm]:

4.8 mm

External Height [mm]:

4 mm

Raster measure:

4.4 mm

Frequency Tolerance [ppm @ °C]:

± 20 ppm @ 25 °C

Temperature Stability [ppm]:

± 30 ppm

Load Capacitance [pF]:

12 pF

Operating Temperature Min. [°C]:

-20 °C

Operating Temperature Max. [°C]:

+70 °C

ROHS:

Yes

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

100

0,39 €

0,50 €

Our Warehouse

945 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

ROHS_Jauch.pdf
