MC-40532.7680K-A0:ROHS - 32.768KHz SMD ±20ppm 3ppm/Év kvarc - EPSON
1.9698 €+ VAT
2.5017 € incl. VAT
2.5017 € incl. VAT
MC-40532.7680K-A0:ROHS - 32.768KHz SMD ±20ppm 3ppm/Év kvarc - EPSON

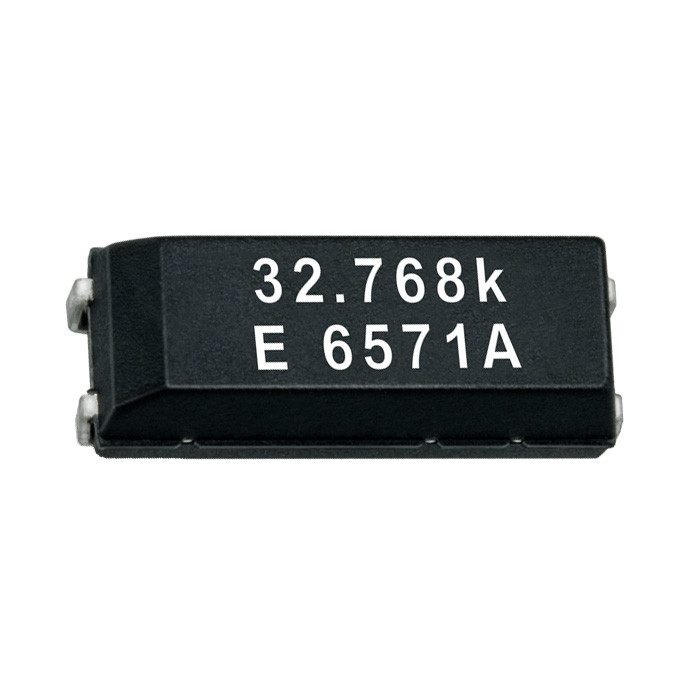

The picture is for illustration purposes only. Please read the product description!
In stock 7 pcs
1.9698 €+ VAT
2.5017 € incl. VAT
2.5017 € incl. VAT
Quartz Crystal, SMD ±20ppm 3ppm/Year
Manufacturer code:
MC-40532.7680K-A0:ROHS
Manufacturer:
Datasheet:
Group:
Crystals
Component Family:
Product Range:
Frequency [MHz]:
32.768 KHz
Case Style:
Surface Mount (SMD)
Case:
Termination Type:
Surface mount (SMD)
Number of Pins:
2

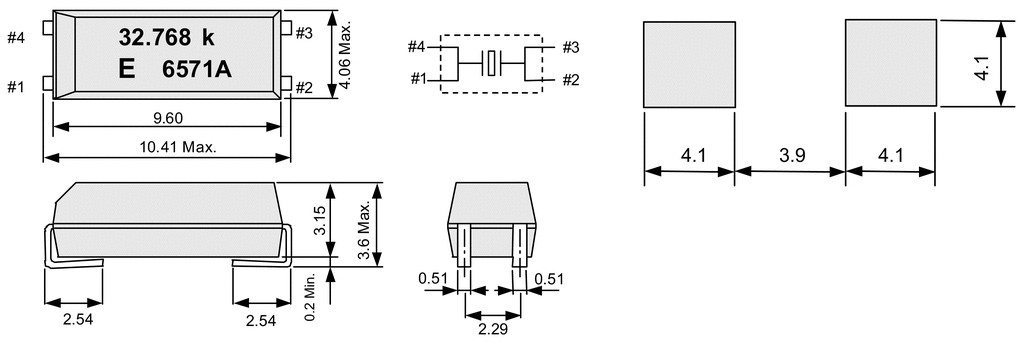

External Length [mm]:
9.6 mm
External Width [mm]:
4.06 mm
External Height [mm]:
3.6 mm
Raster measure:
3.9 mm
Frequency Tolerance [ppm @ °C]:
± 20 ppm @ 25 °C
Load Capacitance [pF]:
12.5 pF
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
Yes
pcs
Our Warehouse
7 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Data
Additional Datasheet:
Weight:
0.293 g/pcs
