Q0,032768-MTF32-12,5-20-LF - 32.768KHz ±20ppm 3ppm/Év 3x8mm Cl=12,5pF kvarc - JAUCH

0.3269 €+ VAT
0.4152 € incl. VAT

Q0,032768-MTF32-12,5-20-LF - 32.768KHz ±20ppm 3ppm/Év 3x8mm Cl=12,5pF kvarc - JAUCH

Name: Q0,032768-MTF32-12,5-20-LF - 32.768KHz ±20ppm 3ppm/Év 3x8mm Cl=12,5pF kvarc - JAUCH
Brand: JAUCH
SKU: 62-01-20
Price: 0.4152 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 42099 pcs

0.3269 €+ VAT
0.4152 € incl. VAT

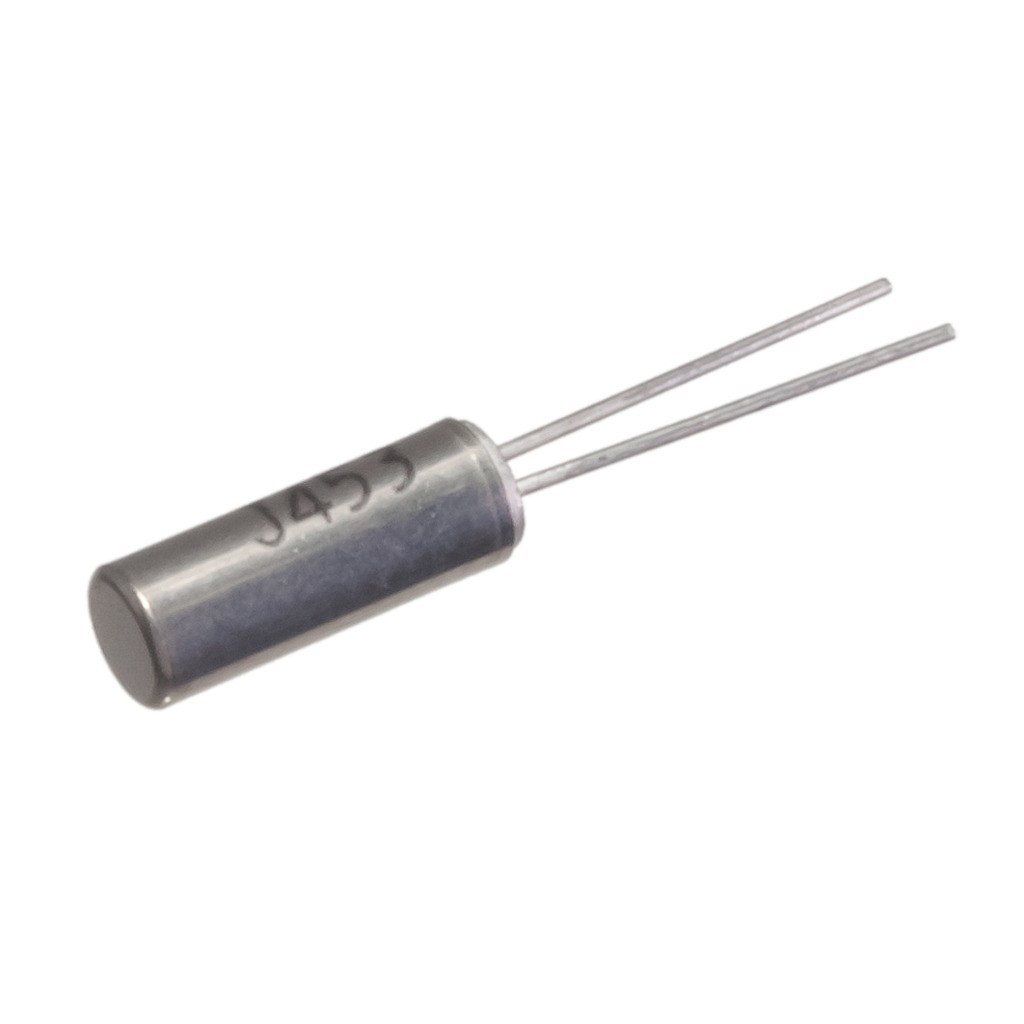

Quartz Crystal, ±20ppm 3ppm/Year 3x8mm Cl=12,5pF

Manufacturer code:

Q0,032768-MTF32-12,5-20-LF

Manufacturer:

JAUCH

Datasheet:

Jauch_MTF32.pdf

Group:

Crystals

Component Family:

Crystal, miniature cylindrical

Product Range:

MTF32

Frequency [MHz]:

32.768 KHz

Case Style:

PCB-mountable

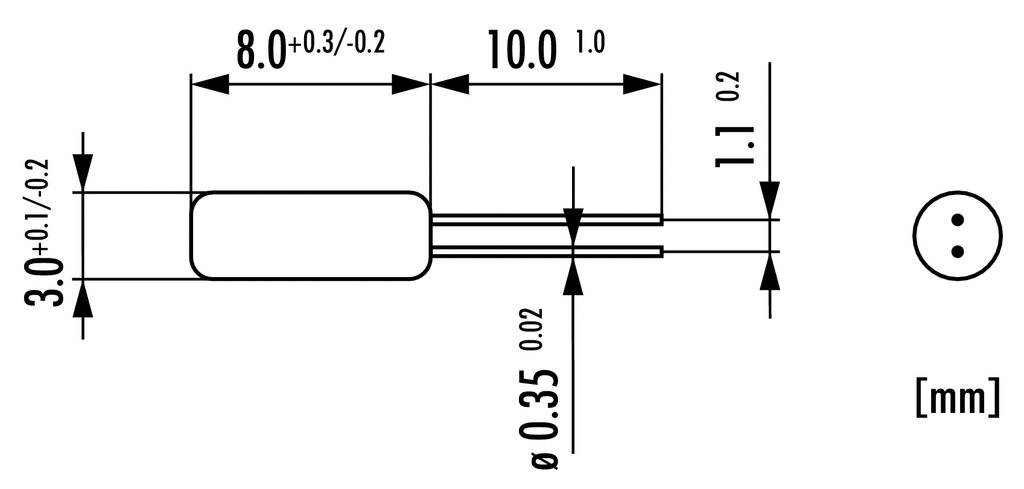

Case:

3x8mm

Termination Type:

Through-hole technology

Number of Pins:

External Length [mm]:

3 mm

External Diameter [mm]:

3 mm

External Width [mm]:

3 mm

External Height [mm]:

8 mm

Raster measure:

1.1 mm

Frequency Tolerance [ppm @ °C]:

± 20 ppm @ 25 °C

Load Capacitance [pF]:

30 pF

Operating Temperature Min. [°C]:

-20 °C

Operating Temperature Max. [°C]:

+70 °C

ROHS:

Yes

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

100

0,22 €

0,27 €

Our Warehouse

42099 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_D_003.pdf ROHS_Jauch.pdf
