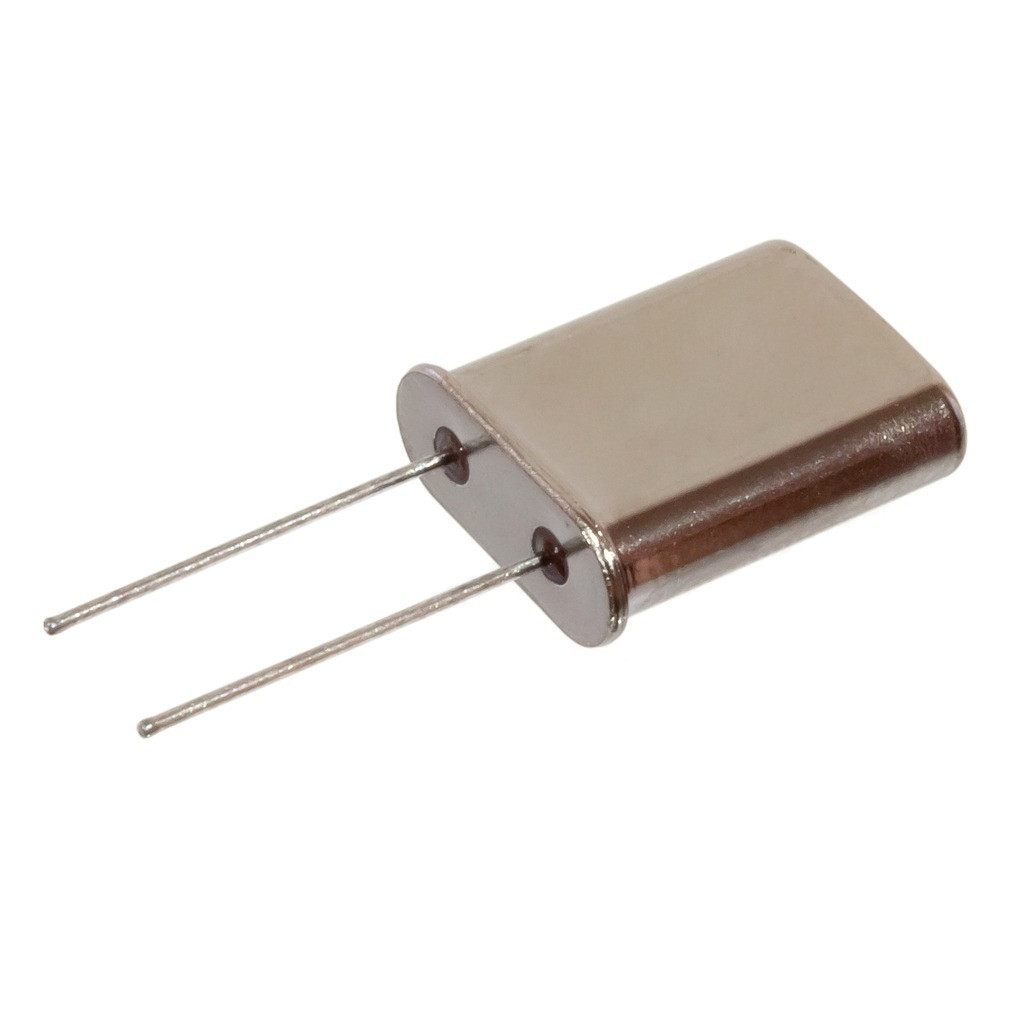

60 MHz HC-49U 3.-harmonic - JAUCH - Q-60,0-S-30-30/30-30T-LL=4.5-LF

1 417.34 Ft+ VAT
1 800.02 Ft incl. VAT

60 MHz HC-49U 3.-harmonic - JAUCH - Q-60,0-S-30-30/30-30T-LL=4.5-LF

Name: 60 MHz HC-49U 3.-harmonic - JAUCH - Q-60,0-S-30-30/30-30T-LL=4.5-LF
Brand: JAUCH
SKU: 62-00-86
Price: 1800.02 HUF
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 213 pcs

1 417.34 Ft+ VAT
1 800.02 Ft incl. VAT

Quartz Crystal, 30ppm Cl=30pF HC-49U 3.-harmonic

Manufacturer code:

Q-60,0-S-30-30/30-30T-LL=4.5-LF

Manufacturer:

JAUCH

Datasheet:

HC49-U-090414.pdf

Group:

Crystals

Component Family:

Crystal, standard

Product Range:

HC49/U

Frequency [MHz]:

60 MHz

Case Style:

PCB-mountable

Case:

HC-49U (HC-18)

Termination Type:

Through-hole technology

Number of Pins:

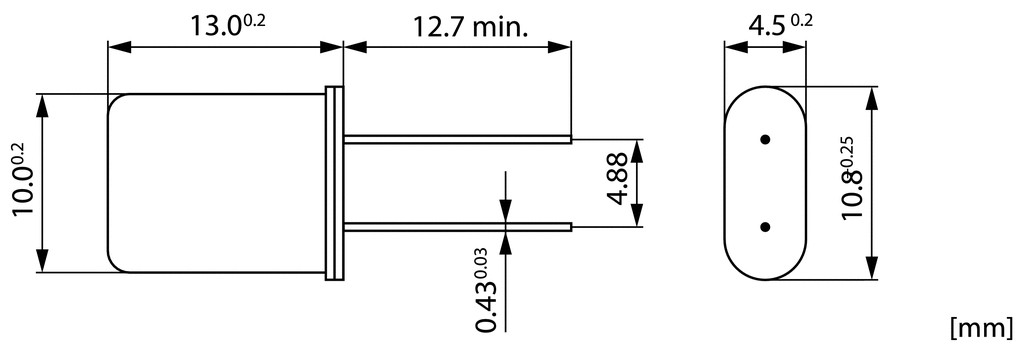

External Length [mm]:

10.8 mm

External Width [mm]:

4.5 mm

External Height [mm]:

13 mm

Raster measure:

4.88 mm

Frequency Tolerance [ppm @ °C]:

± 30 ppm @ 25 °C

Temperature Stability [ppm]:

± 30 ppm

Load Capacitance [pF]:

30 pF

Operating Temperature Min. [°C]:

-20 °C

Operating Temperature Max. [°C]:

+70 °C

ROHS:

Yes

pcs

Quantity discount:

Quantity [pcs]

Net [HUF]

Gross [HUF]

1 177,22 Ft

1 495,07 Ft

Our Warehouse

213 pcs

Available for immediate delivery

Info

Additional Datasheet:

RETKAT2012_D_002.pdf ROHS_Jauch.pdf
