O12.0-JO32-G-1V3-1-T1-LF - 12MHz SMD 30ppm 3.2x2.5x1mm Ut=1.8-3.3V JO32-serie oszcillátor - JAUCH
The picture is for illustration purposes only. Please read the product description!
Out of stock
Oscillator SMD 30ppm 3.2x2.5x1mm Ut=1.8-3.3V JO32-serie
Manufacturer code:
O12.0-JO32-G-1V3-1-T1-LF
Manufacturer:
Datasheet:
Group:
Crystal Oscillators
Component Family:
Product Range:
Frequency [MHz]:
12 MHz
Case Style:
Surface Mount (SMD)
Case:
Termination Type:
Surface mount (SMD)
Number of Pins:
4

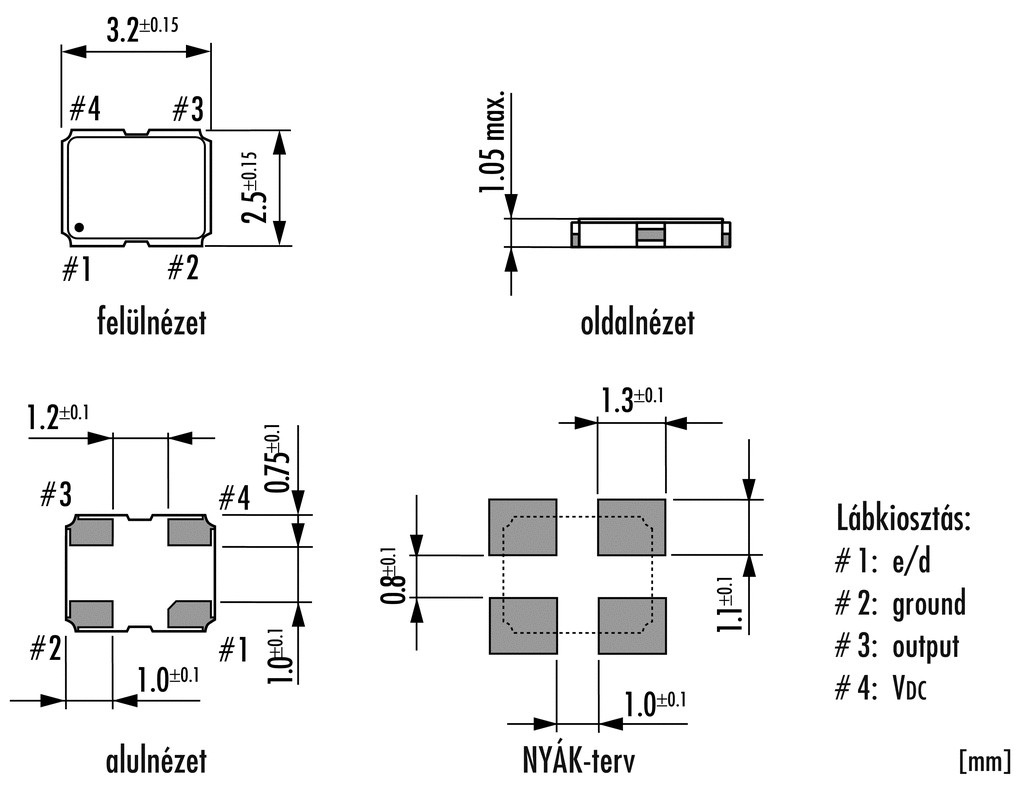

External Length [mm]:
3.2 mm
External Thickness [mm]:
2.5 mm
External Height [mm]:
1.05 mm
Raster measure:
1.2 mm
Frequency Tolerance [ppm @ °C]:
± 30 ppm @ -40..+85°C
Load Capacitance [pF]:
15 pF
Output Type:
CMOS
Supply Voltage Min. [V]:
+1.8 V
Supply Voltage Max. [V]:
+3.3 V
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
Yes
Our Warehouse
0 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Data
Additional Datasheet:
Weight:
0.054 g/pcs
