O-18,432000M-AQO14-50-5,0-A - 18.432MHz 50ppm DIL14 fémházas oszcillátor - AURIS

1.4958 €+ VAT
1.8996 € incl. VAT

O-18,432000M-AQO14-50-5,0-A - 18.432MHz 50ppm DIL14 fémházas oszcillátor - AURIS

Name: O-18,432000M-AQO14-50-5,0-A - 18.432MHz 50ppm DIL14 fémházas oszcillátor - AURIS
Brand: AURIS
SKU: 62-03-37
Price: 1.8996 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 66 pcs

1.4958 €+ VAT
1.8996 € incl. VAT

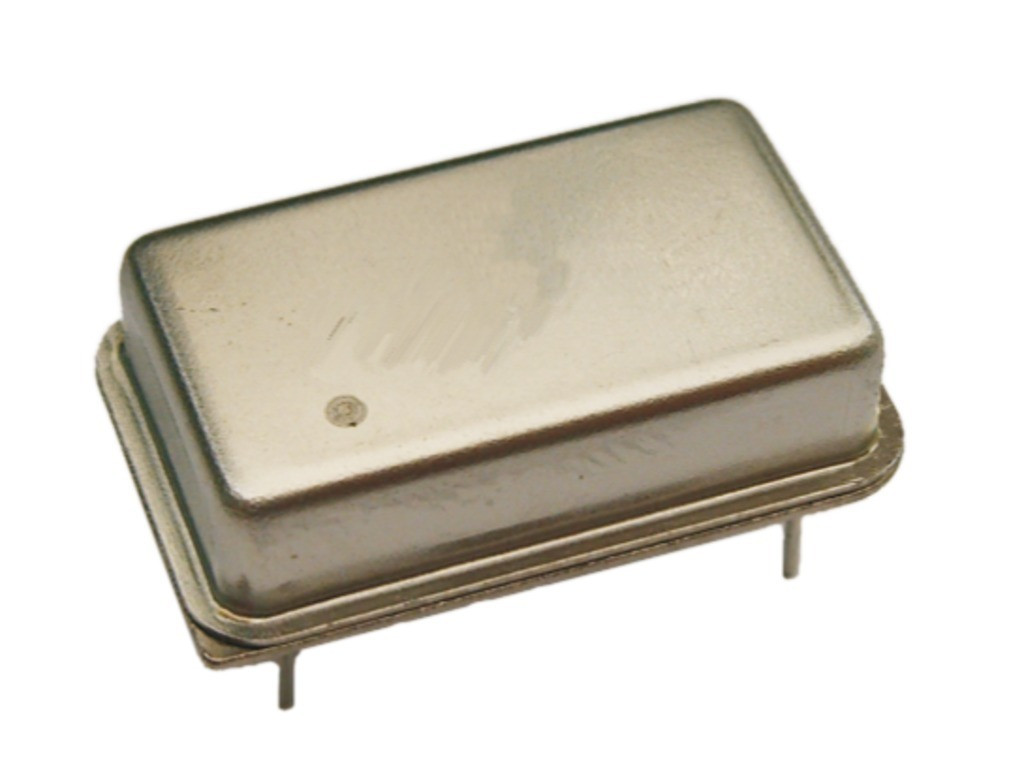

Oscillator Metal Case 50ppm ~DIL14

Manufacturer code:

O-18,432000M-AQO14-50-5,0-A

Manufacturer:

AURIS

Datasheet:

aqo14.pdf

Group:

Crystal Oscillators

Component Family:

Crystal oscillator, DIL14 metal case

Product Range:

AQO14

Frequency [MHz]:

18.432 MHz

Case Style:

Through-hole (THT), metall

Case:

DIL14

Termination Type:

Through-hole technology

Number of Pins:

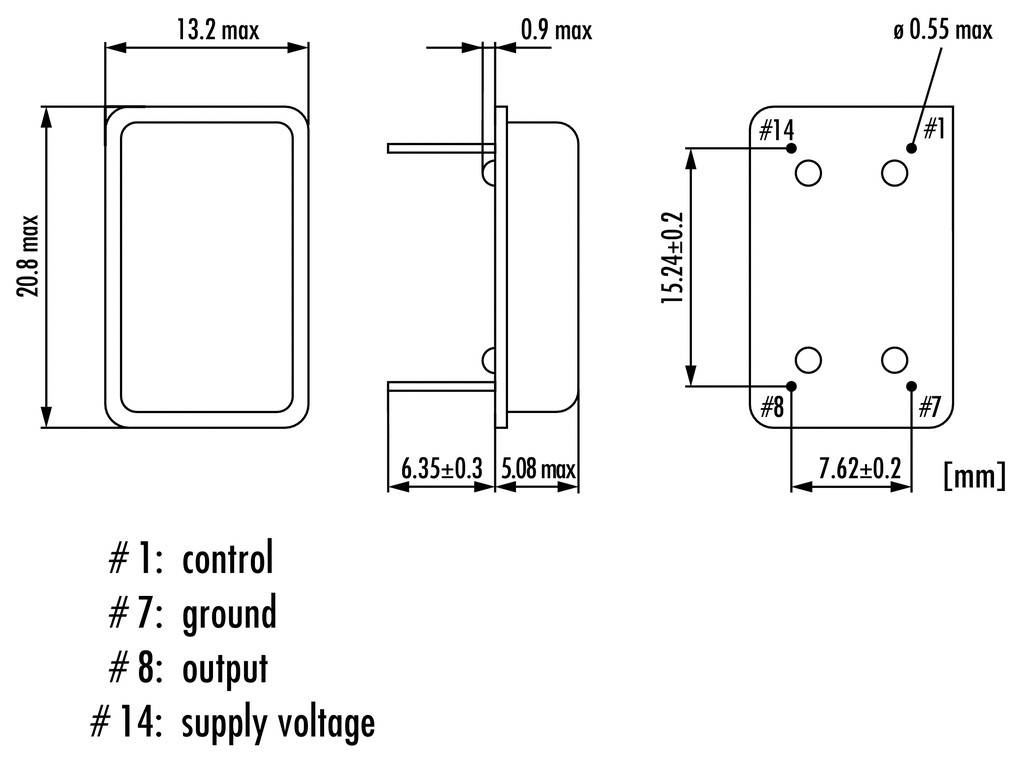

External Length [mm]:

20.4 mm

External Thickness [mm]:

13.1 mm

External Height [mm]:

5.3 mm

Raster measure:

7.62 mm

Frequency Tolerance [ppm @ °C]:

± 50 ppm @ 0..+70°C

Load Capacitance [pF]:

15 pF

Output Type:

TTL

Supply Voltage Min. [V]:

+4.5 V

Supply Voltage Max. [V]:

+5.5 V

Operating Temperature Min. [°C]:

0 °C

Operating Temperature Max. [°C]:

+70 °C

ROHS:

Yes

pcs

Quantity discount:

Quantity [pcs]

Net [EUR]

Gross [EUR]

1,24 €

1,57 €

Our Warehouse

66 pcs

Available for immediate delivery

Info

Additional Datasheet:

ROHS_Auris.pdf

Weight:

3.655 g/pcs
