O10,0-JO75-B-3.3-1-LF - 10MHz SMD 3,3V 50ppm Tri-State 7x5x1.4mm oszcillátor - JAUCH

1.5665 €+ VAT
1.9895 € incl. VAT

O10,0-JO75-B-3.3-1-LF - 10MHz SMD 3,3V 50ppm Tri-State 7x5x1.4mm oszcillátor - JAUCH

Name: O10,0-JO75-B-3.3-1-LF - 10MHz SMD 3,3V 50ppm Tri-State 7x5x1.4mm oszcillátor - JAUCH
Brand: JAUCH
SKU: 62-03-35
Price: 1.9895 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 450 pcs

1.5665 €+ VAT
1.9895 € incl. VAT

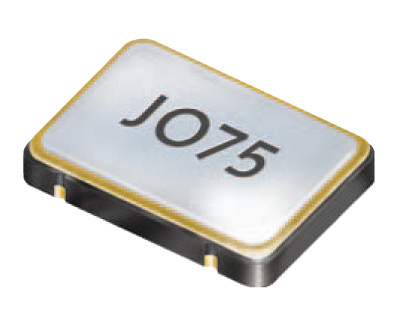

Oscillator SMD 3,3V 50ppm Tri-State 7x5x1.4 mm

Manufacturer code:

O10,0-JO75-B-3.3-1-LF

Manufacturer:

JAUCH

Datasheet:

Jauch_JO75_3V3.pdf

Group:

Crystal Oscillators

Component Family:

Oscillator, JO75-series w. shutdown

Product Range:

JO75

Frequency [MHz]:

10 MHz

Case Style:

Surface Mount (SMD)

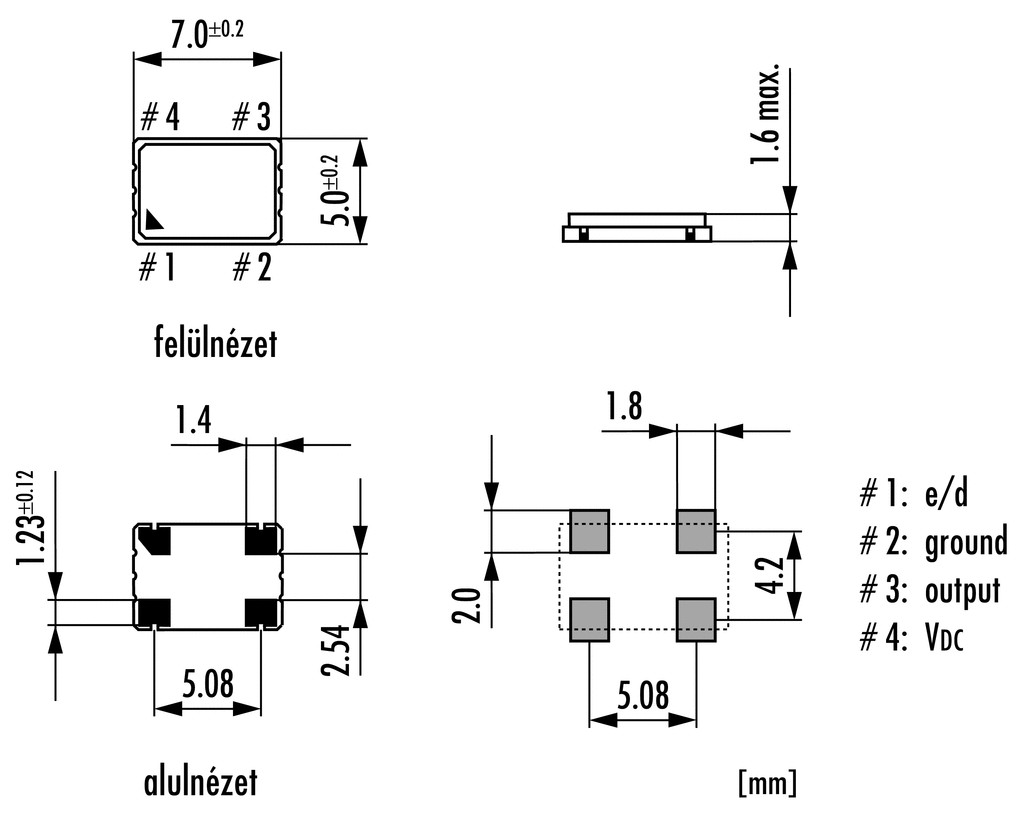

Case:

7.5 x 5 x 1,4 mm

Termination Type:

Surface mount (SMD)

Number of Pins:

External Length [mm]:

7.5 mm

External Thickness [mm]:

5 mm

External Height [mm]:

1.4 mm

Raster measure:

5.08 mm

Frequency Tolerance [ppm @ °C]:

± 50 ppm @ -10..+70°C

Load Capacitance [pF]:

15 pF

Output Type:

CMOS

Supply Voltage Min. [V]:

+3.0 V

Supply Voltage Max. [V]:

+3.6 V

Operating Temperature Min. [°C]:

-10 °C

Operating Temperature Max. [°C]:

+70 °C

ROHS:

Yes

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

1,30 €

1,65 €

Our Warehouse

450 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

ROHS_Jauch.pdf
