O-40.000000M-AQO14-50-5.0-A - 40MHz 50ppm, +5V DIL14 fémházas oszcillátor - AURIS

2.5814 €+ VAT
3.2784 € incl. VAT

O-40.000000M-AQO14-50-5.0-A - 40MHz 50ppm, +5V DIL14 fémházas oszcillátor - AURIS

Name: O-40.000000M-AQO14-50-5.0-A - 40MHz 50ppm, +5V DIL14 fémházas oszcillátor - AURIS
Brand: AURIS
SKU: 62-03-34
Price: 3.2784 EUR
Availability: InStock

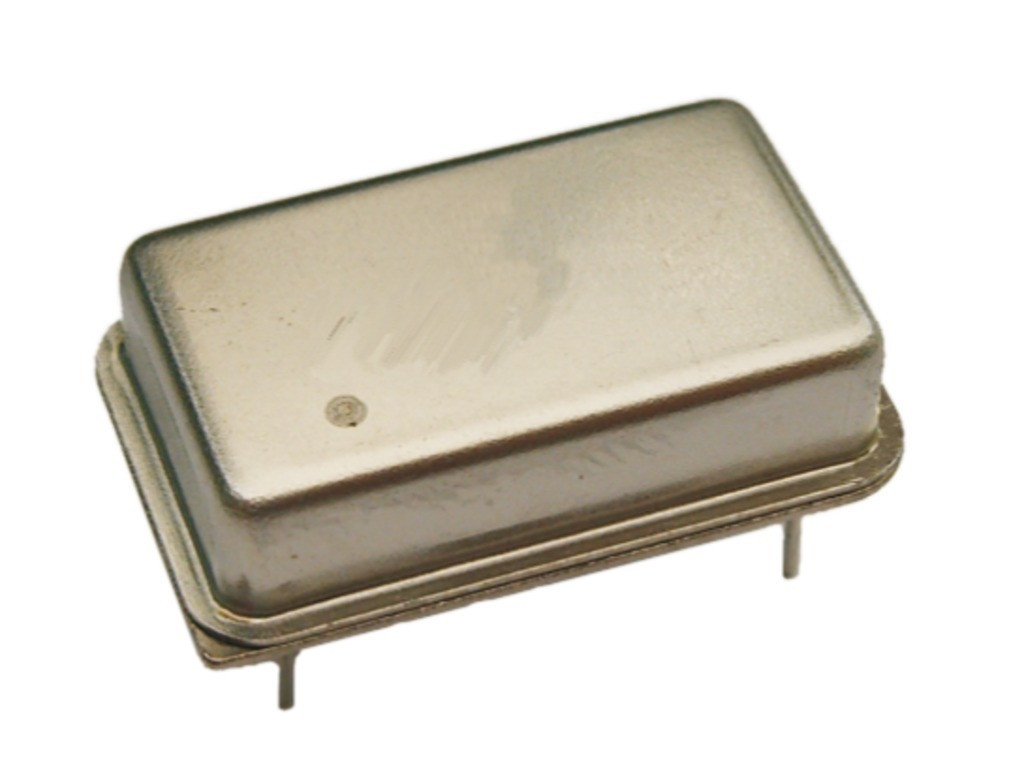

The picture is for illustration purposes only. Please read the product description!

In stock 75 pcs

2.5814 €+ VAT
3.2784 € incl. VAT

Oscillator Metal Case 50ppm, +5V ~DIL14

Manufacturer code:

O-40.000000M-AQO14-50-5.0-A

Manufacturer:

AURIS

Datasheet:

aqo14.pdf

Group:

Crystal Oscillators

Component Family:

Crystal oscillator, DIL14 metal case

Product Range:

AQO14

Frequency [MHz]:

40 MHz

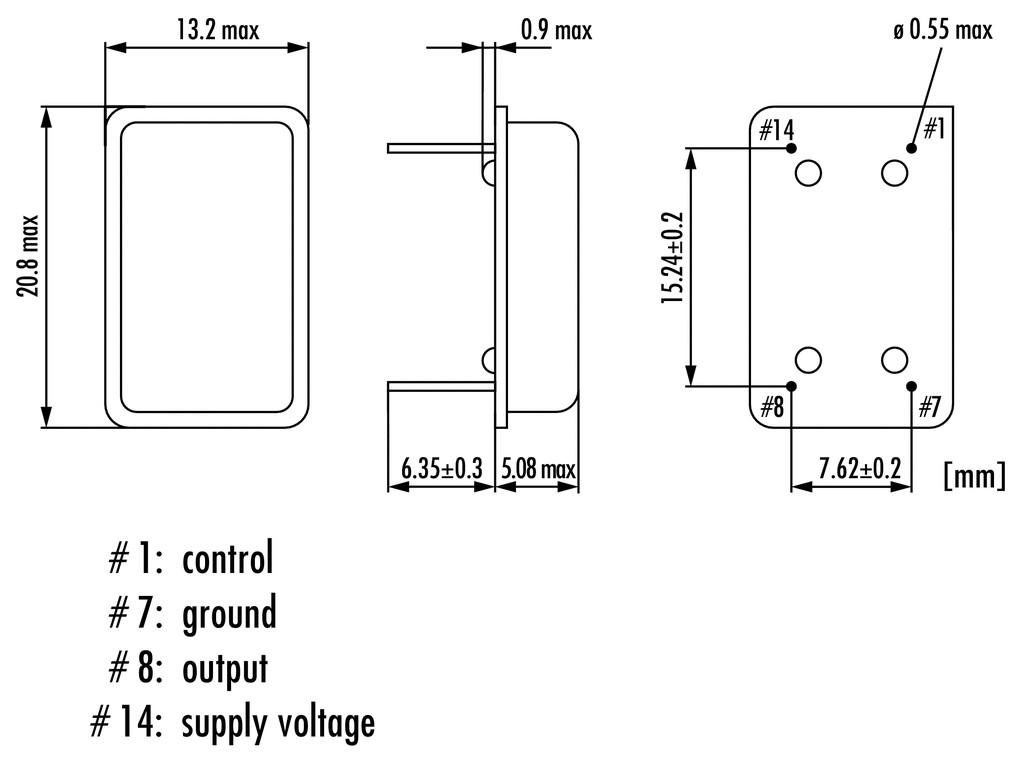

Case Style:

Through-hole (THT), metall

Case:

DIL14

Termination Type:

Through-hole technology

Number of Pins:

External Length [mm]:

20.4 mm

External Thickness [mm]:

13.1 mm

External Height [mm]:

5.3 mm

Raster measure:

7.62 mm/15.24 mm

Frequency Tolerance [ppm @ °C]:

± 50 ppm @ 25 °C

Load Capacitance [pF]:

15 pF

Output Type:

TTL/CMOS

Supply Voltage Min. [V]:

+4.5 V

Supply Voltage Max. [V]:

+5.5 V

Operating Temperature Min. [°C]:

0 °C

Operating Temperature Max. [°C]:

+70 °C

ROHS:

Yes

pcs

Our Warehouse

75 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

ROHS_Auris.pdf

Weight:

3.67 g/pcs
