O20,0-VX3E-T1-LF - 20MHz SMD 100ppm Tri-State 7x5x1,6mm VX3E oszcillátor - JAUCH

1.5665 €+ VAT
1.9895 € incl. VAT

O20,0-VX3E-T1-LF - 20MHz SMD 100ppm Tri-State 7x5x1,6mm VX3E oszcillátor - JAUCH

Name: O20,0-VX3E-T1-LF - 20MHz SMD 100ppm Tri-State 7x5x1,6mm VX3E oszcillátor - JAUCH
Brand: JAUCH
SKU: 62-02-77
Price: 1.9895 EUR
Availability: InStock

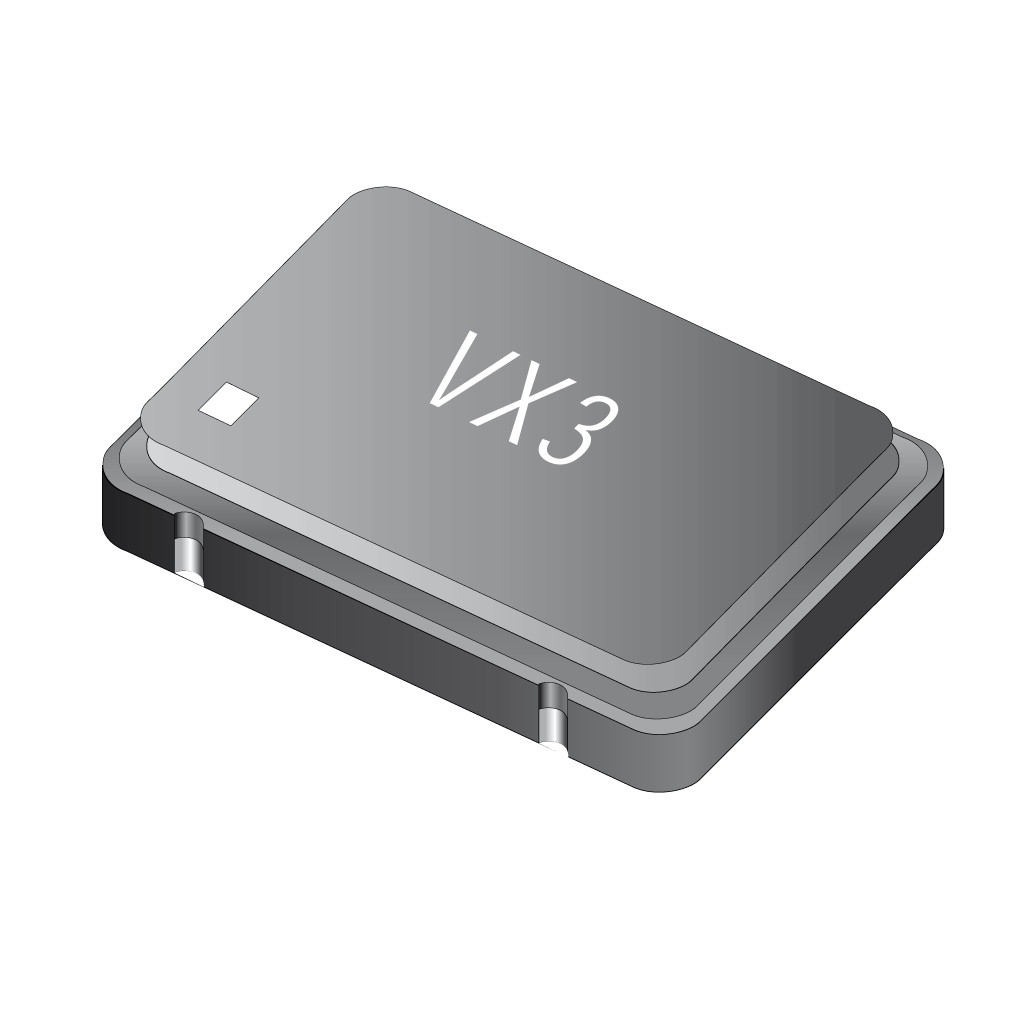

The picture is for illustration purposes only. Please read the product description!

In stock 2177 pcs

End of Life

1.5665 €+ VAT
1.9895 € incl. VAT

Oscillator SMD 100ppm Tri-State 7x5x1,6 mm VX3E

Manufacturer code:

O20,0-VX3E-T1-LF

Manufacturer:

JAUCH

Datasheet:

VX3_5V0.pdf

Group:

Crystal Oscillators

Component Family:

Oscillator, 5V HCMOS, w. shutdown

Product Range:

VX3E

Frequency [MHz]:

20 MHz

Case Style:

Surface Mount (SMD)

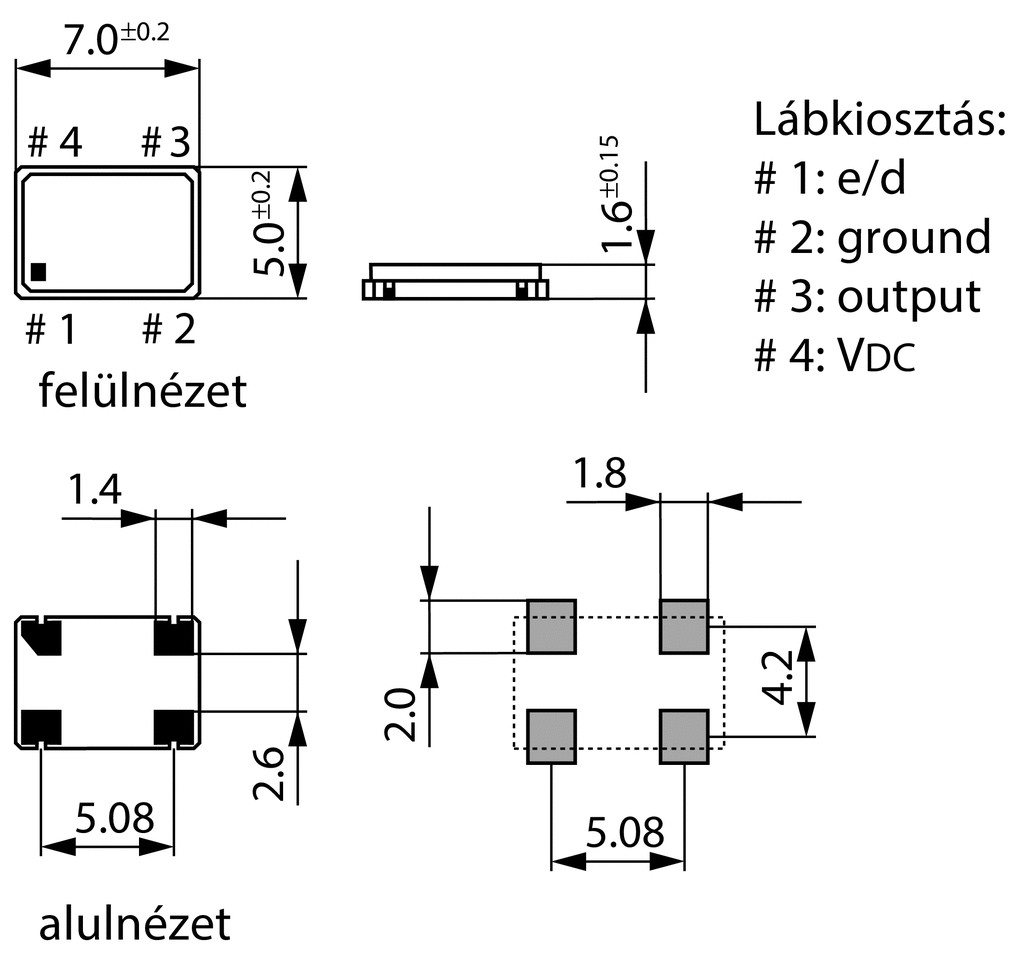

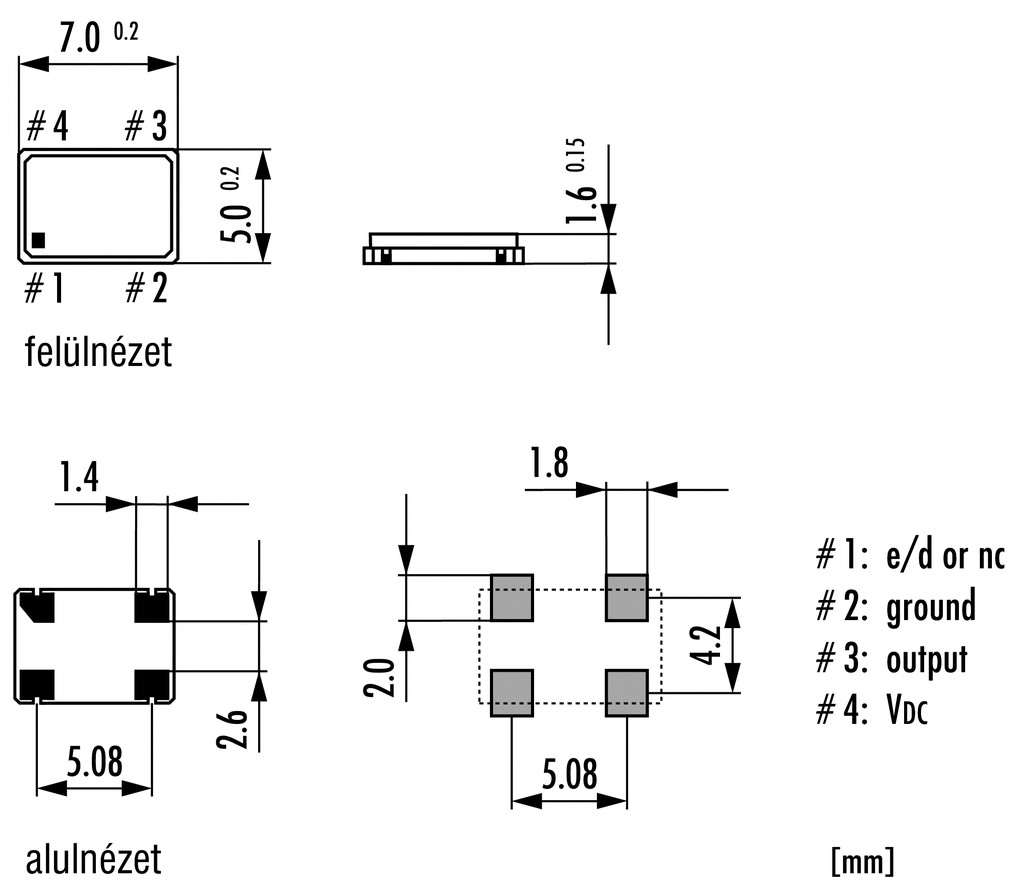

Case:

7 x 5 x 1,6 mm

Termination Type:

Surface mount (SMD)

Number of Pins:

External Length [mm]:

7 mm

External Thickness [mm]:

5 mm

External Height [mm]:

1.6 mm

Raster measure:

5.08 mm

Frequency Tolerance [ppm @ °C]:

± 100 ppm @ -40..+85°C

Load Capacitance [pF]:

15 pF

Output Type:

CMOS

Supply Voltage Min. [V]:

+4.5 V

Supply Voltage Max. [V]:

+5.5 V

Operating Temperature Min. [°C]:

-40 °C

Operating Temperature Max. [°C]:

+85 °C

ROHS:

Yes

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

100

1,20 €

1,52 €

Our Warehouse

2144 pcs

Available for immediate delivery

Our Shop in Szeged

33 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_D_006.pdf ROHS_Jauch.pdf

Weight:

0.1975 g/pcs
