O16,0-JCO8-3-B-LF - 16MHz 50ppm ~DIL8 Tri-State fémházas oszcillátor - JAUCH

2.0895 €+ VAT
2.6537 € incl. VAT

O16,0-JCO8-3-B-LF - 16MHz 50ppm ~DIL8 Tri-State fémházas oszcillátor - JAUCH

Name: O16,0-JCO8-3-B-LF - 16MHz 50ppm ~DIL8 Tri-State fémházas oszcillátor - JAUCH
Brand: JAUCH
SKU: 62-02-40
Price: 2.6537 EUR
Availability: InStock

The picture is for illustration purposes only. Please read the product description!

In stock 1 pcs

2.0895 €+ VAT
2.6537 € incl. VAT

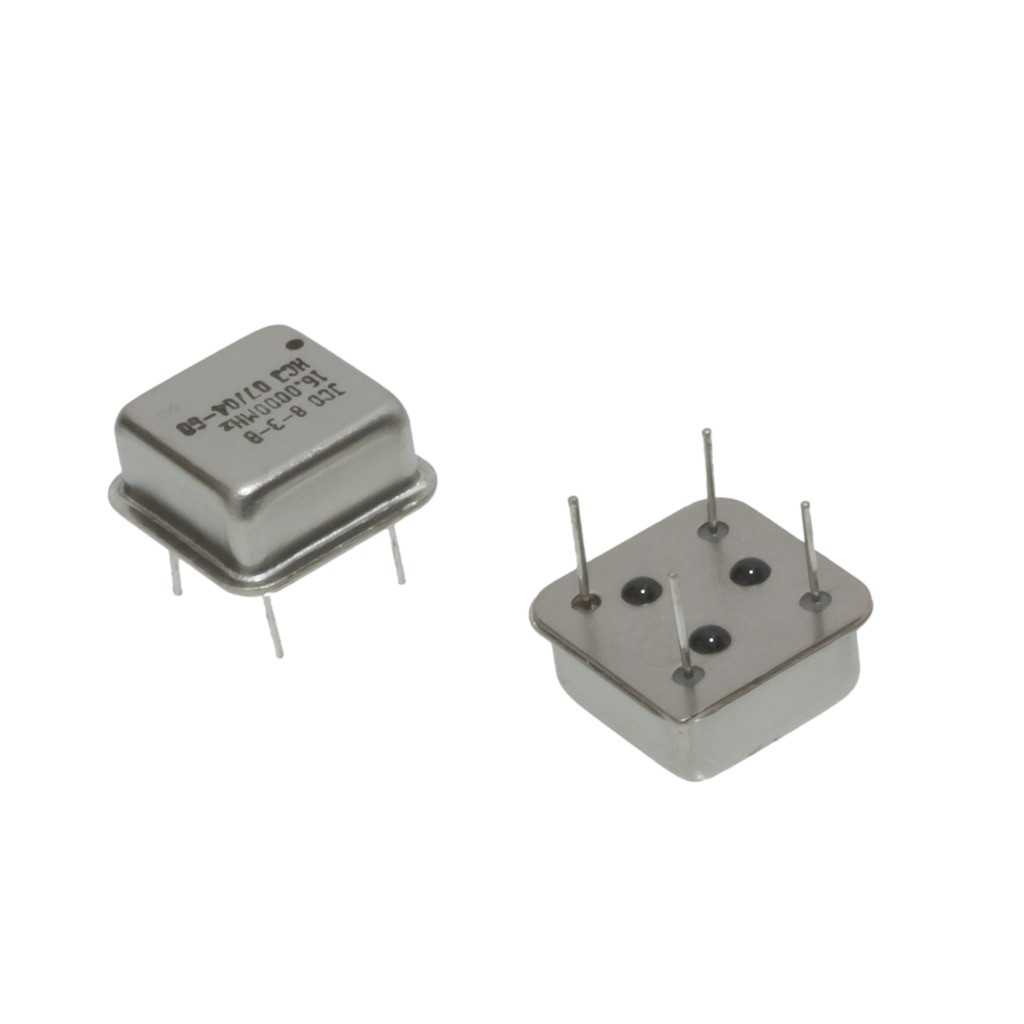

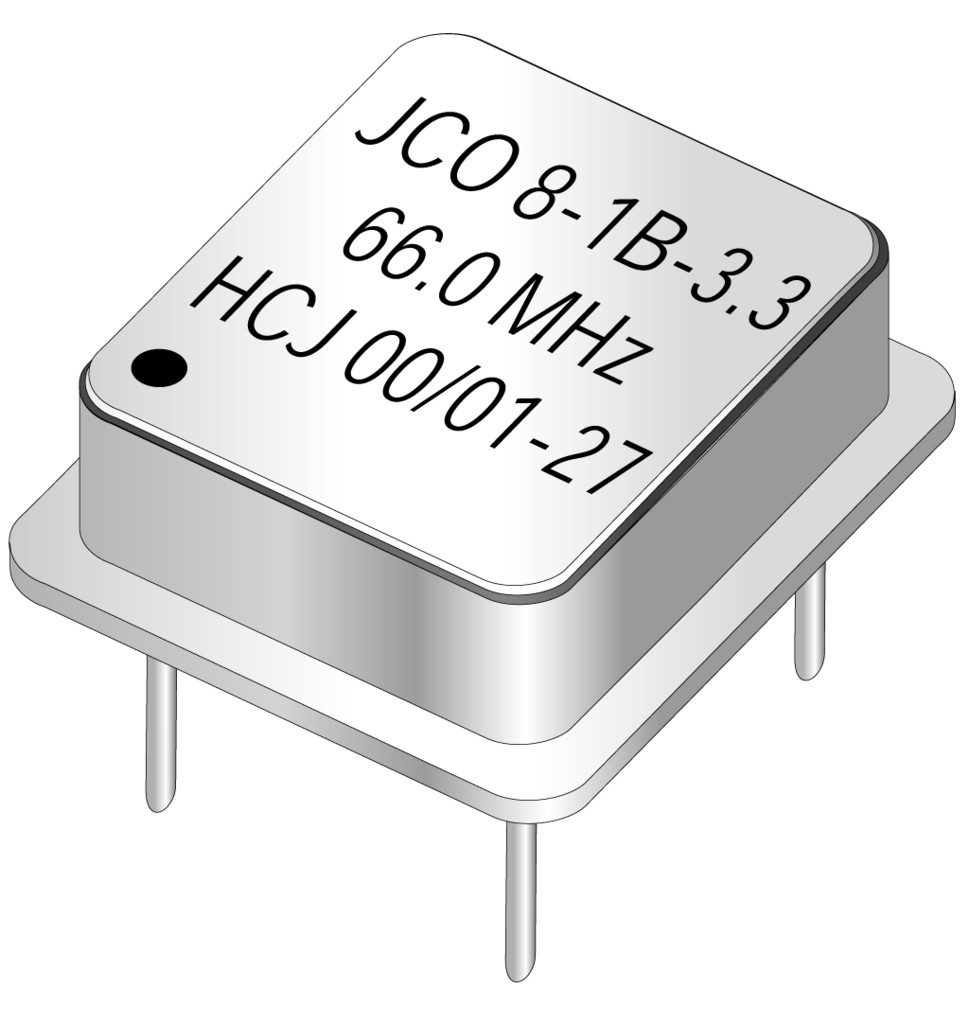

Oscillator Metal Case 50ppm ~DIL8 Tri-State Output

Manufacturer code:

O16,0-JCO8-3-B-LF

Manufacturer:

JAUCH

Datasheet:

Jauch_JCO_5V.pdf

Group:

Crystal Oscillators

Component Family:

Crystal oscillator, DIL8 metal case

Product Range:

JCO8

Frequency [MHz]:

16 MHz

Case Style:

Through-hole (THT), metall

Case:

DIL8

Termination Type:

Through-hole technology

Number of Pins:

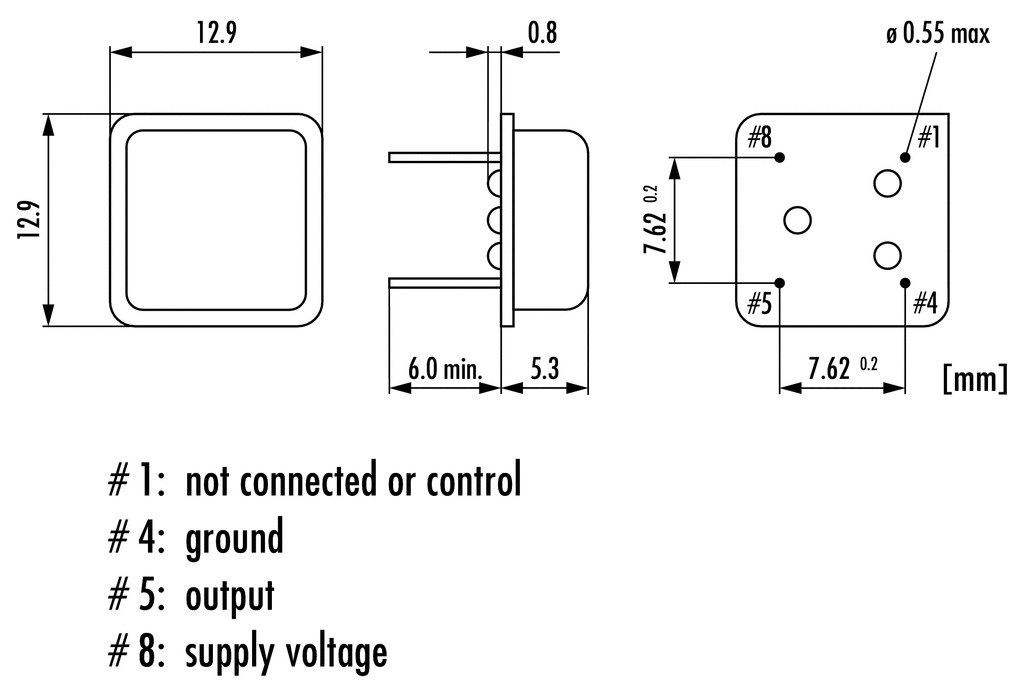

External Length [mm]:

12.8 mm

External Thickness [mm]:

12.8 mm

External Height [mm]:

5.3 mm

Raster measure:

7.62 mm

Frequency Tolerance [ppm @ °C]:

± 50 ppm @ -10..+70°C

Load Capacitance [pF]:

15 pF

Output Type:

TTL

Supply Voltage Min. [V]:

+4.5 V

Supply Voltage Max. [V]:

+5.5 V

Operating Temperature Min. [°C]:

-10 °C

Operating Temperature Max. [°C]:

+70 °C

ROHS:

Yes

pcs

Our Warehouse

1 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_D_005.pdf ROHS_Jauch.pdf
