330uF 6.3V ±20% SMD d=6.3x8mm - NIC COMPONENTS - NACE331M6.3V6.3X8TR13F

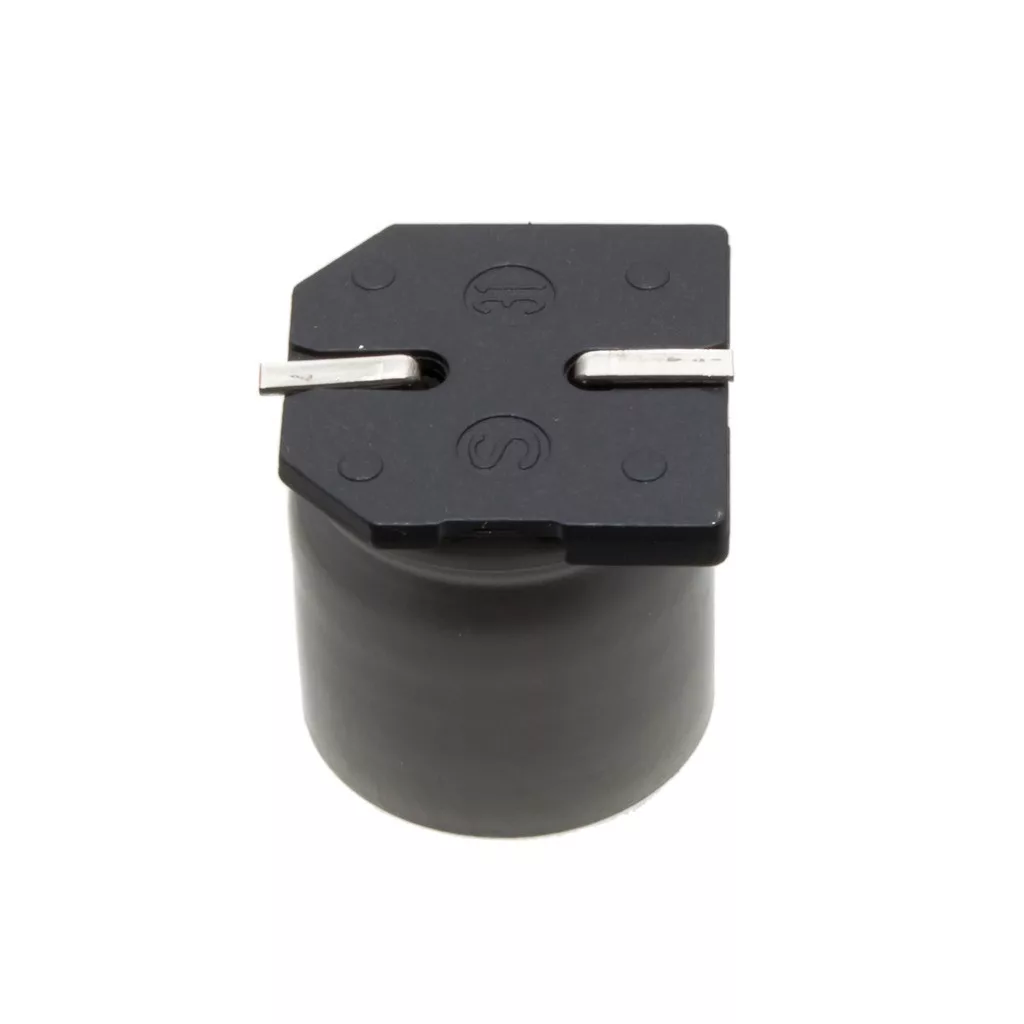

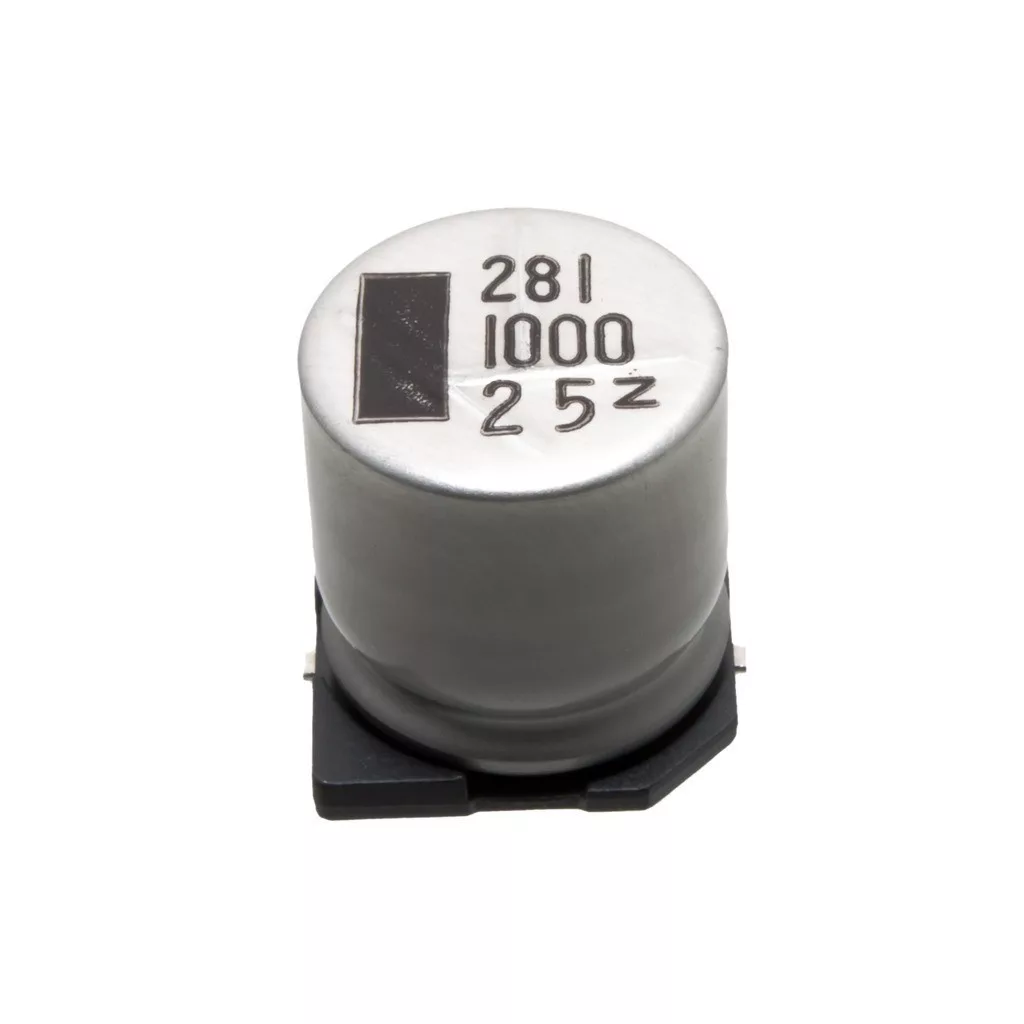

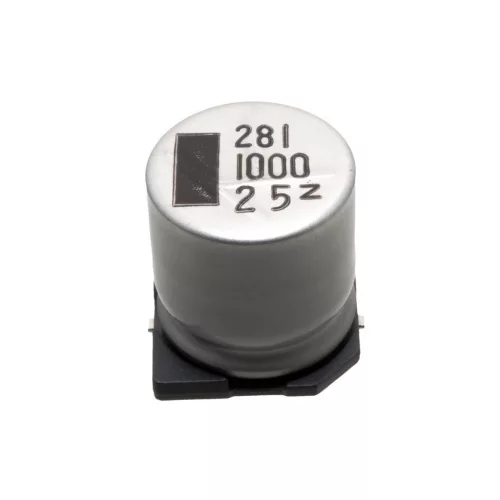

The picture is for illustration purposes only. Please read the product description!
Out of stock
Electrolytic Capacitor 6.3V ±20% SMD d=6.3x8mm
Manufacturer code:
NACE331M6.3V6.3X8TR13F
Manufacturer:
Datasheet:
Group:
Electrolytic Capacitors
Component Family:
Product Range:
Capacitance [F]:
Case Style:
Surface Mount (SMD)
Case:
Termination Type:
Surface mount (SMD)
Voltage Rating [V]:
6.3V
Number of Pins:
2
Tolerance [ % ]:
±20 %
External Diameter [mm]:
6.3 mm
External Height [mm]:
8 mm
Raster measure:
2.2 mm (min.)
ESR type:
No
Serienersatzwiderstand [Ohm/Hz/°C]:
1.31 Ohm @ 120Hz @ 20°C
Ripple Current max. [mA]:
150 mA @ 120Hz @ 85°C
Endurance [h/°C]:
2.000h @ 85°C
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
Yes
