CX010M0470RGF-0810 - 470uF 10V 105°C ±20% UL-ESR SMD d=8x10.5mm elektrolit kondenzátor - YAGEO

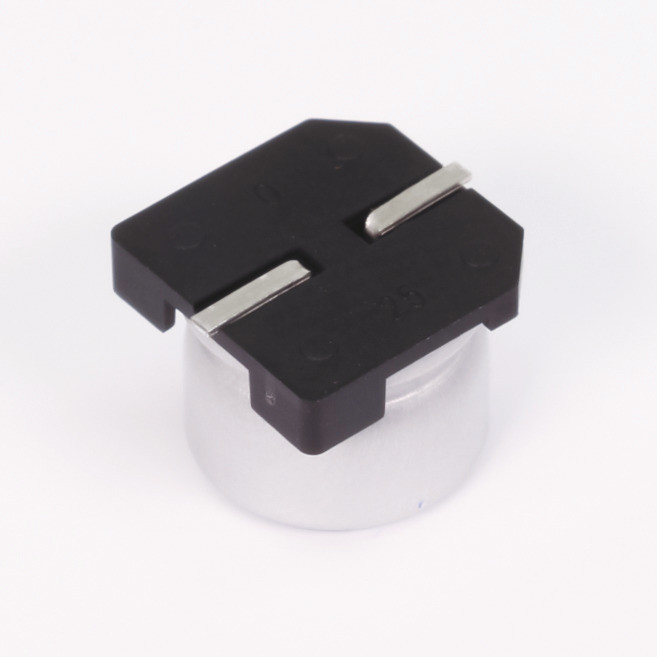

The picture is for illustration purposes only. Please read the product description!
Out of stock
Electrolytic Capacitor 10V ±20% SMD UL-ESR 3000hrs d=8x10.5mm
Manufacturer code:
CX010M0470RGF-0810
Manufacturer:
Datasheet:
Group:
Electrolytic Capacitors
Component Family:
Product Range:
Capacitance [F]:
Case Style:
Surface Mount (SMD)
Case:
Termination Type:
Surface mount (SMD)
Voltage Rating [V]:
10V
Number of Pins:
2
Tolerance [ % ]:
±20 %
External Diameter [mm]:
8 mm
External Height [mm]:
10.5 mm
Raster measure:
3.1 mm (min.)
ESR type:
Low-ESR
Serienersatzwiderstand [Ohm/Hz/°C]:
120 mOhm @ 100kHz @ 20°C
Ripple Current max. [mA]:
850 mA @ 100kHz @ 105°C
Endurance [h/°C]:
3.000h @ 105°C
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+105 °C
ROHS:
Yes
