10000 uF 100V 105°C Solder ±20% Radial d=40x95mm M8 - F&T - LFHB10310040095

36.5082 €+ VAT
46.3655 € incl. VAT

10000 uF 100V 105°C Solder ±20% Radial d=40x95mm M8 - F&T - LFHB10310040095

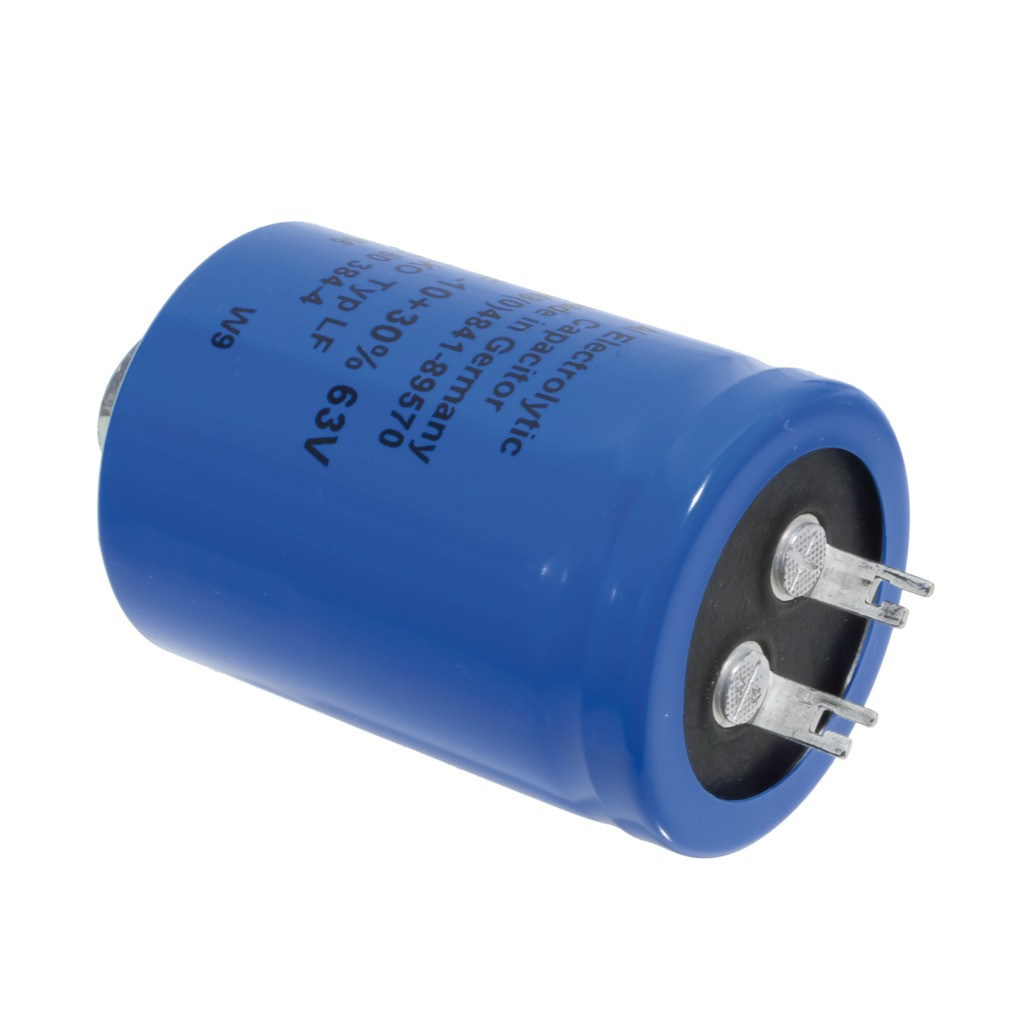

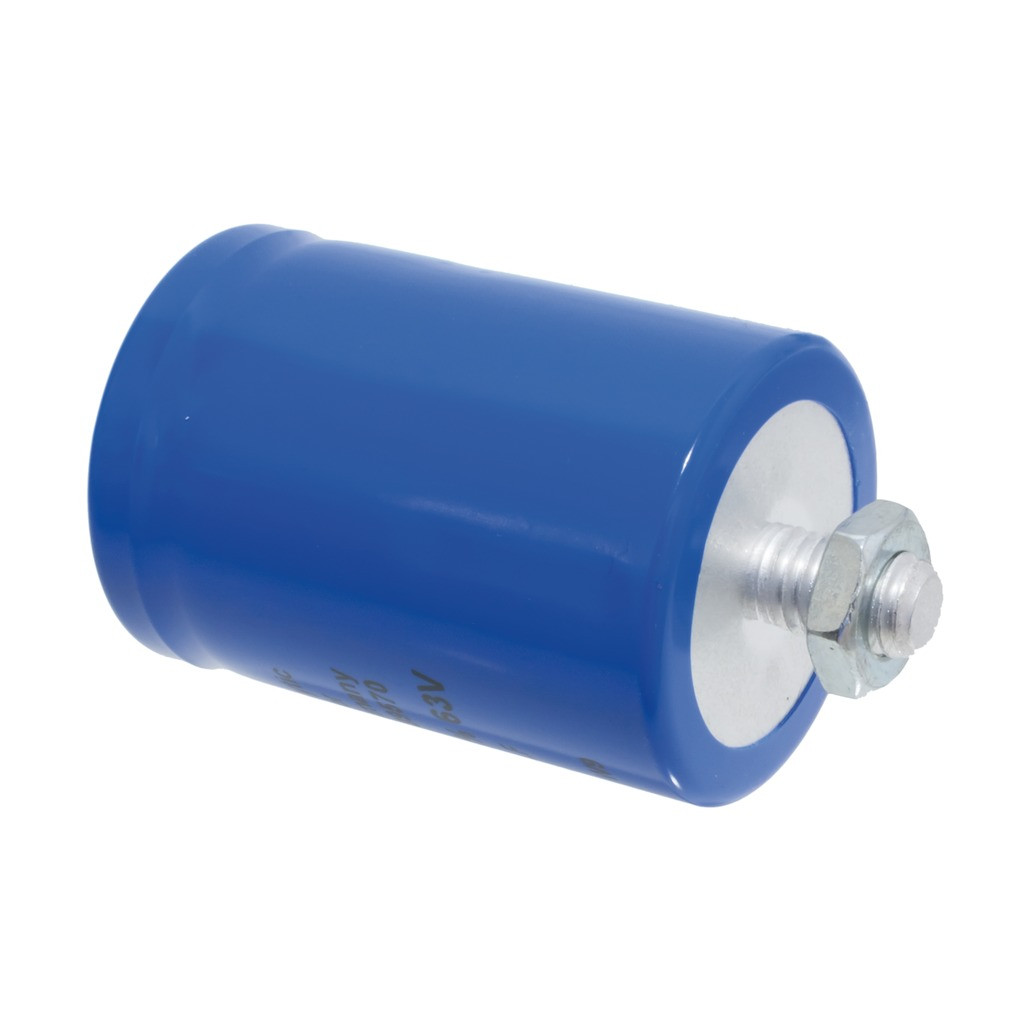

The picture is for illustration purposes only. Please read the product description!

In stock 8 pcs

36.5082 €+ VAT
46.3655 € incl. VAT

Electrolytic Capacitor 100V 105°C with Solder Terminals ±20% Radial d=40x95mm Screwy M8x12

Manufacturer code:

LFHB10310040095

Manufacturer:

F&T

Datasheet:

FTCAP_LFHB.pdf

Group:

Electrolytic Capacitors

Component Family:

Screwed/solder lug radial electrolytic capacitor

Product Range:

LFB

Capacitance [F]:

10000µF

Case Style:

mountable

Case:

Standing, mountable

Termination Type:

Solder tab

Voltage Rating [V]:

100V

Number of Pins:

Tolerance [ % ]:

±20 %

External Diameter [mm]:

40 mm

External Height [mm]:

40 mm

Raster measure:

20 mm

ESR type:

Ripple Current max. [mA]:

7700 mA @ 100Hz @ 105°C

Endurance [h/°C]:

2.000h @ 105°C

Operating Temperature Min. [°C]:

-40 °C

Operating Temperature Max. [°C]:

+105 °C

ROHS:

Yes

pcs

Our Warehouse

7 pcs

Available for immediate delivery

Our Shop in Szeged

1 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_B_018.pdf

Weight:

144.8 g/pcs
