OSY5PAA201A - Sárga LED, d=10mm, Iv=60000mcd, 8° - OPTO SUPPLY
0.5845 €+ VAT
0.7424 € incl. VAT
0.7424 € incl. VAT

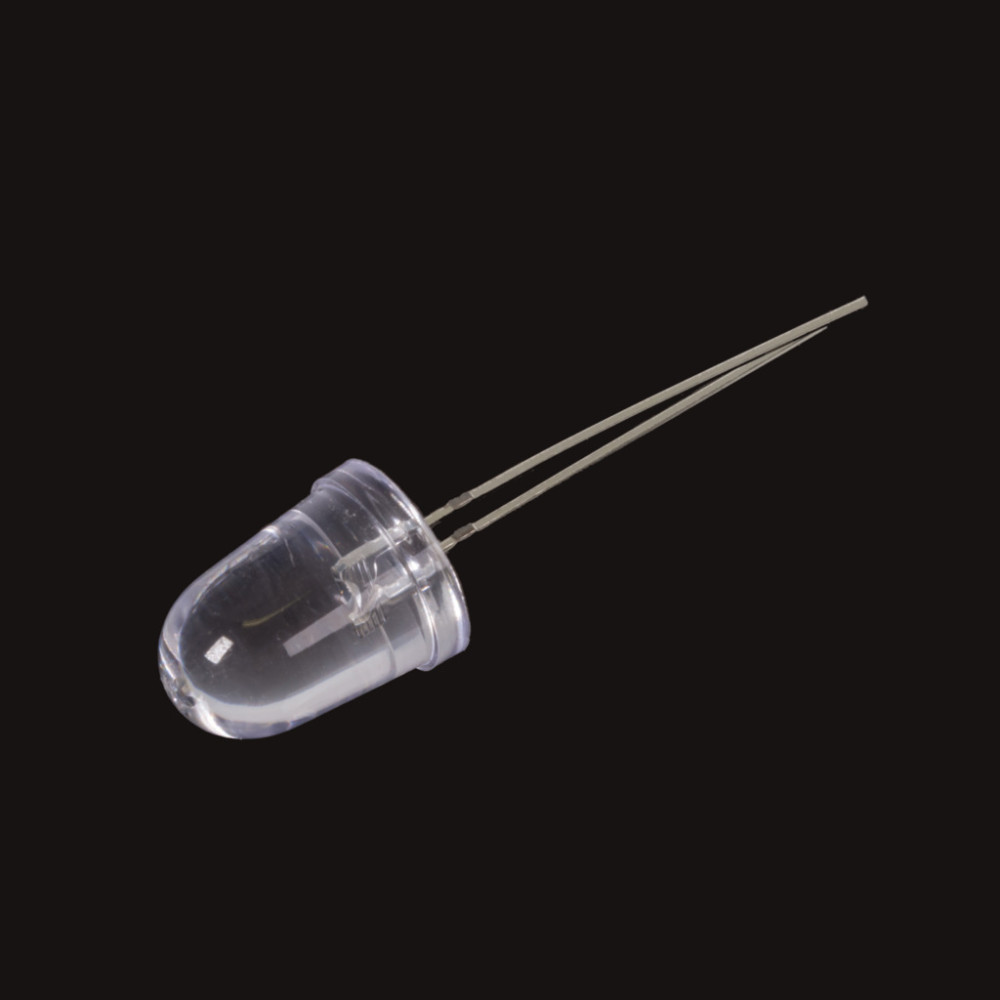

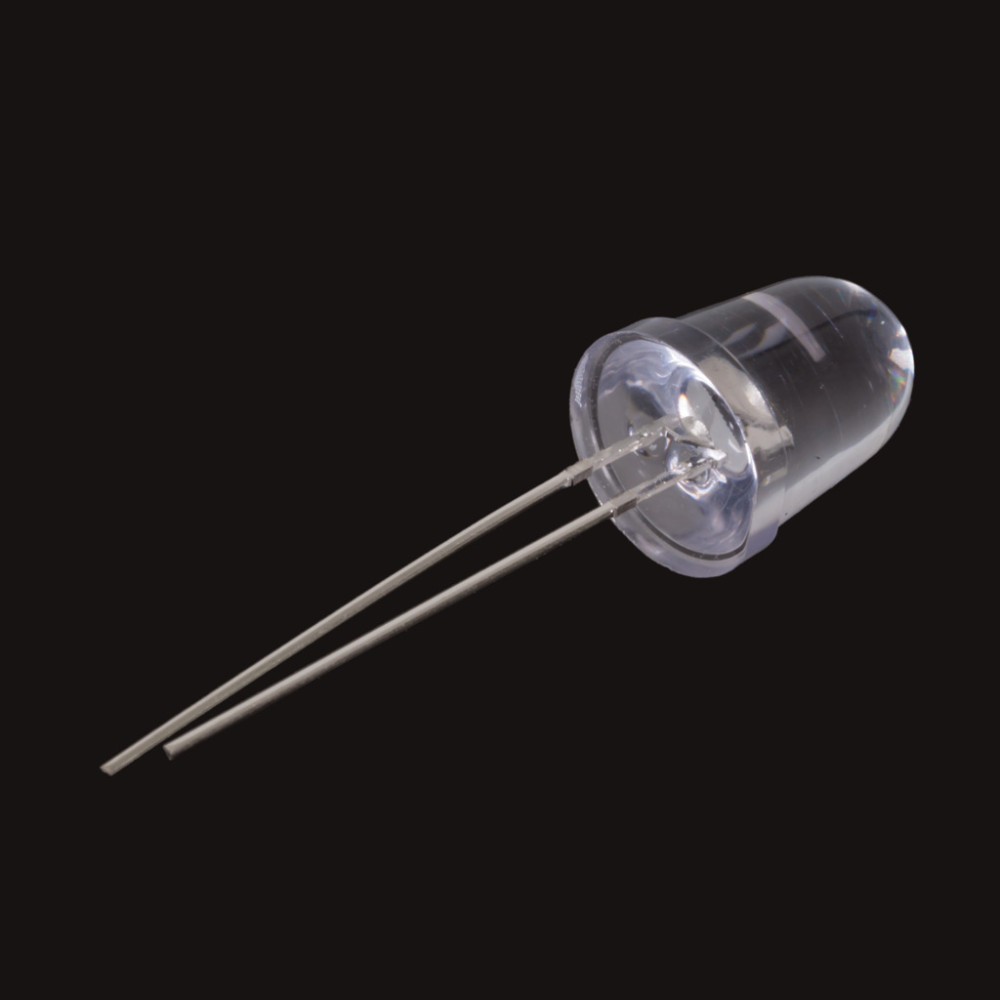

OSY5PAA201A - Sárga LED, d=10mm, Iv=60000mcd, 8° - OPTO SUPPLY
The picture is for illustration purposes only. Please read the product description!
In stock 339 pcs
0.5845 €+ VAT
0.7424 € incl. VAT
0.7424 € incl. VAT
LED, Yellow 10mm, Yellow Iv=60000mcd 8°
Manufacturer code:
OSY5PAA201A
Manufacturer:
Datasheet:
Group:
LEDs
Component Family:
Case Style:
PCB-mountable
Case:
Termination Type:
Through-hole technology
Number of Pins:
2
Colour:
Yellow
External Diameter [mm]:
10 mm
Dominant Wavelength [nm] :
590 nm
Luminous Intensity Iv [mCd @ mA]:
60000 mcd @ 20 mA
Forward voltage Uf [V @ mA]:
2.1 V @ 20 mA
Forward Current If [mA], Nom.:
20 mA
Viewing Angle 2 Theta 1/2 [°]:
8°
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
Yes
