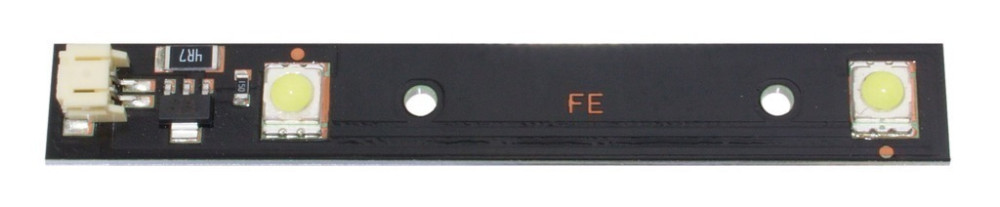

LED, 2x1W White LED-XLAMP 52 lm/LED U=13,2V with Current Generator
Manufacturer code:
FEL-BG1WWDWC
Manufacturer:
Datasheet:
Group:
LEDs
Component Family:
Case Style:
Mountable PCb with connections
Case:
Termination Type:
Solderable
Number of Pins:
2
Colour:
White
External Length [mm]:
107 mm
External Thickness [mm]:
7.1 mm
External Width [mm]:
16 mm
Dominant Wavelength [nm] :
5000..10000 °K
Luminous Intensity Iv [mCd @ mA]:
52 lm/LED @ 350 mA
Forward voltage Uf [V @ mA]:
13.2 V @ 350 mA
Forward Current If [mA], Nom.:
350 mA
Viewing Angle 2 Theta 1/2 [°]:
100°
Operating Temperature Min. [°C]:
-20 °C
Operating Temperature Max. [°C]:
+80 °C
ROHS:
Yes
