TSHA6203 - Lmax=875nm tok:d=5mm nagy teljesítményű infra LED - VISHAY

0.3246 €+ VAT
0.4123 € incl. VAT

TSHA6203 - Lmax=875nm tok:d=5mm nagy teljesítményű infra LED - VISHAY

Name: TSHA6203 - Lmax=875nm tok:d=5mm nagy teljesítményű infra LED - VISHAY
Brand: VISHAY
SKU: 48-05-32
Price: 0.4123 EUR
Availability: InStock

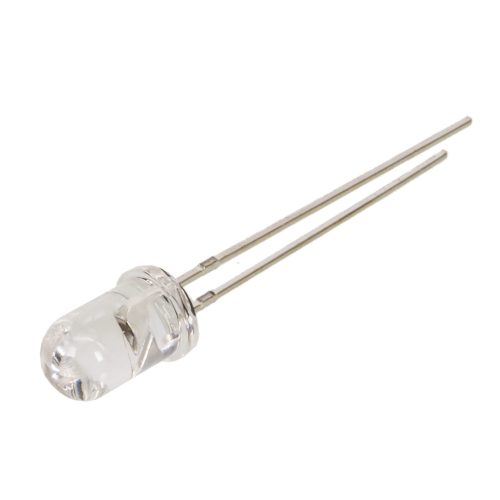

The picture is for illustration purposes only. Please read the product description!

In stock 688 pcs

0.3246 €+ VAT
0.4123 € incl. VAT

Infra LED, Lmax=875nm Case:d=5mm High Power

Manufacturer code:

TSHA6203

Manufacturer:

VISHAY

Datasheet:

tsha6203.pdf

Group:

LEDs - Infrared

Component Family:

LEDs - Infrared

Case Style:

PCB-mountable

Case:

5 mm (T-1 3/4)

Termination Type:

Through-hole technology

Number of Pins:

External Length [mm]:

8.7 mm

External Thickness [mm]:

5.8 mm

External Diameter [mm]:

5 mm

External Width [mm]:

5.8 mm

Dominant Wavelength [nm] :

875 nm

Luminous Intensity Iv [mCd @ mA]:

65 mW/sr @ 100 mA

Forward voltage Uf [V @ mA]:

1.5 V @ 100 mA

Forward Current If [mA], Nom.:

100 mA

Viewing Angle 2 Theta 1/2 [°]:

±12°

Operating Temperature Min. [°C]:

-40 °C

Operating Temperature Max. [°C]:

+85 °C

ROHS:

Yes

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

100

0,24 €

0,31 €

Our Warehouse

688 pcs

Available for immediate delivery

Our Shop in Szeged

0 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Weight:

0.297 g/pcs
