QEE123 - Lmax=890nm, oldalirányú, tok:5.08x4.44mm, 50° infra LED - ONSEMI
1.1023 €+ VAT
1.3999 € incl. VAT
1.3999 € incl. VAT
QEE123 - Lmax=890nm, oldalirányú, tok:5.08x4.44mm, 50° infra LED - ONSEMI
The picture is for illustration purposes only. Please read the product description!
In stock 1802 pcs
1.1023 €+ VAT
1.3999 € incl. VAT
1.3999 € incl. VAT

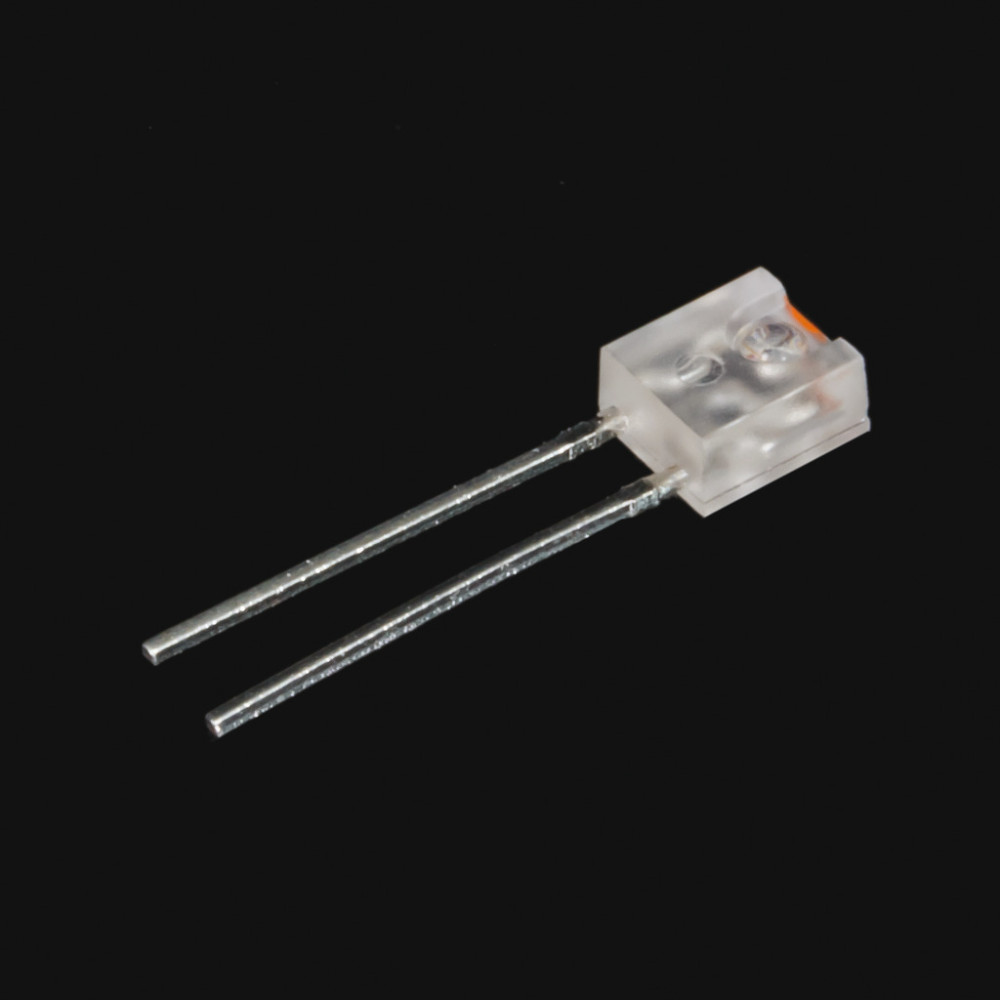

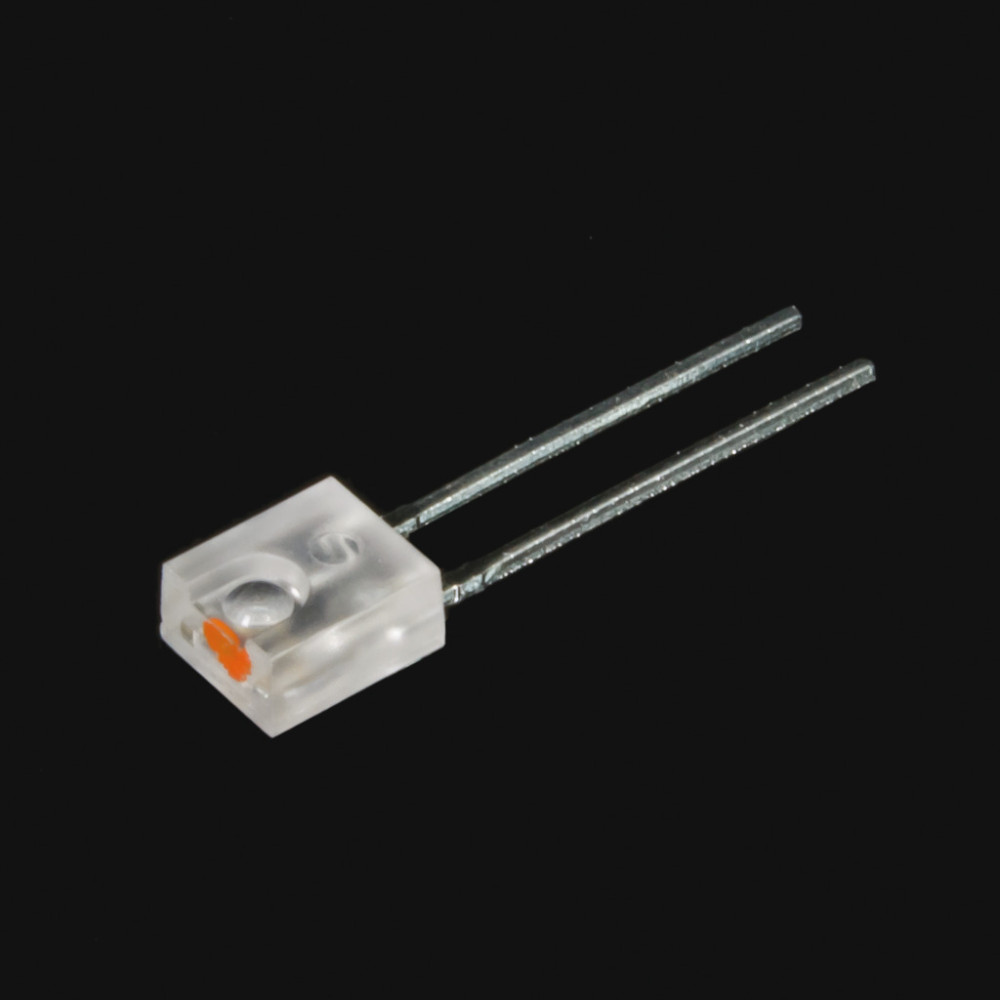

Infra LED, Lmax=890nm, Side-view, Case:5.08x4.44mm, 50°
Manufacturer code:
QEE123
Manufacturer:
Datasheet:
Group:
LEDs - Infrared
Component Family:
Case Style:
PCB-mountable
Case:
Termination Type:
Through-hole technology
Number of Pins:
2
External Length [mm]:
5.08 mm
External Thickness [mm]:
2.54 mm
External Width [mm]:
4.44 mm
Dominant Wavelength [nm] :
890 nm
Luminous Intensity Iv [mCd @ mA]:
9 mW/sr @ 100 mA
Forward voltage Uf [V @ mA]:
1.7 V @ 100 mA
Forward Current If [mA], Nom.:
100 mA
Viewing Angle 2 Theta 1/2 [°]:
±50°
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+100 °C
ROHS:
Yes
pcs
Quantity discount:
Quantity [pcs]
Net price [EUR]
Gross [EUR]
10
0,73 €
0,93 €
100
0,57 €
0,73 €
500
0,52 €
0,66 €
Our Warehouse
1802 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Data
Additional Datasheet:
Weight:
0.136 g/pcs
