TSAL6200 - Lmax=940nm tok:d=5mm nagy teljesítményű, áttetsző kék színű infra LED - VISHAY SEMICONDUCTOR

0.17 €+ VAT
0.2159 € incl. VAT

TSAL6200 - Lmax=940nm tok:d=5mm nagy teljesítményű, áttetsző kék színű infra LED - VISHAY SEMICONDUCTOR

Name: TSAL6200 - Lmax=940nm tok:d=5mm nagy teljesítményű, áttetsző kék színű infra LED - VISHAY SEMICONDUCTOR
Brand: VISHAY SEMICONDUCTOR
SKU: 48-02-98
Price: 0.2159 EUR
Availability: InStock

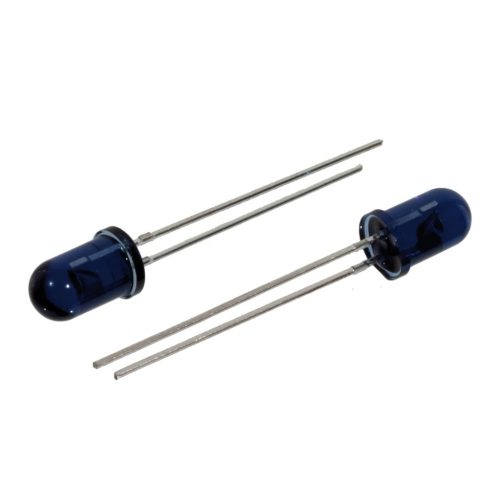

The picture is for illustration purposes only. Please read the product description!

In stock 3489 pcs

0.17 €+ VAT
0.2159 € incl. VAT

Infra LED, Lmax=940nm Case:d=5mm High Power, Transparent Blue Case

Manufacturer code:

TSAL6200

Manufacturer:

VISHAY SEMICONDUCTOR

Datasheet:

tsal6200.pdf

Group:

LEDs - Infrared

Component Family:

LEDs - Infrared

Case Style:

PCB-mountable

Case:

5 mm (T-1 3/4)

Termination Type:

Through-hole technology

Number of Pins:

External Length [mm]:

8.7 mm

External Thickness [mm]:

5.8mm

External Diameter [mm]:

5 mm

External Width [mm]:

5.8mm

Dominant Wavelength [nm] :

940 nm

Luminous Intensity Iv [mCd @ mA]:

60 mW/sr @ 100 mA

Forward voltage Uf [V @ mA]:

1.35 V @ 100 mA

Forward Current If [mA], Nom.:

100 mA

Viewing Angle 2 Theta 1/2 [°]:

±17°

Operating Temperature Min. [°C]:

-40 °C

Operating Temperature Max. [°C]:

+85 °C

ROHS:

Yes

pcs

Quantity discount:

Quantity [pcs]

Net price [EUR]

Gross [EUR]

0,12 €

0,15 €

Our Warehouse

3482 pcs

Available for immediate delivery

Our Shop in Szeged

7 pcs

In Stock (or in 2 days from our warehouse the available quantity)

Data

Additional Datasheet:

RETKAT2012_G_002.pdf

Weight:

0.304 g/pcs
