TSAL4400 - Lmax=950nm tok:d=3mm infra LED - VISHAY SEMICONDUCTOR
0.1519 €+ VAT
0.193 € incl. VAT
0.193 € incl. VAT
TSAL4400 - Lmax=950nm tok:d=3mm infra LED - VISHAY SEMICONDUCTOR

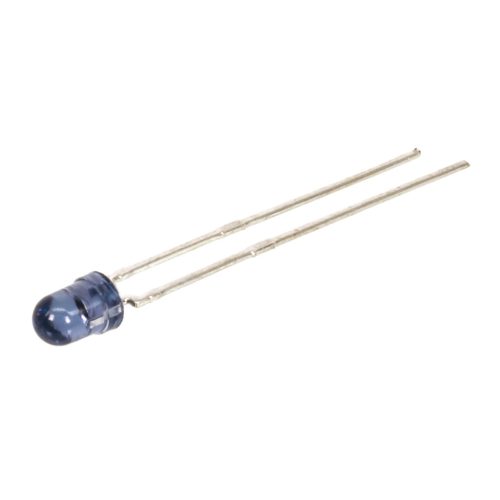

The picture is for illustration purposes only. Please read the product description!
In stock 91 pcs
0.1519 €+ VAT
0.193 € incl. VAT
0.193 € incl. VAT
Infra LED, Lmax=950nm Case:d=3mm
Manufacturer code:
TSAL4400
Manufacturer:
Datasheet:
Group:
LEDs - Infrared
Component Family:
Case Style:
PCB-mountable
Case:
Termination Type:
Through-hole technology
Number of Pins:
2
External Length [mm]:
4.5 mm
External Thickness [mm]:
3.2 mm
External Diameter [mm]:
3 mm
External Width [mm]:
3.2 mm
Dominant Wavelength [nm] :
940 nm
Luminous Intensity Iv [mCd @ mA]:
30 mW/sr @ 100 mA
Forward voltage Uf [V @ mA]:
1.35 V @ 100 mA
Forward Current If [mA], Nom.:
100 mA
Viewing Angle 2 Theta 1/2 [°]:
±25°
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
Yes
pcs
Quantity discount:
Quantity [pcs]
Net price [EUR]
Gross [EUR]
100
0,12 €
0,15 €
Our Warehouse
91 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Data
Weight:
0.117 g/pcs
