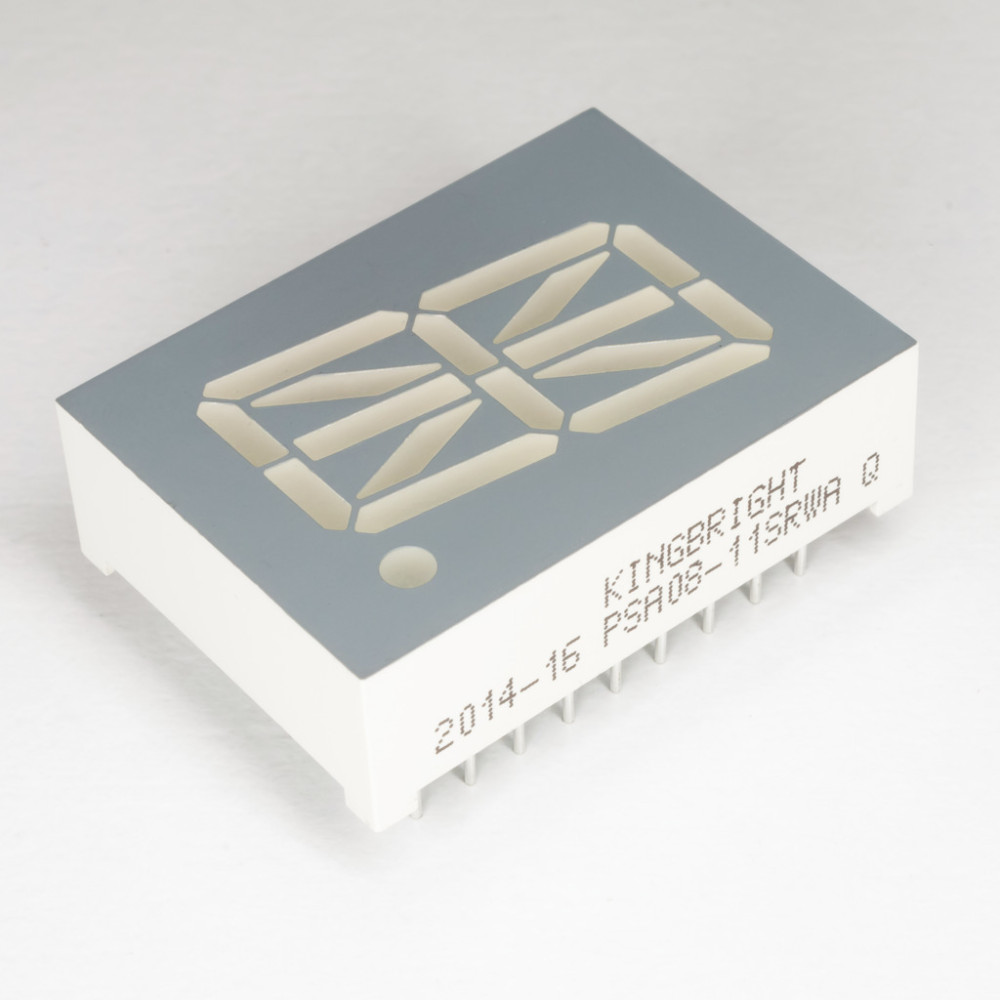

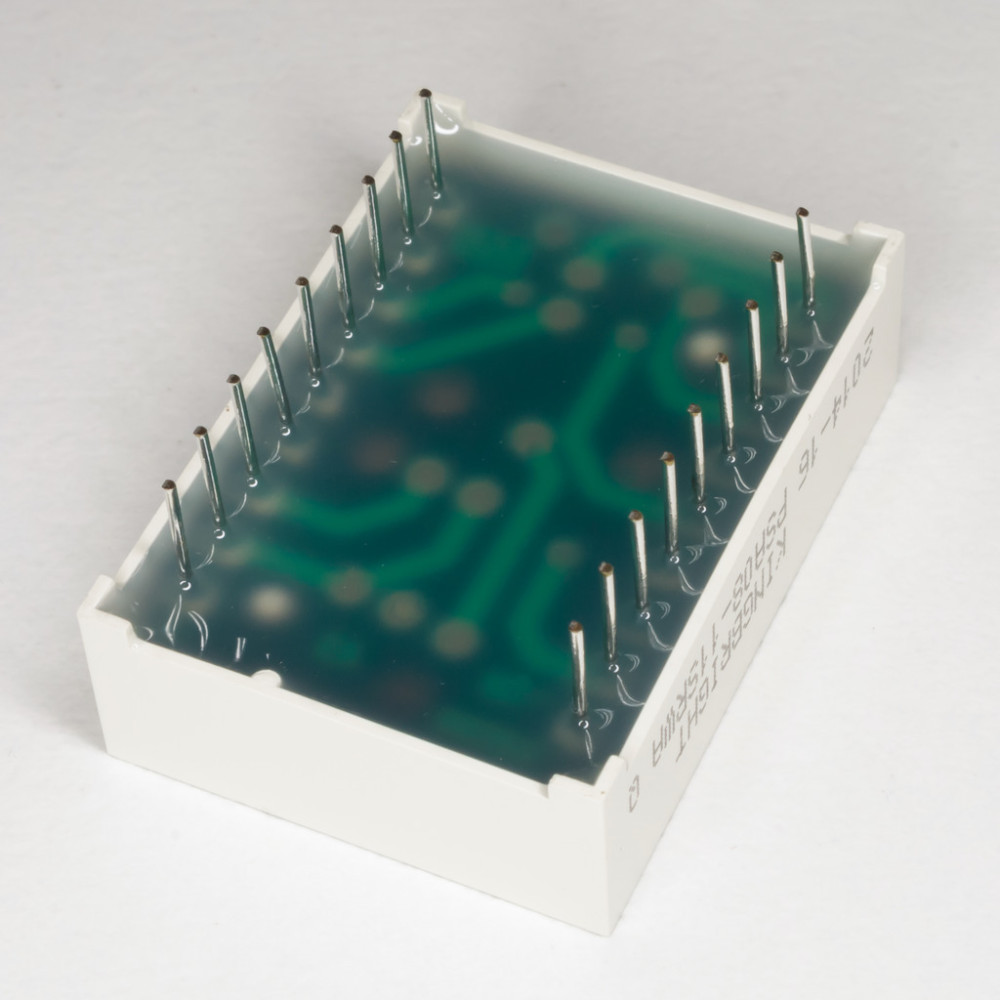

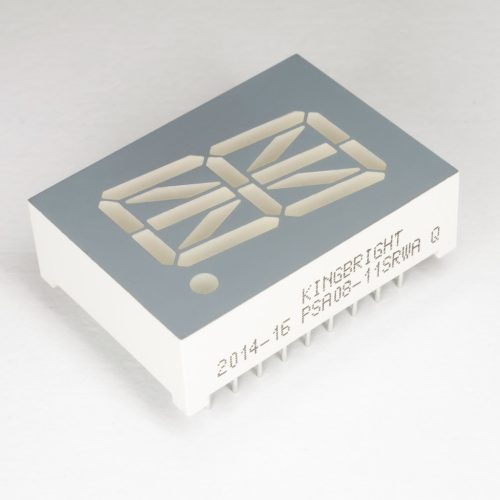

PSA08-11SRWA - red, 16-segment LED display, 20 mm, common anode - KINGBRIGHT
2.7456 €+ VAT
3.4869 € incl. VAT
3.4869 € incl. VAT
PSA08-11SRWA - red, 16-segment LED display, 20 mm, common anode - KINGBRIGHT
The picture is for illustration purposes only. Please read the product description!
In stock 11 pcs
2.7456 €+ VAT
3.4869 € incl. VAT
3.4869 € incl. VAT
16-Segment Display, 20mm, Common Anode, Red
Manufacturer code:
PSA08-11SRWA
Manufacturer:
Datasheet:
Group:
LED-displays
Component Family:
Case Style:
PCB-mountable
Case:
Termination Type:
Through-hole technology
Number of Pins:
18
Colour:
Red
External Length [mm]:
27.7 mm
External Thickness [mm]:
8.5 mm
External Width [mm]:
20 mm
Dominant Wavelength [nm] :
640 nm
Character Size:
20.32 mm
Character Type:
1 x 16-segment, common anode
Luminous Intensity/Segment Iv [mCd @ mA]:
27 mCd @ 10 mA
Nyitóirányú feszültség/Segment Uf [V @ mA]:
1.85 V @ 20 mA
Forward Current If [mA], Nom.:
20 mA
Operating Temperature Min. [°C]:
-40 °C
Operating Temperature Max. [°C]:
+85 °C
ROHS:
Yes
pcs
Our Warehouse
11 pcs
Available for immediate delivery
Our Shop in Szeged
0 pcs
In Stock (or in 2 days from our warehouse the available quantity)
Package deals
Customers also bought this
Data
Additional Datasheet:
Weight:
5.21 g/pcs
